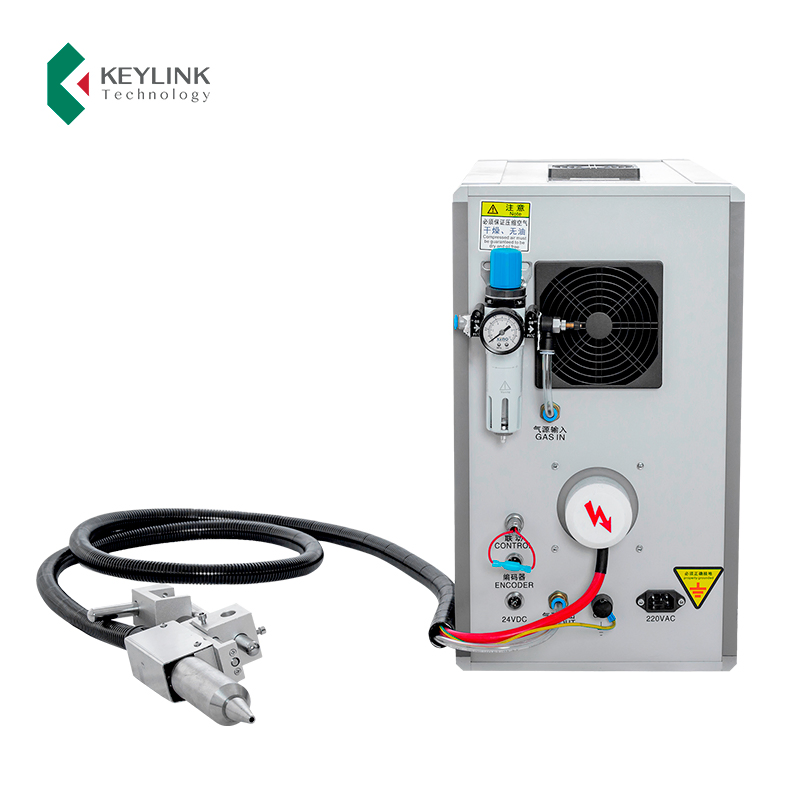

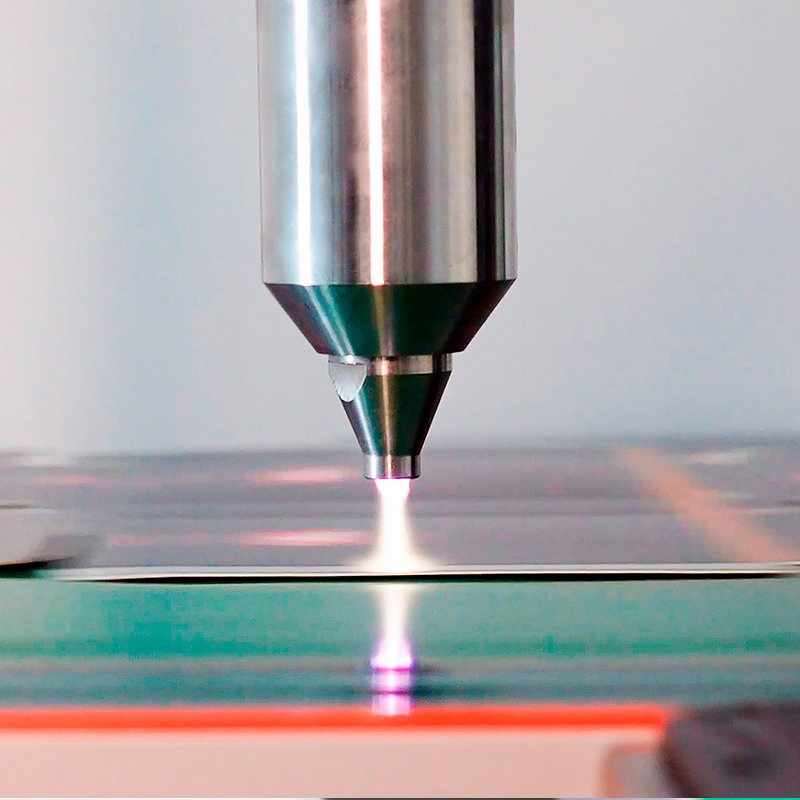

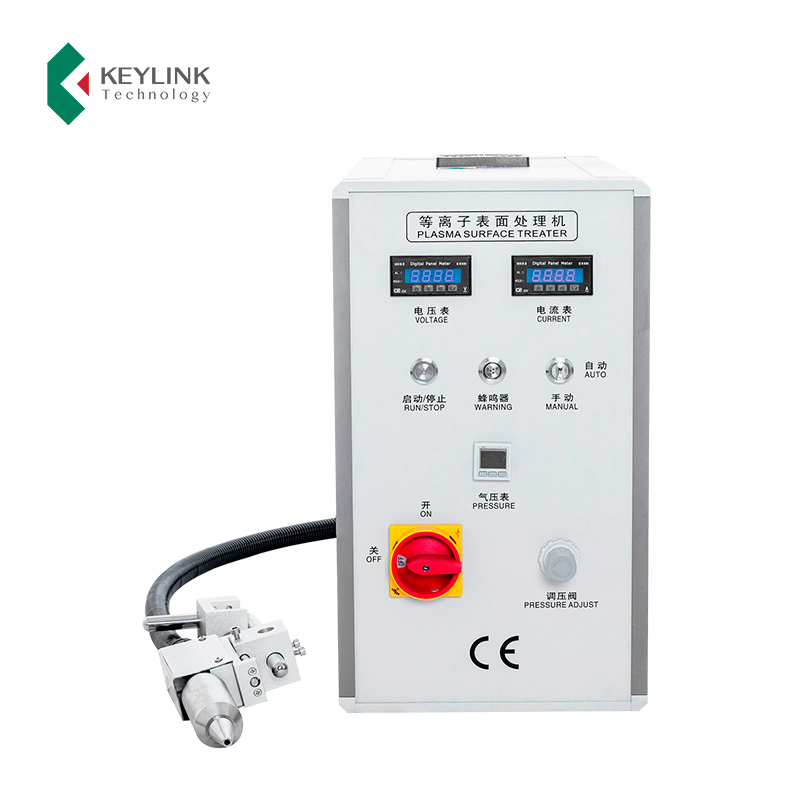

Direct Spray Plasma Treatment Equipment, Plasma Cleaning of Plastic Surface

Customization: Available
After-sales Service: Online Technical Support
Warranty: One Year

Product Description

Overview
Model NO.:PL-5010H-OUT
Type:Clean Machine
Voltage:220V
Color:White

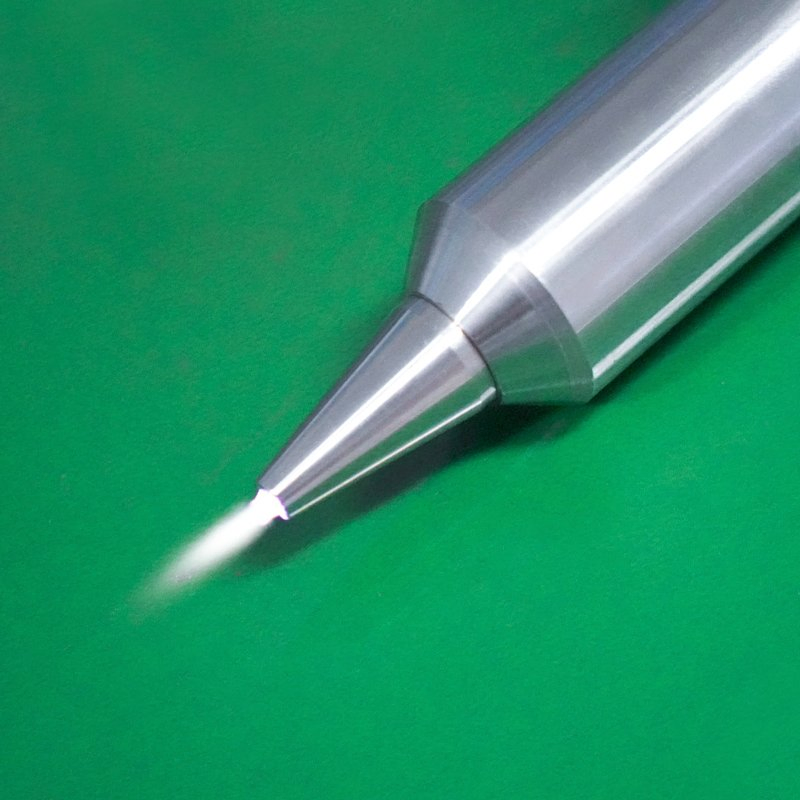

Gun:Direct Spray
Function:Improve Adhesion of Surface

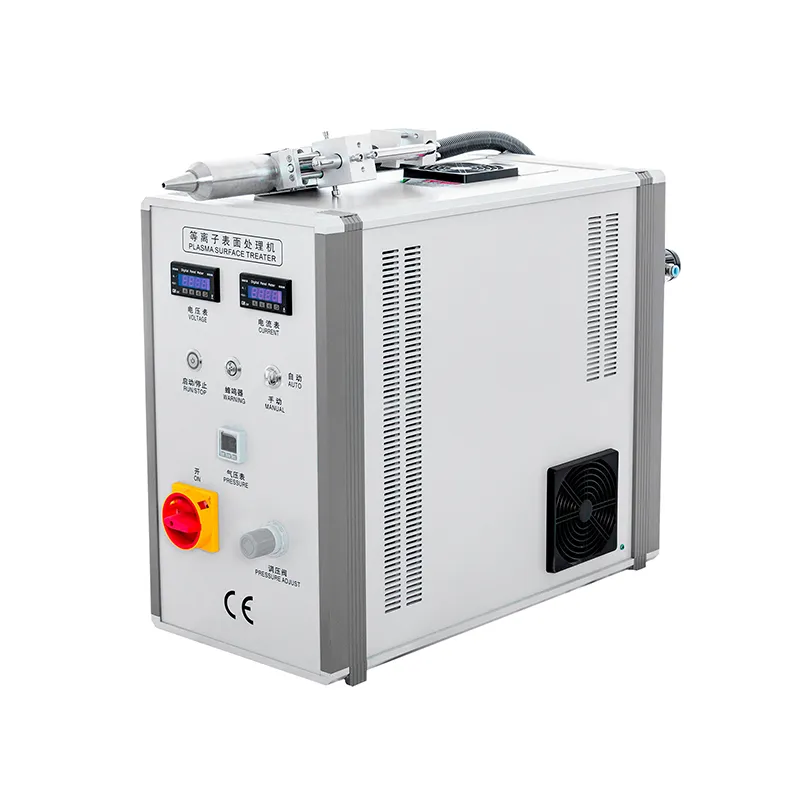

Product Name:Plasma Surface Treater
Origin:China
HS Code:8479899990

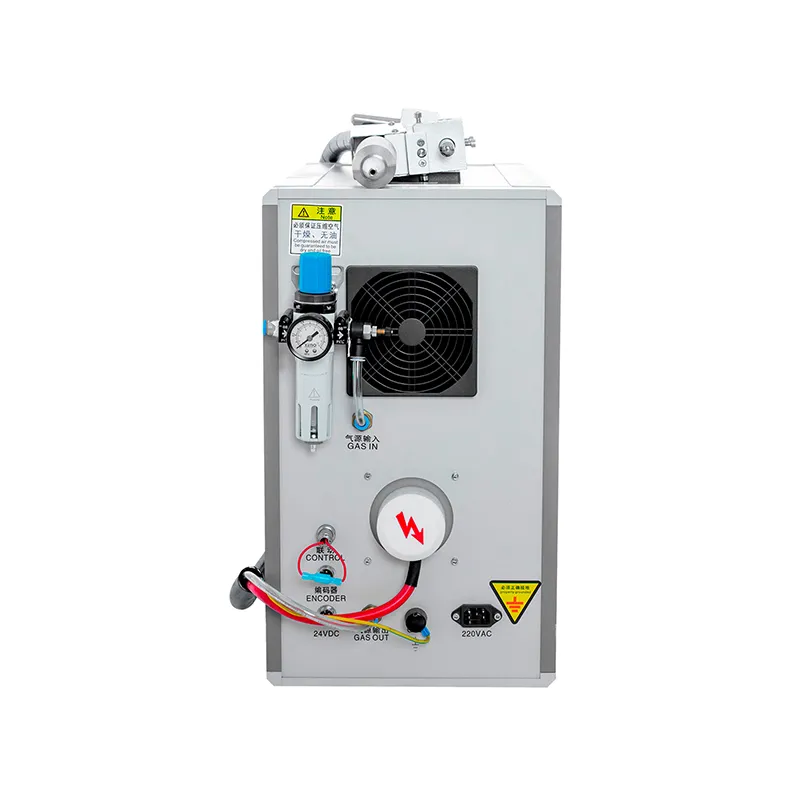

Plasma Treatment Equipment

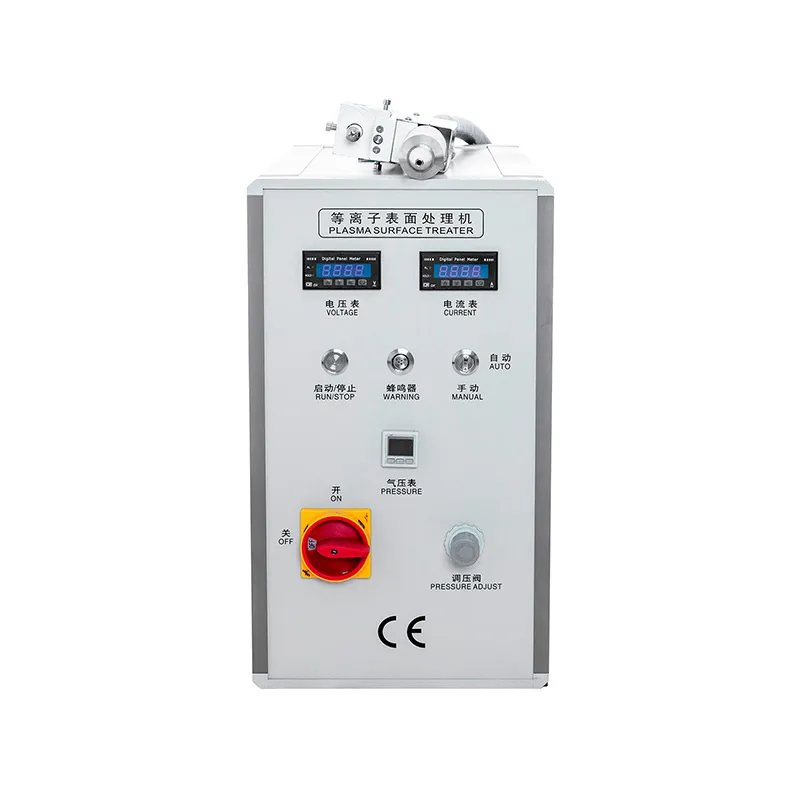

Plasma Cleaning
Surface Treater
Product Parameters
Technical Specifications Standard Values
Interface Display Three and a half LED digital tube
Rated Supply Voltage AC220V ±10%
Plasma Output Power 1000VA
Input Current 4.0-6.0A
Supply Frequency 20kHz
Air Source Requirement External air source (gas consumption 50L/min)
Air Source Input Pressure ≥0.6Mpa
Cleaning Height 5-15mm
Treatment Width ≤13mm
Net Weight 21kg
Detection Function Air pressure, overtemperature, undercurrent detection

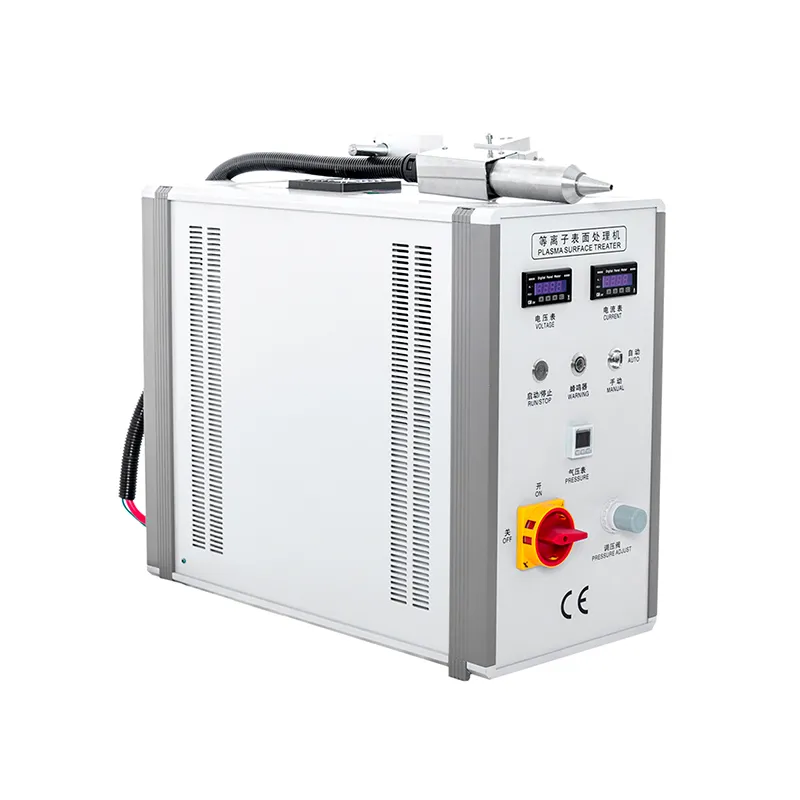

Technical Drawing
Detailed Description
What is Plasma?
Plasma is a dynamic state of matter, representing a high-energy phase distinct from solid, liquid, and gas. Energy infusion allows the transition from solid or liquid to gas, and further energy input through a discharge process creates plasma. Electrons detach from atomic orbitals, breaking chemical bonds, and forming free electrons, ions, and molecules.
Key Applications
  • Automotive & Aerospace: Car headlights, EPDM profiles, control devices, and aircraft components.
  • Electronics: Mobile phones, flat screens, displays, microphones, and computers.
  • Packaging: Cardboard packaging, bottle caps, plastic films, and wet labeling.
  • Medical & Sterilisation: Operating instruments, implants, cardiac pacemakers, and catheters.
  • Consumer Goods: Solar panels, window frames, furniture edges, and sports equipment.
Production & Quality

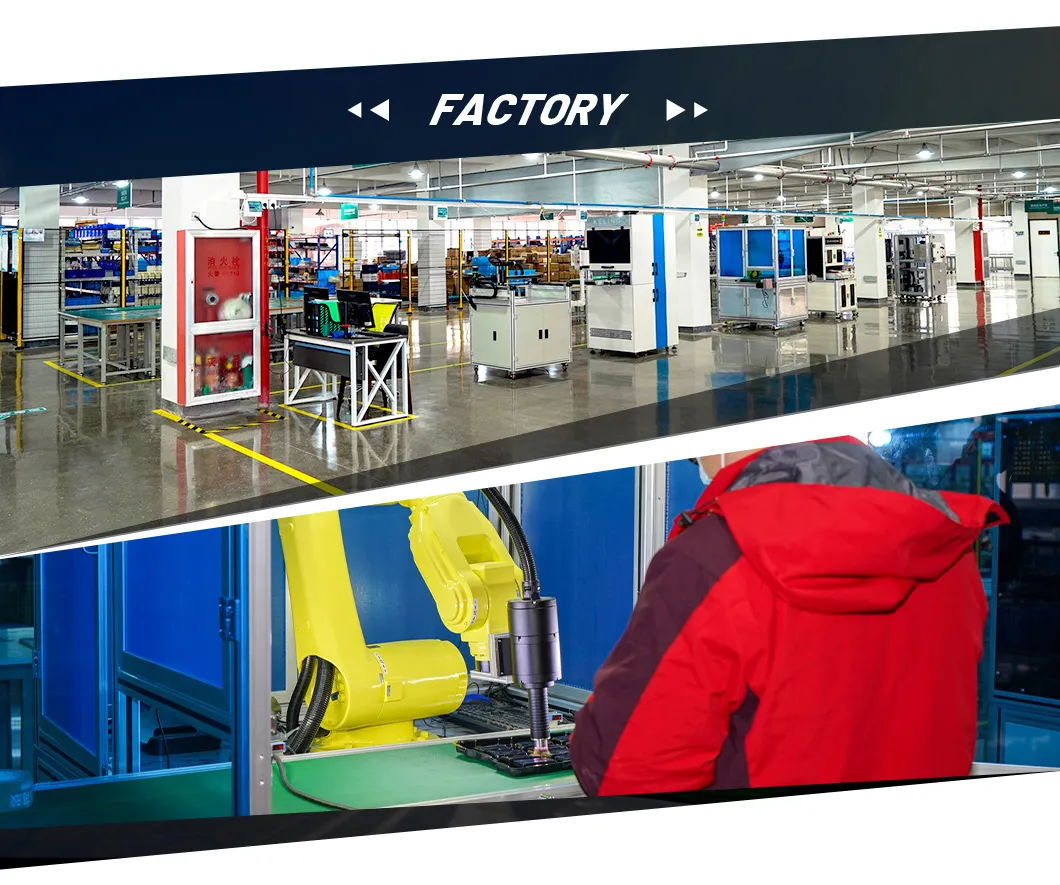

Workshop

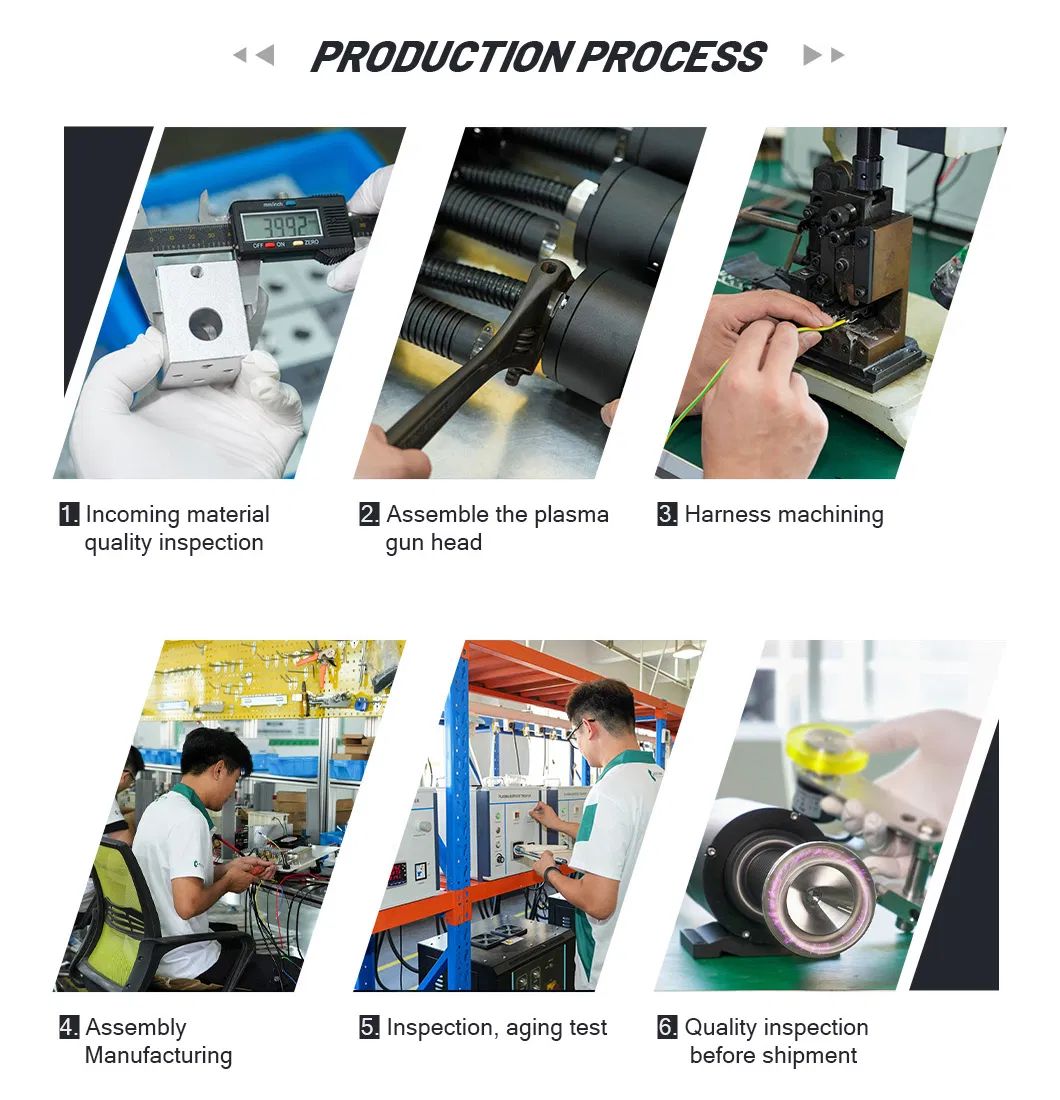

Facility
Certifications
Certificates
Packaging & Logistics
Packaging
Frequently Asked Questions
1. What is the typical lead time for production?
Lead time varies by order size. For small to medium orders (10-20 units), it is approximately 3-4 workdays. We prioritize urgent deadlines whenever possible.
2. Can I customize machine configurations?
Yes, customization is available. We can tailor machine configurations, spare parts, and accessories such as nozzles or cable lengths based on your technical requirements.
3. What are the standard payment terms?
We generally require a 50% deposit upon order confirmation, with the remaining balance due before shipment via SWIFT transfer.
4. What kind of after-sales technical support is available?
We provide comprehensive support including remote troubleshooting via video/email, quick access to spare parts, and detailed maintenance documentation.
5. How are the products packaged for international shipping?
All machines are securely packed in professional wooden cases to ensure maximum protection during long-distance maritime or air transit.
6. Does the equipment include safety detection functions?
Yes, the system includes integrated air pressure detection, overtemperature protection, and undercurrent/overcurrent alarms for operational safety.
