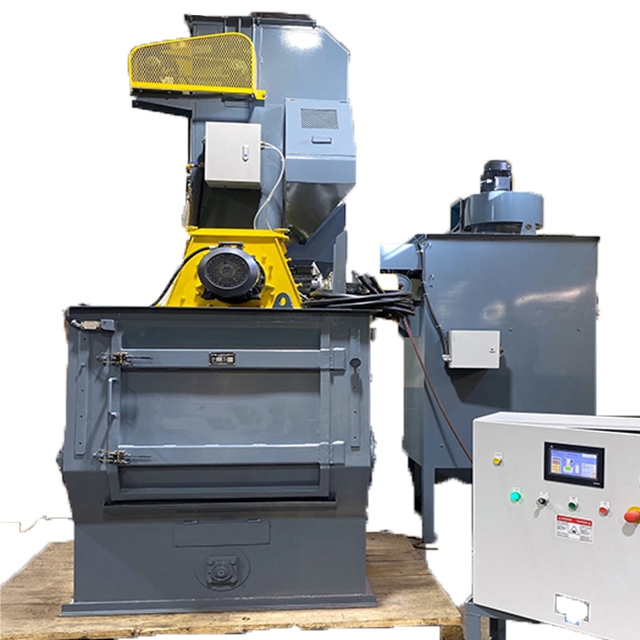

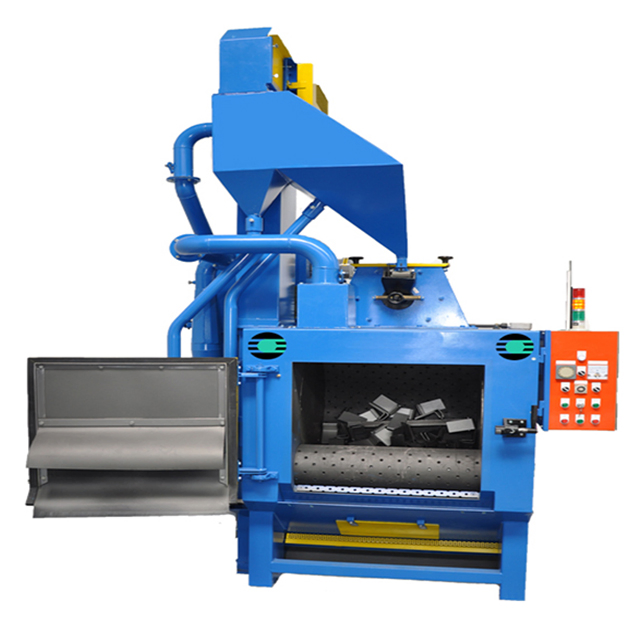

Customized Automatic Q326 Surface Roughening Tumble Type Cleaning Shot Blast Machine

Customization: Available
Warranty: 1 Year
Application: Surface Treatment

Product Description

Specifications & Basic Info
Fuel:Electric
Type:Roller Conveyor Type
Cleanliness:High Cleanliness
Automation:Automatic
Certification:CE, CB, ETL, RoHS, UR
Feature:Rust / Corrosion Proof
Condition:New
Machinery Test:Provided
Surface Finish:SA2.5 to SA3.0
Cleaning Type:Shot Blasting
PLC:Siemens / Omron
Dust Collector:Cartridge/Bag Type
Product Description
Tumble Type Shot Blast Machine

The rubber tumblast shot blast machines are the ideal way to clean and finish batches of components such as castings and small fabrications. These machines are No-Pit design, ensuring easy installation and operation. All models are self-contained and include abrasive reclaim systems, separators, and dust collectors.

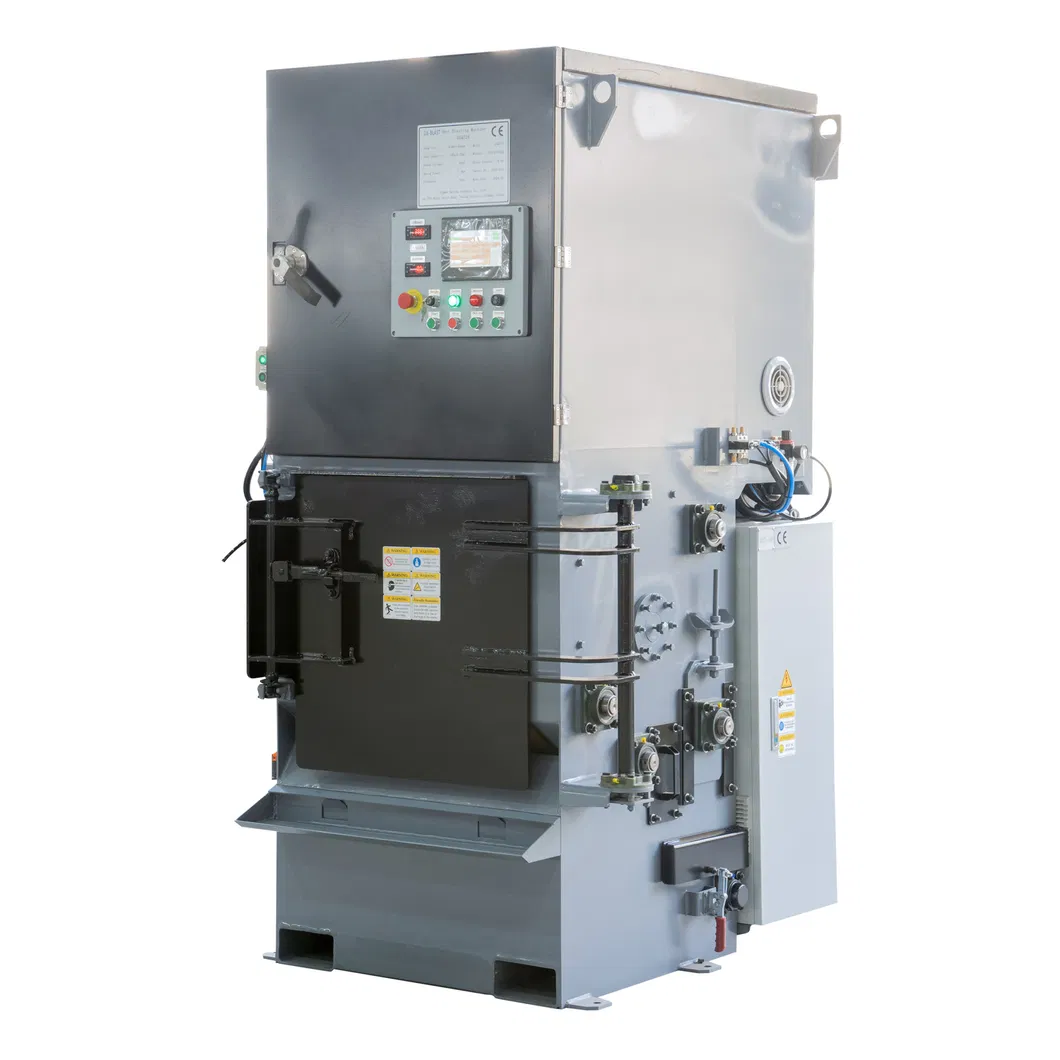

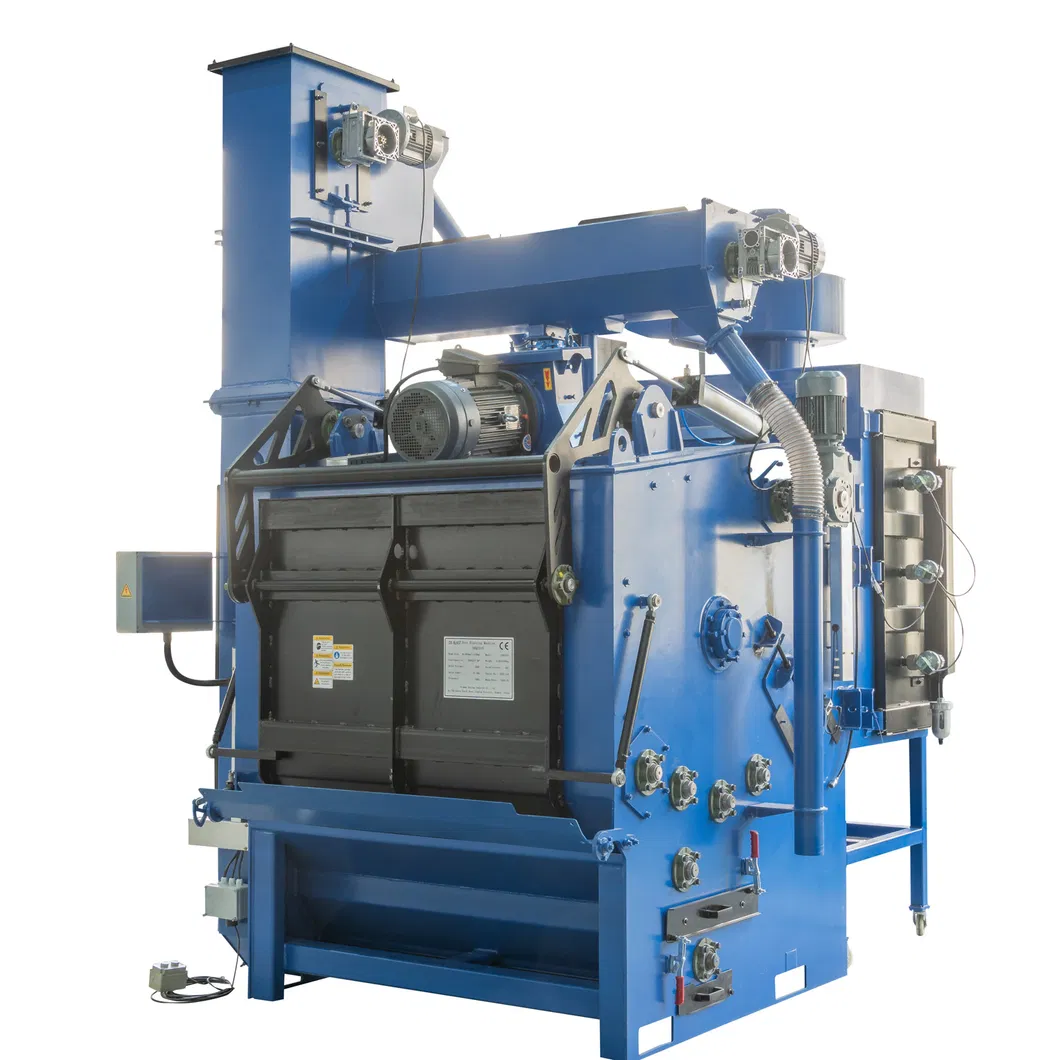

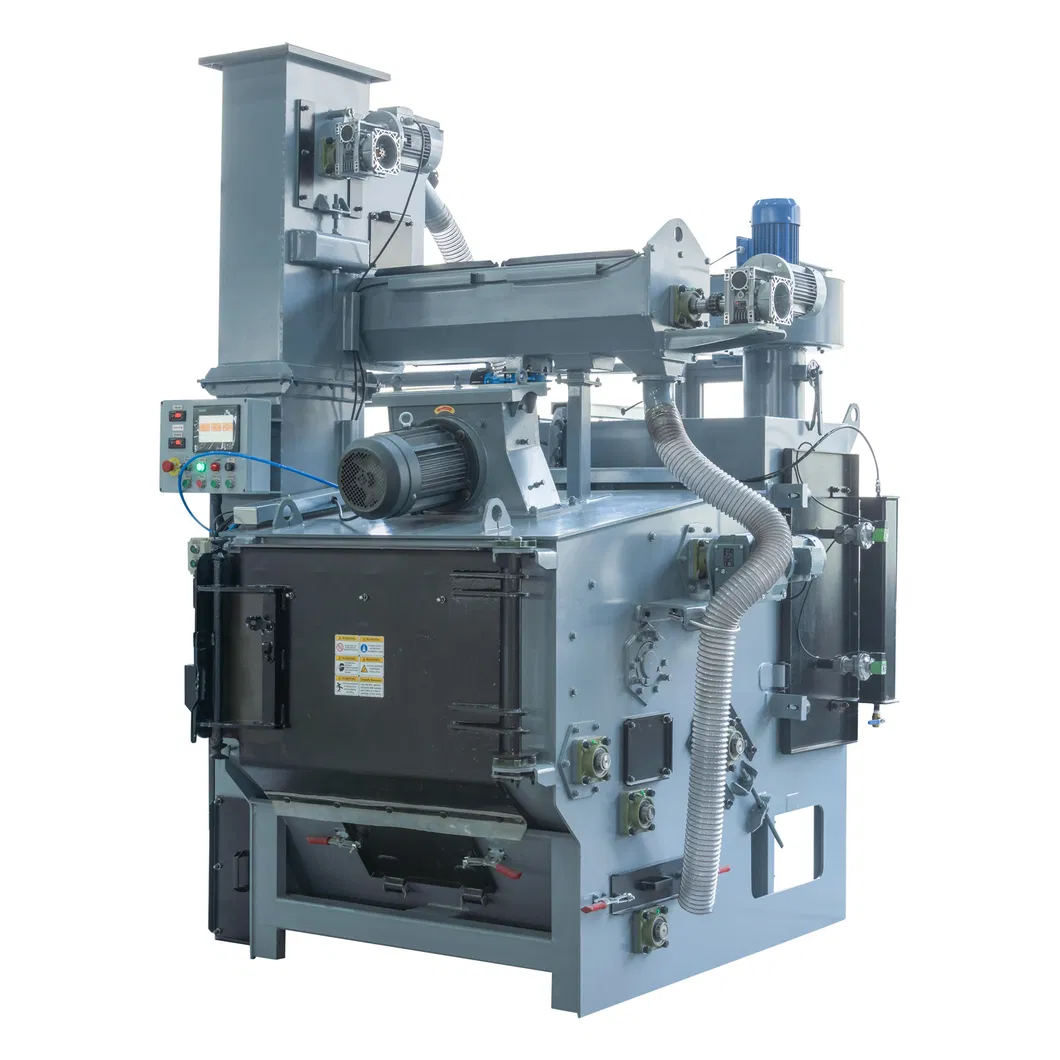

Machine Detail 1 Machine Detail 2 Machine Detail 3

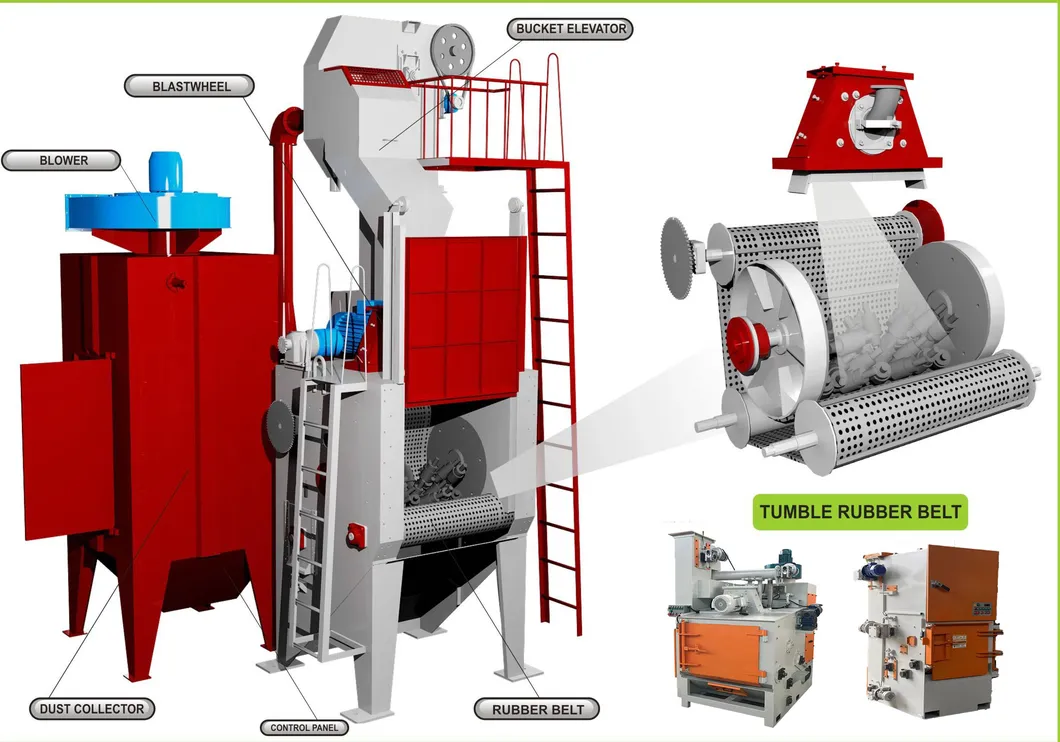

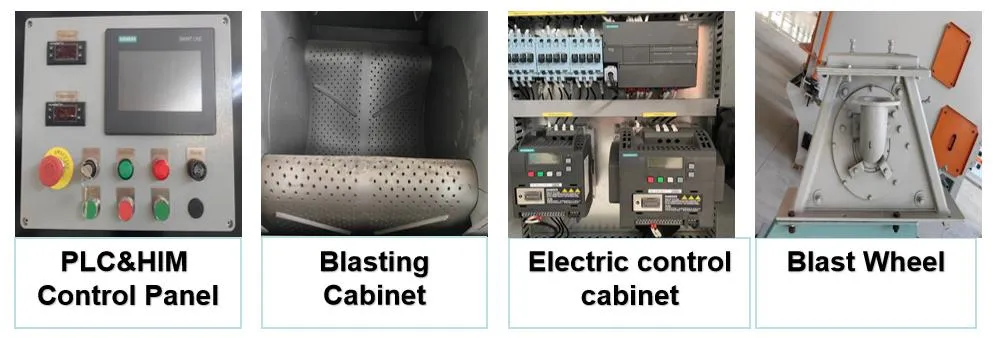

Technical Drawing Feature Overview
Product Application

Tumblast machines are designed for the following applications:

  • Desanding and decoring of castings
  • Descaling of castings, forgings, and heat-treated parts
  • Shot peening (without process security)
  • Deburring of plastic and rubber parts

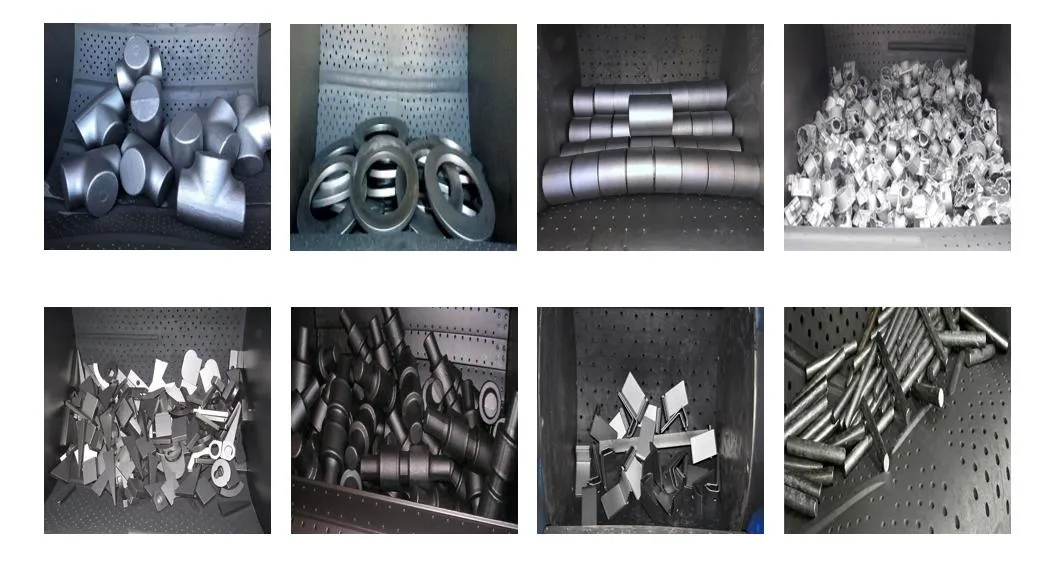

Application View
Model Details 324 326 3210
MAX. Loading Weight 80KG 200kg 500kg
MAX. Worksize weight 5kg 10kg 25kg
End Disk Diameter φ400mm φ600mm φ1000mm
End Disk Rotation Rate 3.6rpm 3.6rpm 3.6rpm
Production Capacity 250-400kg/h 600-1200kg/h 2000-2800kg/h
Blast Wheel Power 4kw 7.5KW 11KW
Total Power 7KW 12.7kw 23kw

Our machines include standard models and customized units designed specifically for your requests.

Production Display
Factory 1 Factory 2
Factory 3

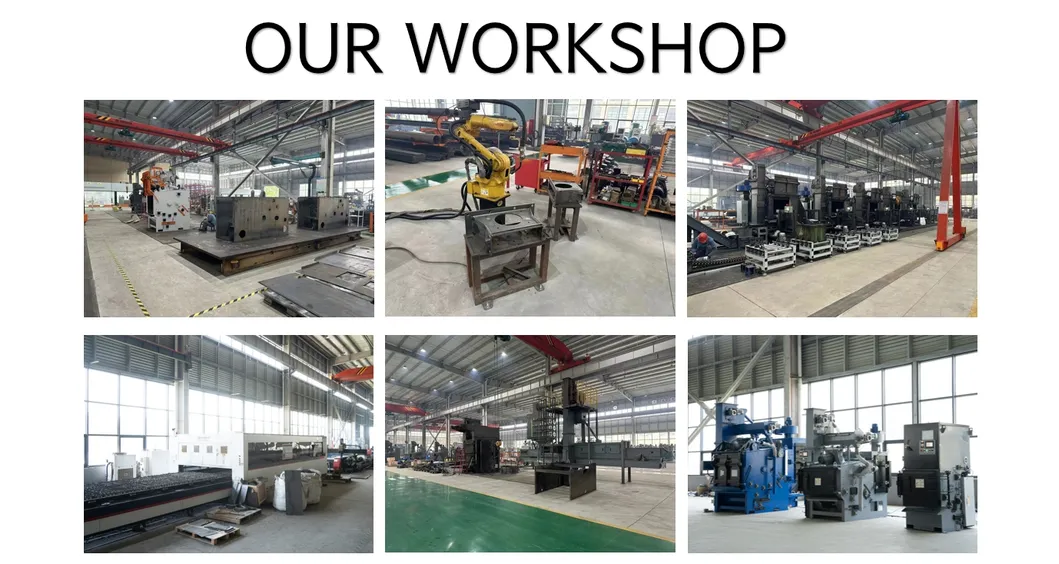

Factory 4 Factory 5
Frequently Asked Questions
How to choose the correct blast machine type?
The choice depends on your work-piece size, material, and required productivity levels.
What kind of abrasive is used for the shot blasting machine?
Common abrasives include steel shot, steel grit, cut wire shot, and stainless steel shot.
What is the quality warranty period?
We provide a 1-year warranty along with long-term after-sales technical support.
Is a foundation pit essential for installation?
This depends on the machine size and your workshop height; many models are designed to be pit-less.
How many workers are needed to operate the machine?
The system is designed for automatic operation and generally requires only 1 operator.
Do you provide installation assistance?
Yes, we provide installation tools and training for operators to ensure smooth performance.
