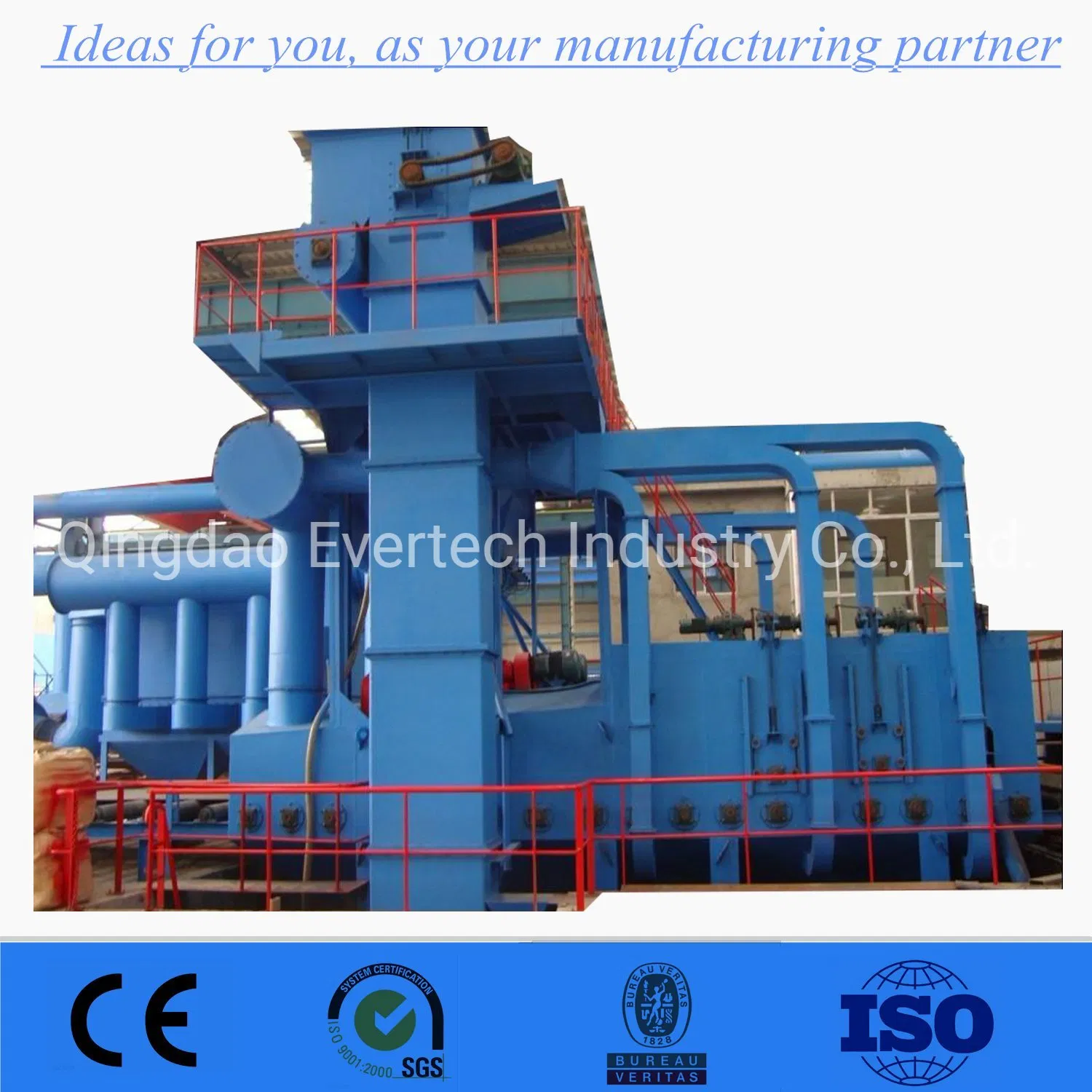

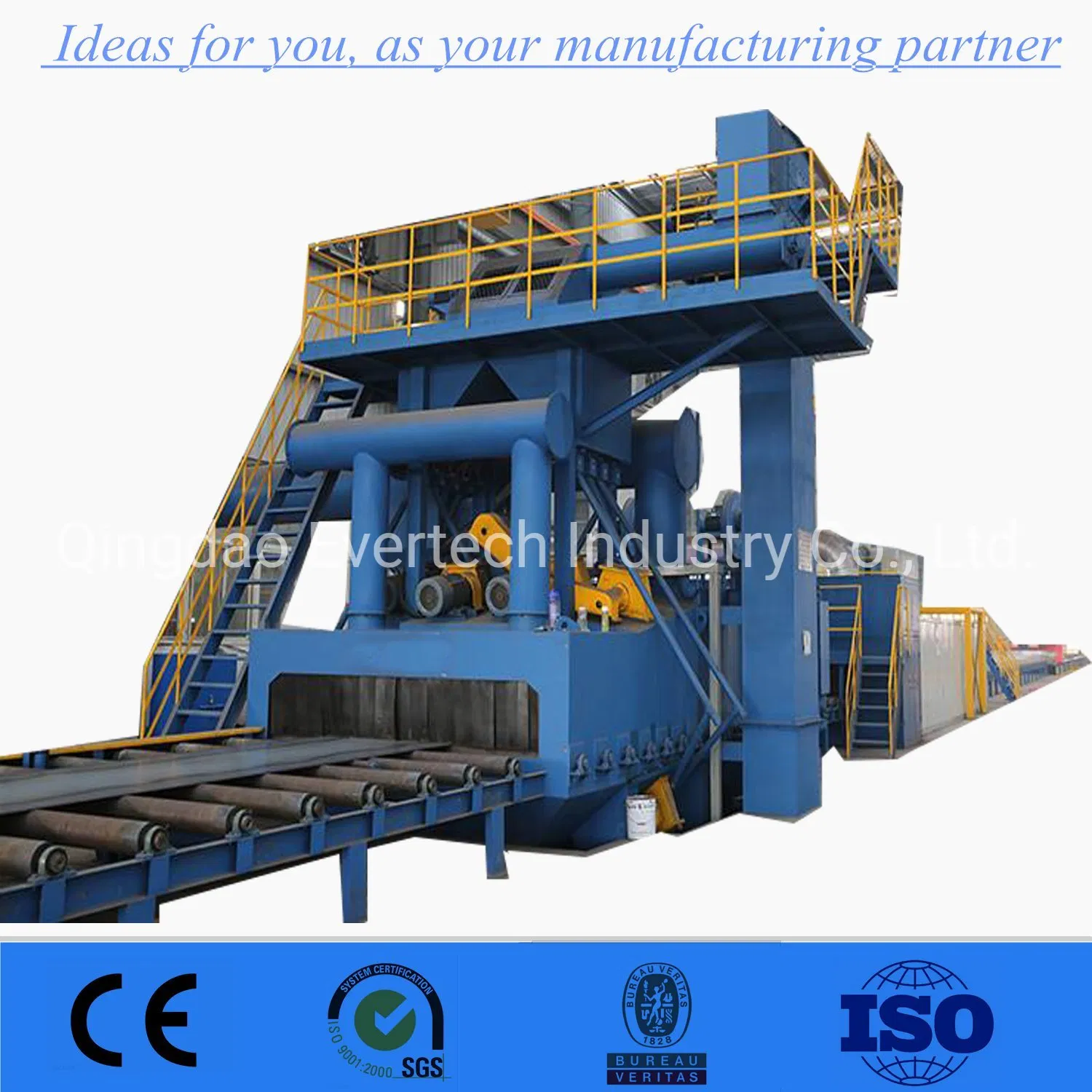

China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line

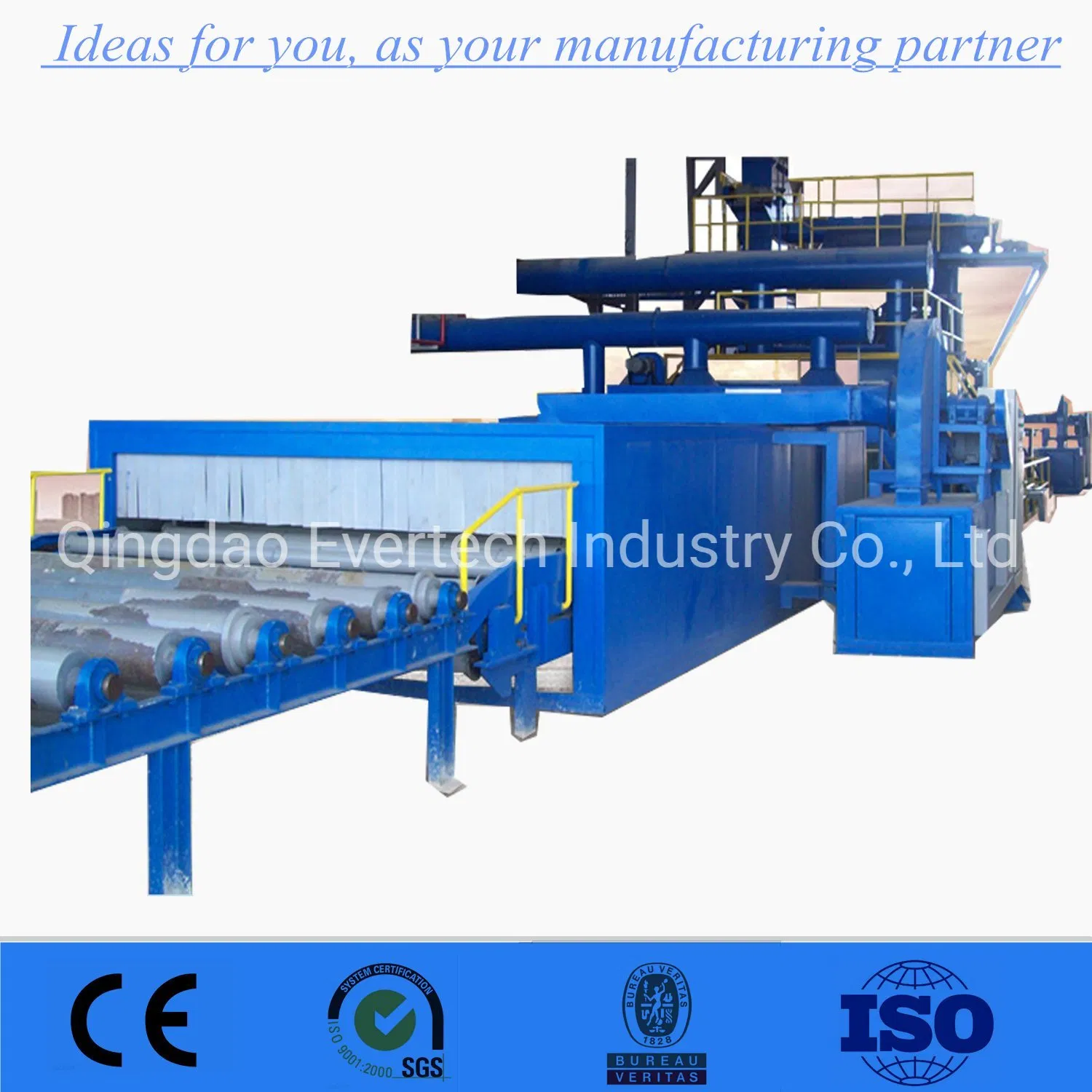

China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line

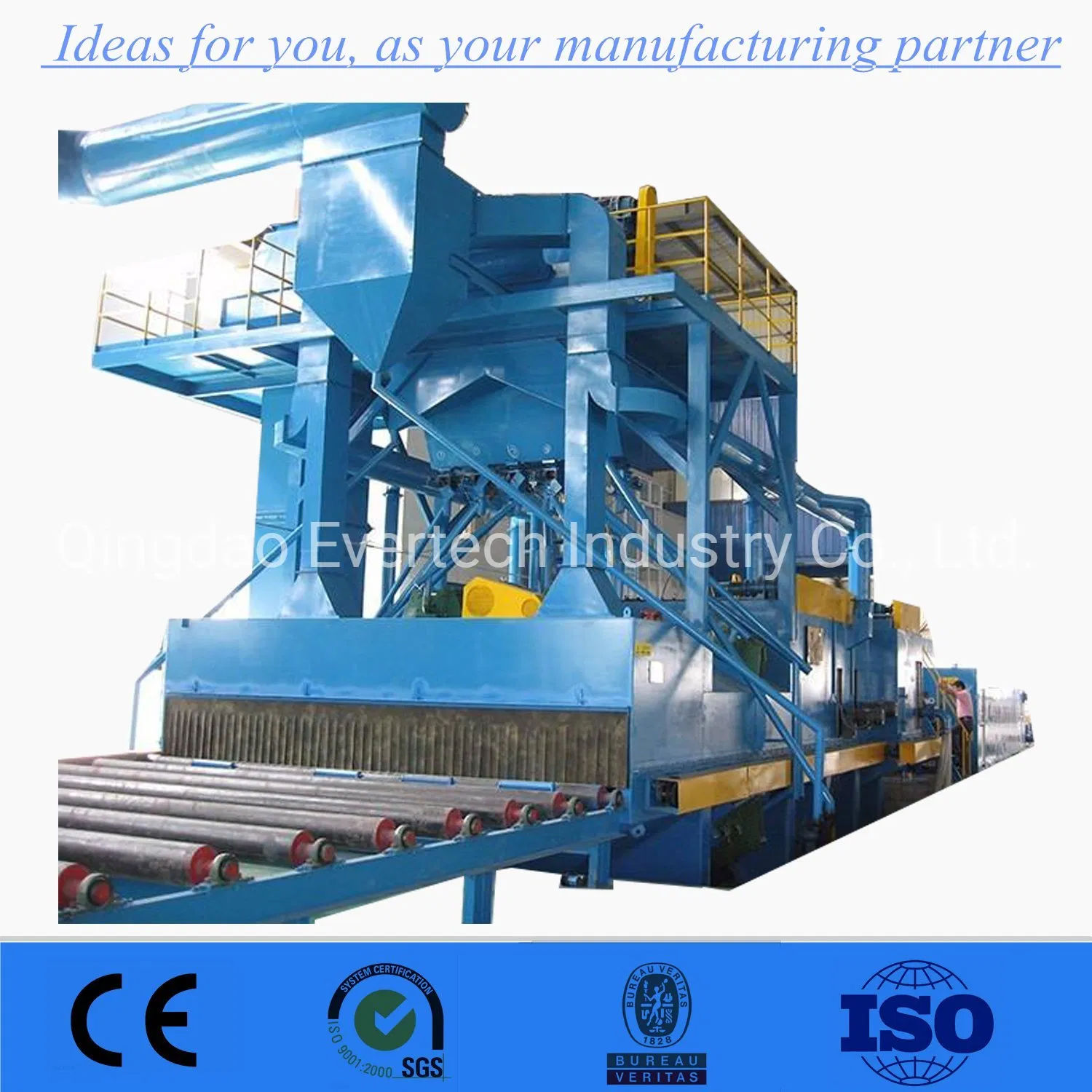

China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line
China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line
China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line
1 / 5
China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line
China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line
China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line
China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line
China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line

China Steel Plate Preservation Line / Steel Plate Shot Blasting and Painting Line

Customization: Available
After-sales Service: Video Technical Support, Online Support
Warranty: 2 Years
Send Inquiry

Product Description

Technical Specifications

Model NO.
ETPL
Application
Blasting & Painting Steel Plate, Profiles, Bars
Fuel
Electric
Type
Preservation Lines
Cleanliness
High Cleanliness (SA2.5-3.0)
Automation
Automatic
Running Speed
2-6m/Min
Blast Media
Shot Steel / Shot Grit / Wire Cut
Control System
Siemens or Omron PLC
Chamber Material
Mn13 High Manganese Steel
Cleaning Method
Brush + Reclamation + Blower
Production
2 sets/Month

1. System Description

On the preservation line, sheets and profiles are thoroughly blast cleaned and provided with a temporary corrosion protection coating. Along with the external transportation unit, the preservation line consists of a pass-through blasting and painting machine, a painting unit, and a drying tunnel with its associated slat conveyor.

Typical Plate Dimensions: Widths up to 2500mm, thickness from 5mm to 1000mm, and lengths from 2000mm up to 12000mm.

2. Application

This equipment is suitable for processing steel plates, H-beams, I-beams, steel pipes, and other regular-shaped steel workpieces.

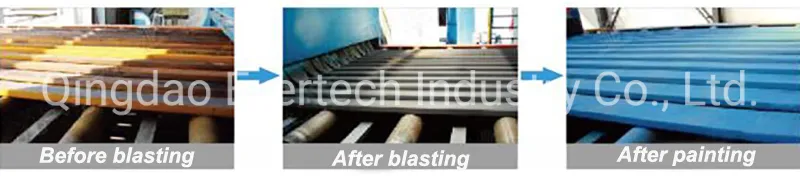

Steel Plate Preservation Line Application

3. Included Equipment

  • Cross transfer conveyor & Inlet roller conveyor
  • Roller conveyor shot blast machine & Filter system
  • Paint spray chamber & Paint supply system
  • Filter from VOC-System & VOC-System
  • Drying chamber & Slat conveyor
  • Outlet roller table & Cross transfer conveyor

4. Key Features

Continuous Blasting: Highly efficient blast wheels for seamless operation.
Versatile Transport: Advanced technology for handling various profiles.
High Process Security: Quality components ensuring long-term reliability.
Custom Design: Flexible layouts to integrate into existing processes.
Industry Leading: Proven technology and wide range of system sizes.
Eco-Friendly: Integrated dust-free and VOC filtration systems.

5. Basic Parameters

Type ETPL 1500HD ETPL 2000HD ETPL 2500HD ETPL 3000HD ETPL 4000HD
Max Height (mm) 500 500 500 500 500
Max Width (mm) 1500 2000 2500 3000 4000
Work Speed (m/min) 1.5-4.5 1.8-5.0 1.0-3.0 0.8-2.5 0.8-2.0
No. of Blast Wheels 4 6 6 6 8
Wheel Power (kW) 11/15/18.5 11/15 11/15/18.5 15/18.5 11/15

Product Gallery

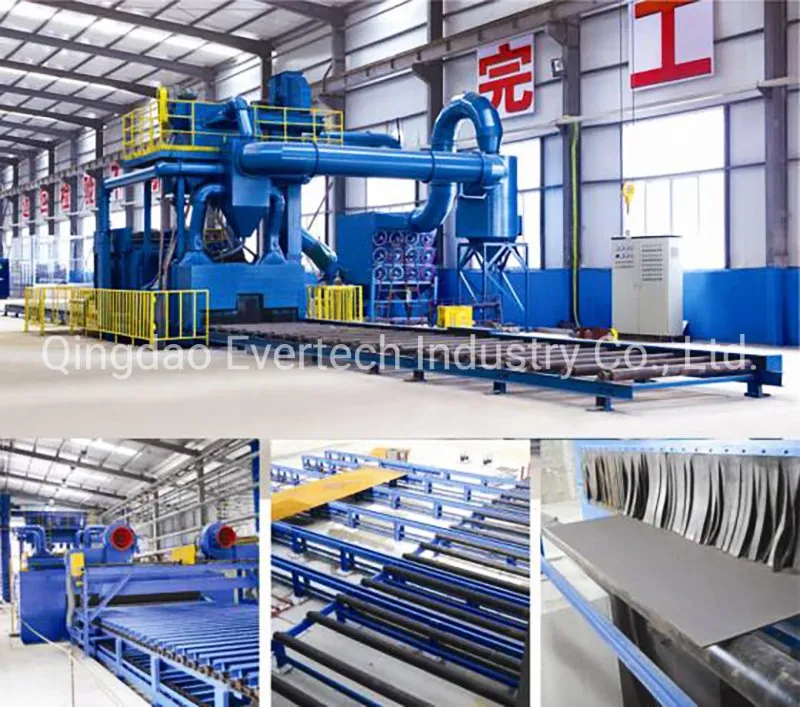

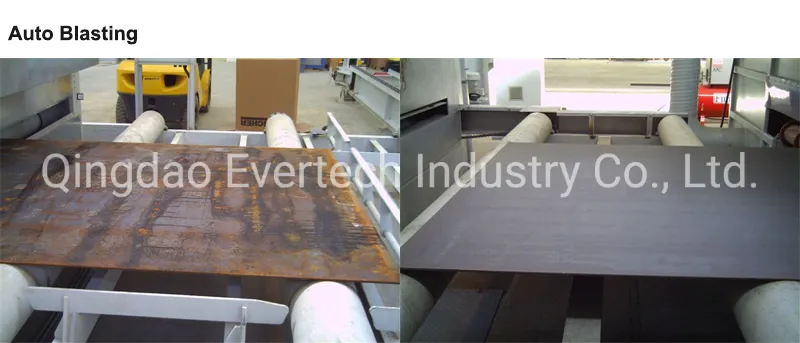

Shot Blasting Detail 1

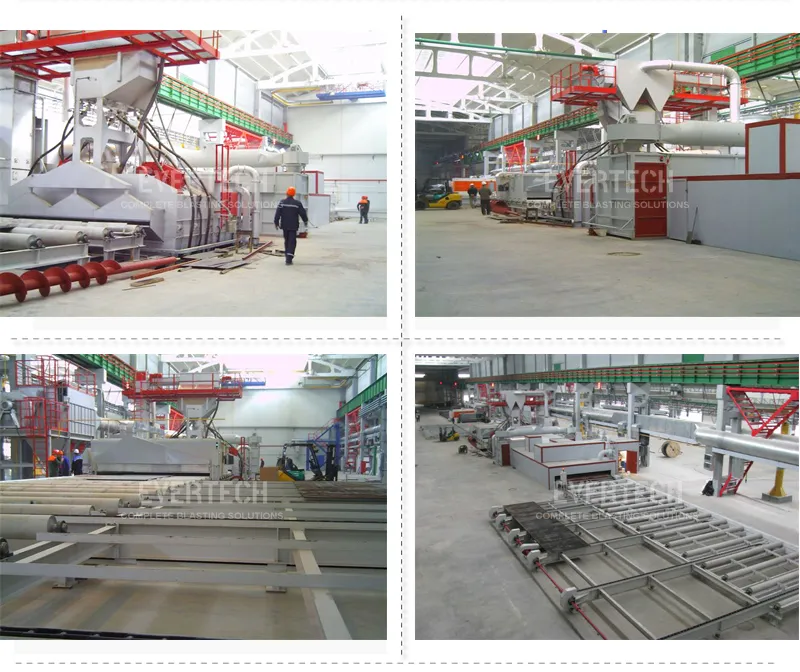

Shot Blasting Detail 2

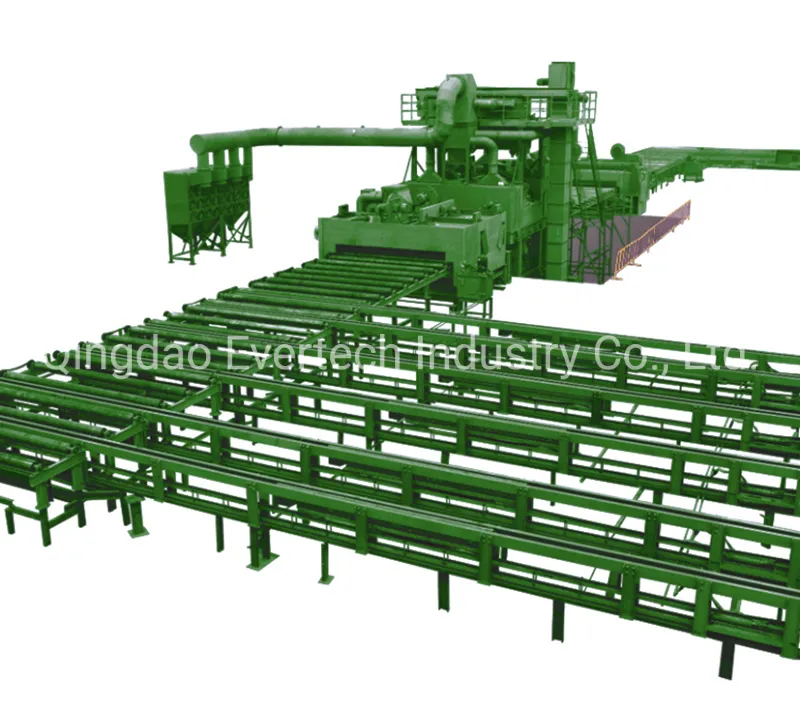

Shot Blasting Detail 3

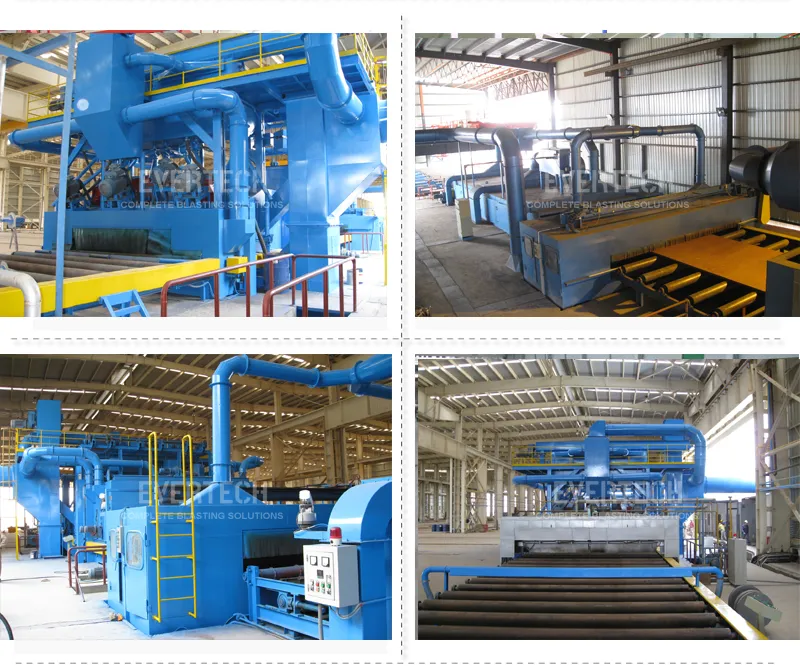

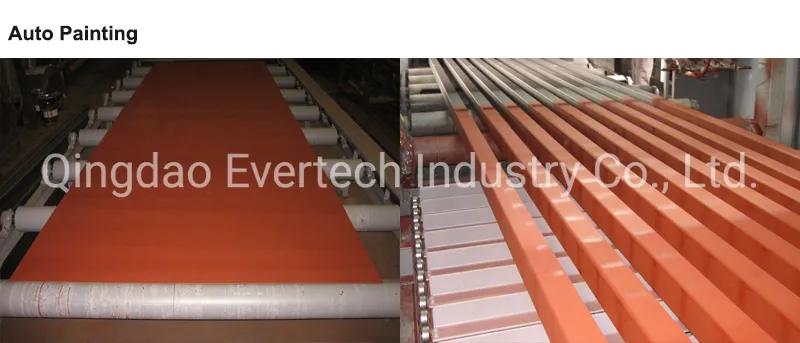

Painting Line Detail
Drying Chamber Detail
Conveyor System Detail

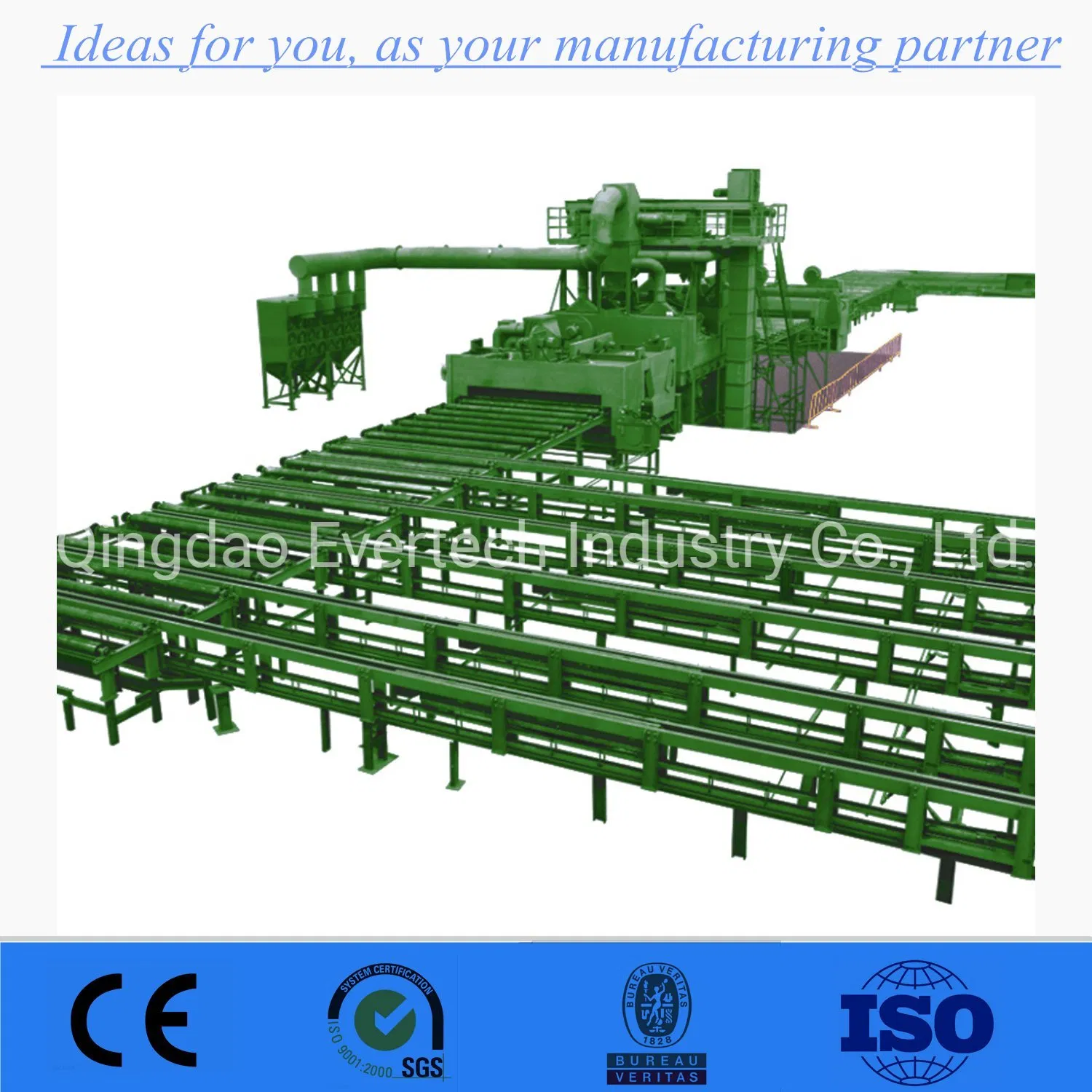

System Layout 1
System Layout 2
Complete Processing Line

Frequently Asked Questions

How do I get the best price?
Price varies depending on the specific model and configurations. Different types of blasting machines are designed for different production scales and budgets.
What machine suits me best?
It depends on your workpiece types and maximum sizes. Please provide the dimensions of your workpieces and we will recommend the most suitable model.
How long is the delivery time?
Generally, it is a few weekdays if goods are in stock. For custom or out-of-stock orders, it typically takes 15 working days depending on the quantity.
How many people are needed to run the line?
For standard units, one person is enough. For complex integrated lines, the number of operators varies based on the accessory equipment and automation level.
What are the operating costs?
High-efficiency turbines minimize power needs. Including abrasive and maintenance, costs average $5-$20/hour. It is significantly more productive than manual cleaning.
What utilities are required to run the machine?
The system requires a three-phase electrical input (transformers can be provided for specific voltages) and a supply of clean, dry compressed air.
