Blatrixo Machine
Blatrixo Machine

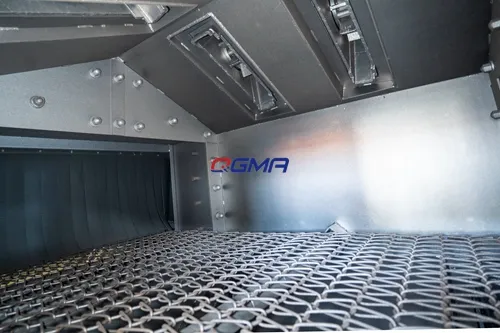

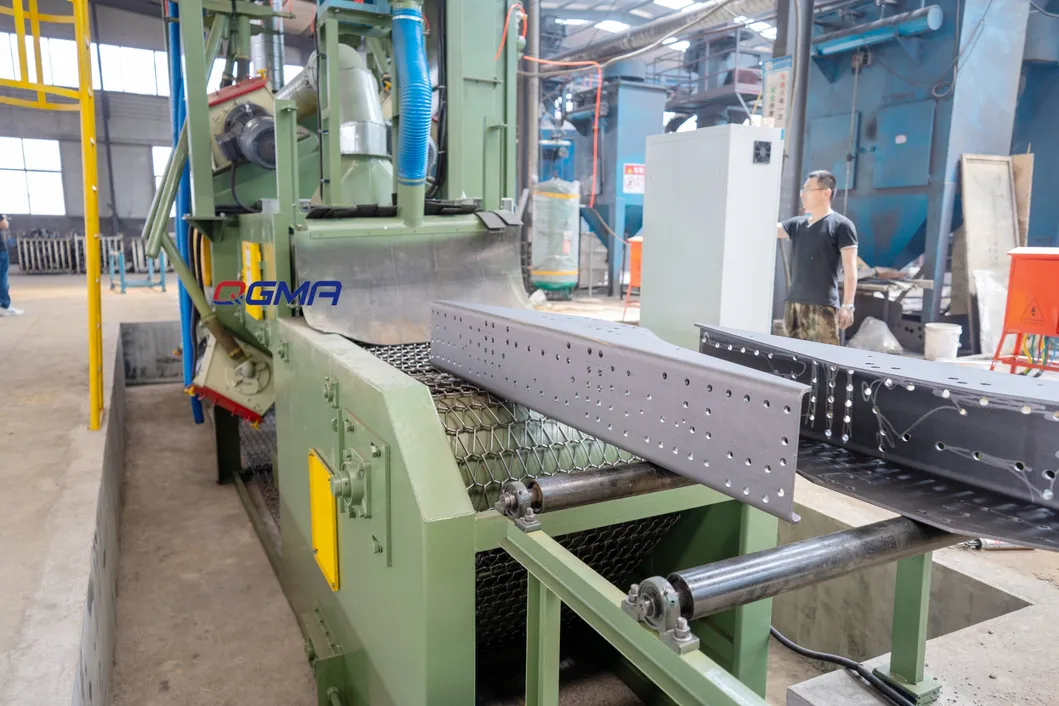

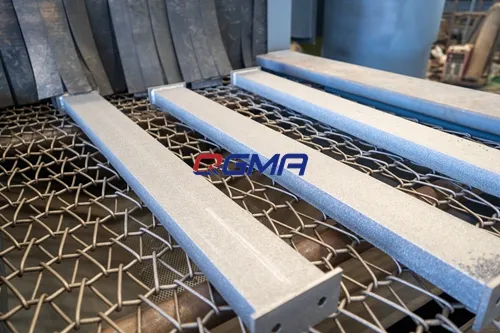

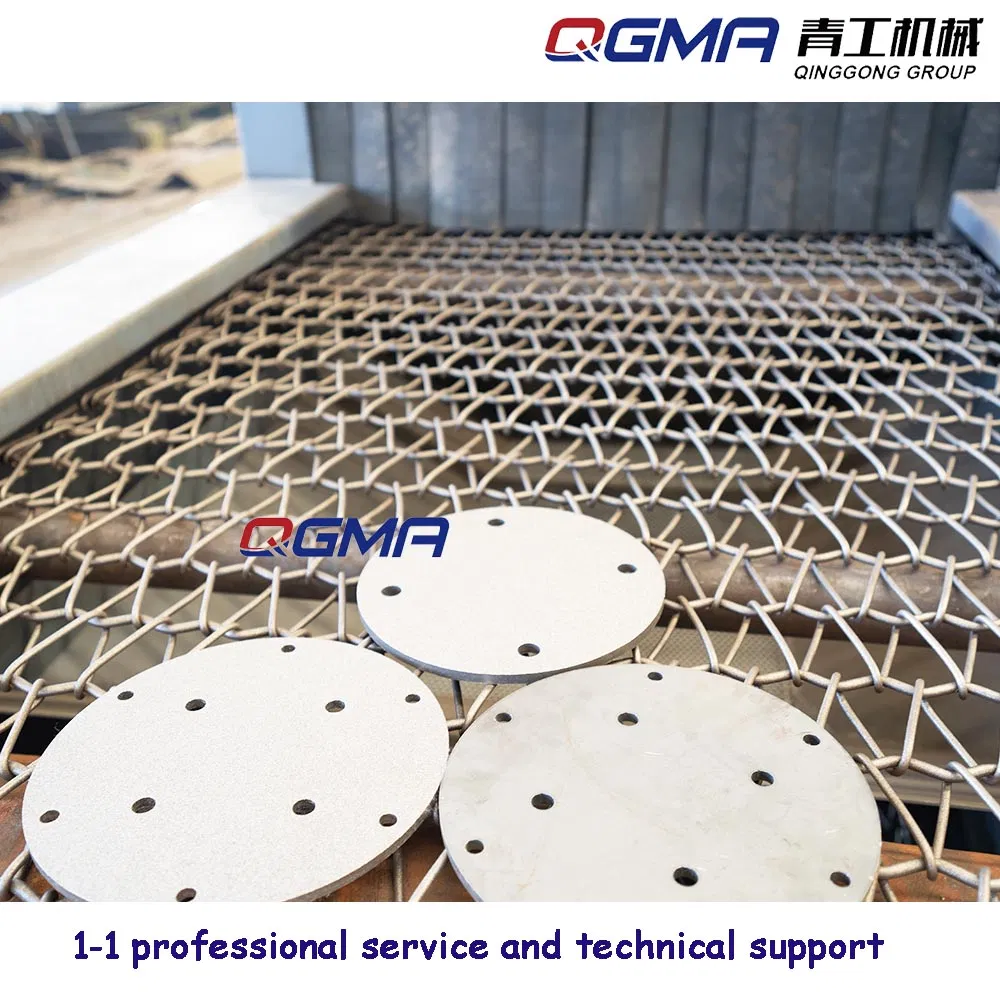

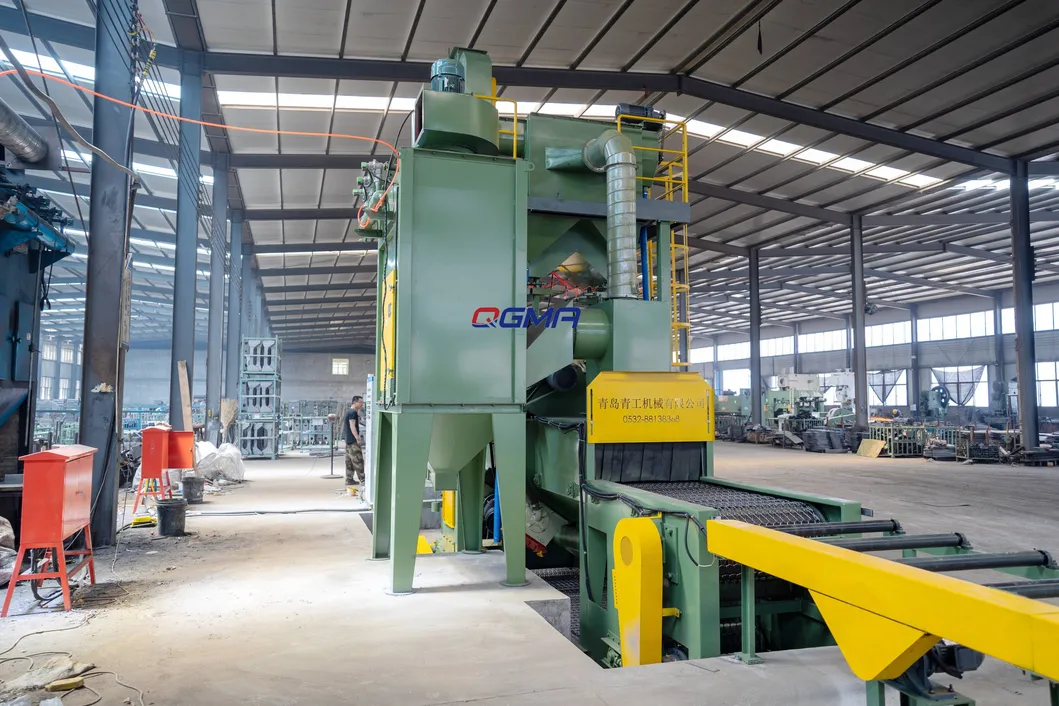

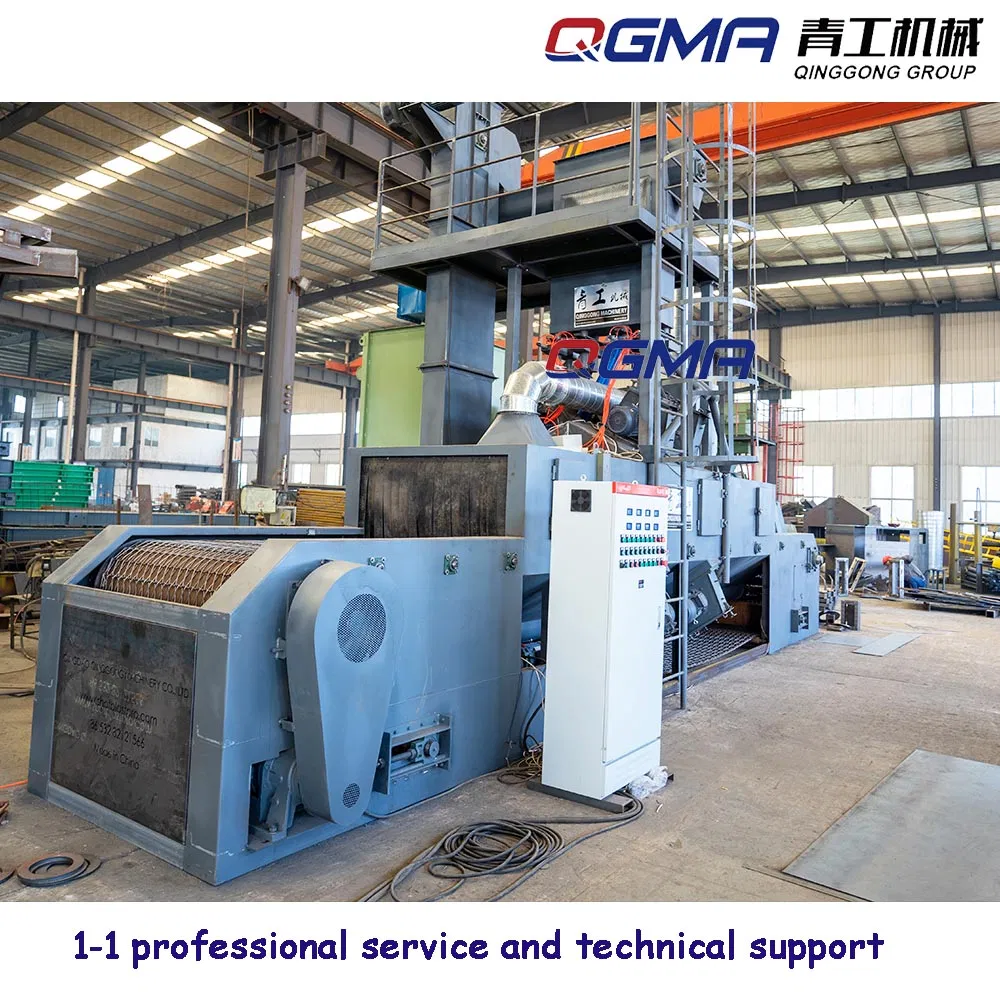

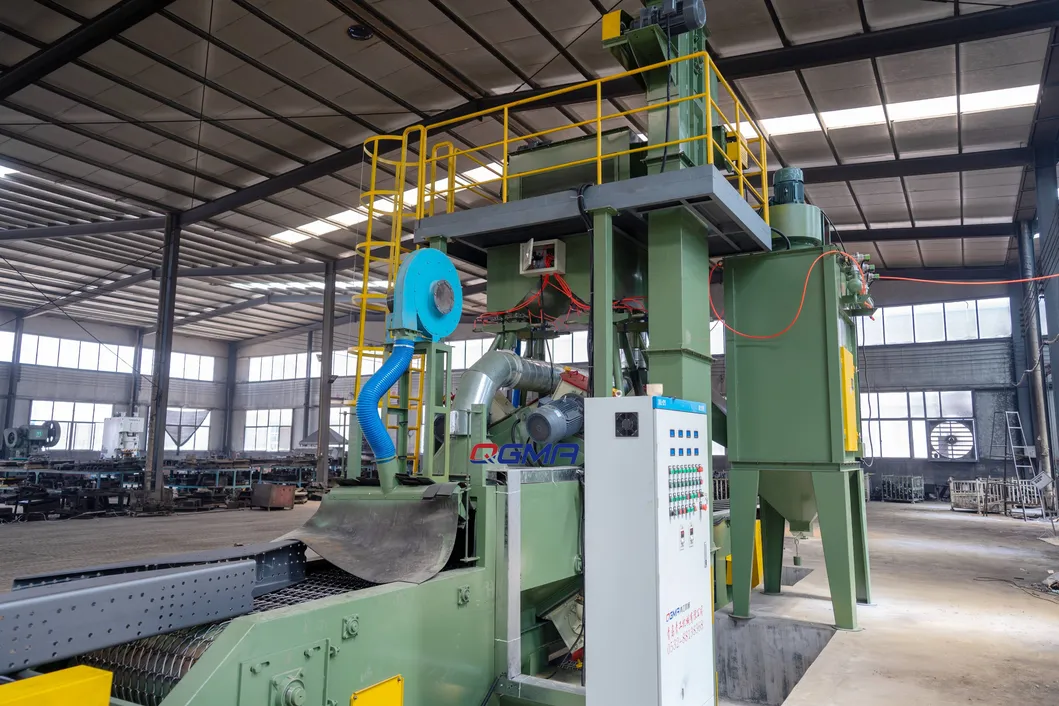

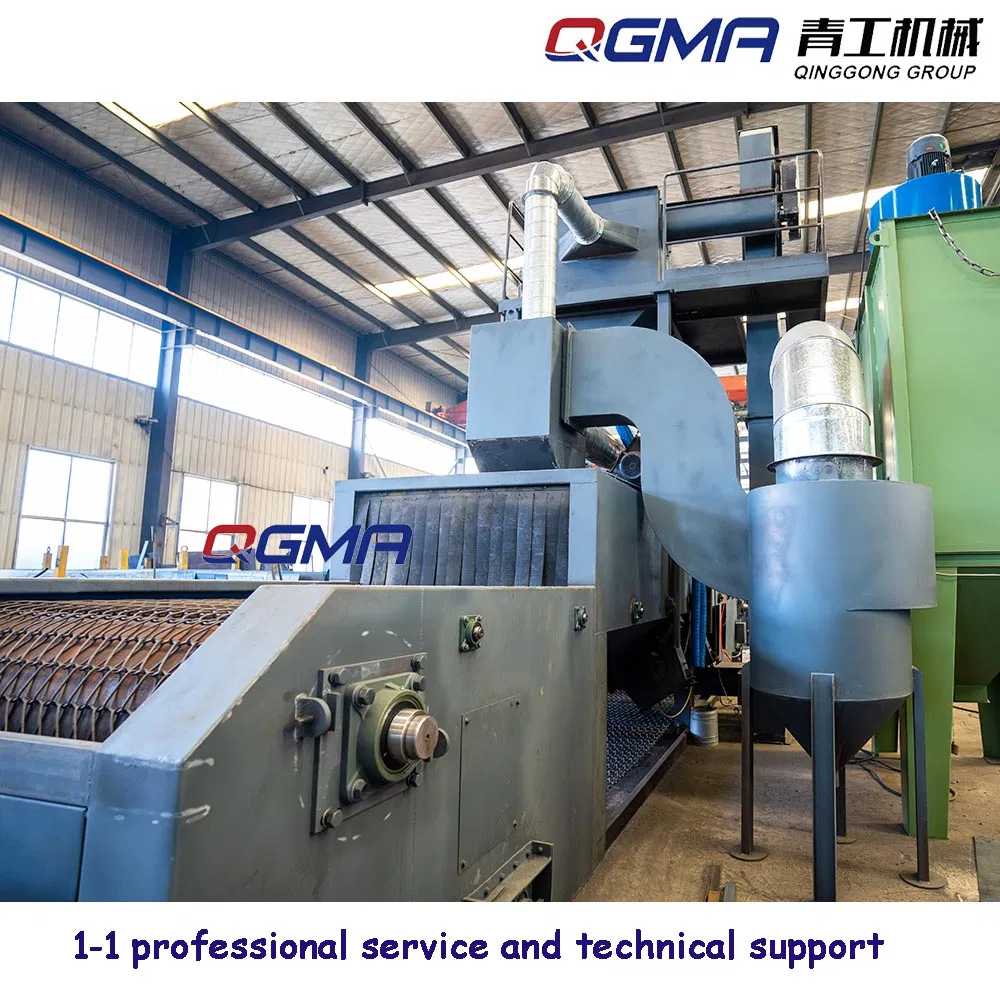

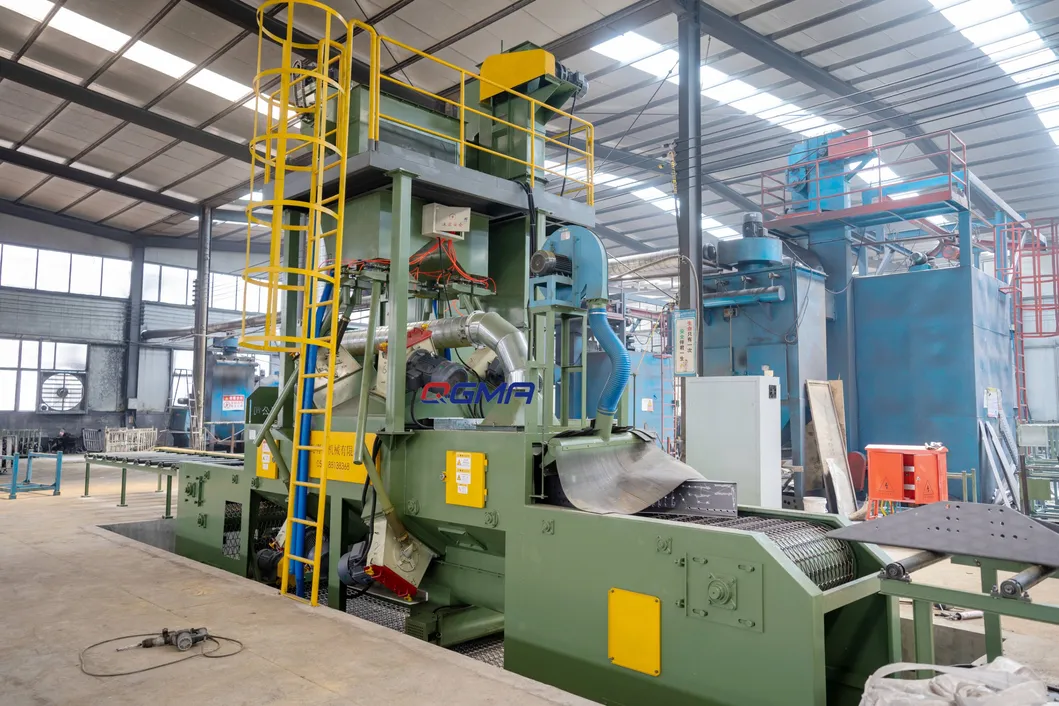

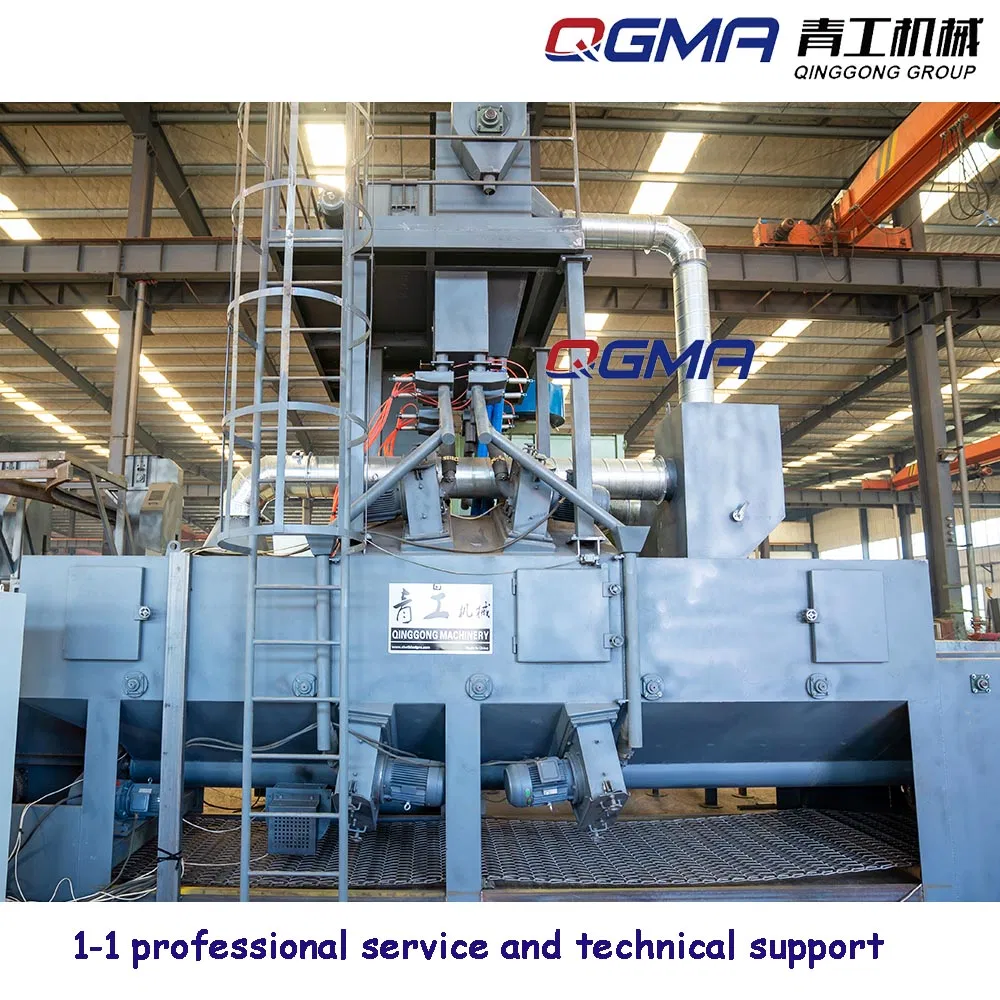

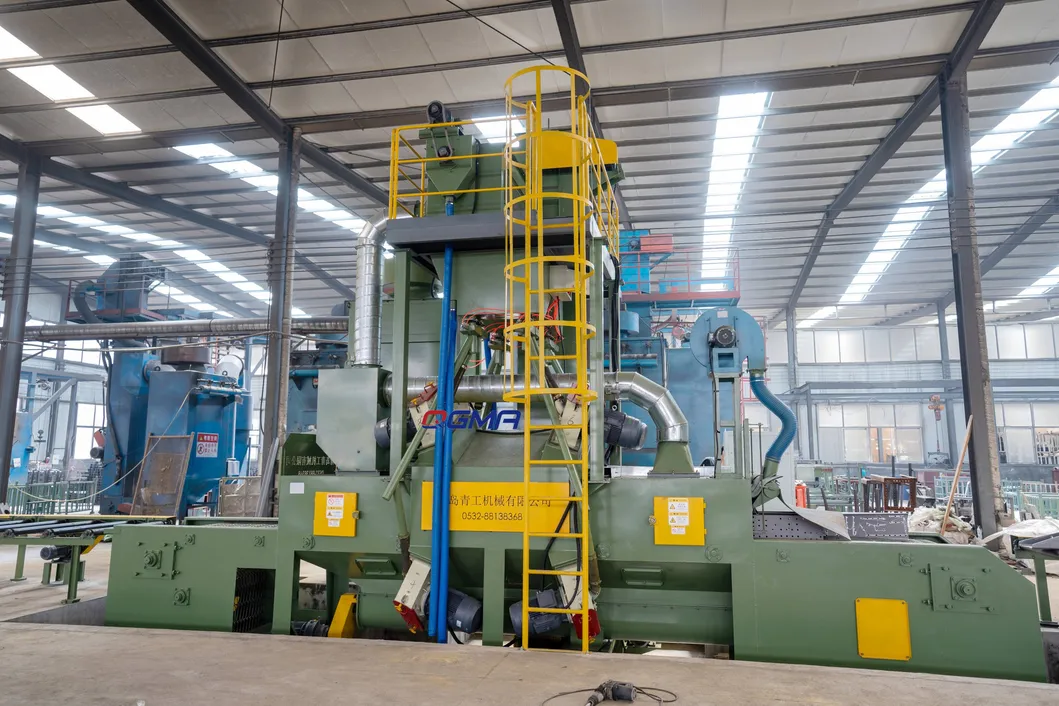

The wire mesh belt shot blasting machines were developed according the market demand. The wire mesh belt structure, steel shot when the road network with speed according to the frequency control of the artifact types, shot blasting will be more uniform, clean-up time will be greatly reduced efficiency. In addition, the workpiece will not collide, it will not fall. It is ideal to deal with thin-walled parts afraid of collision. Delivery devices through both ends of the configuration can be achieved in-line, fully automated operation.

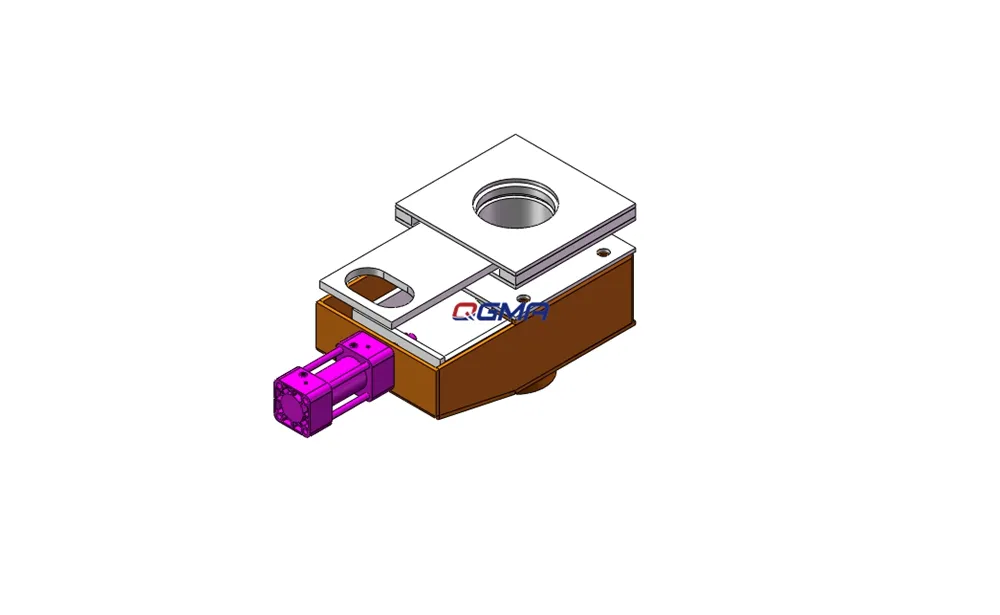

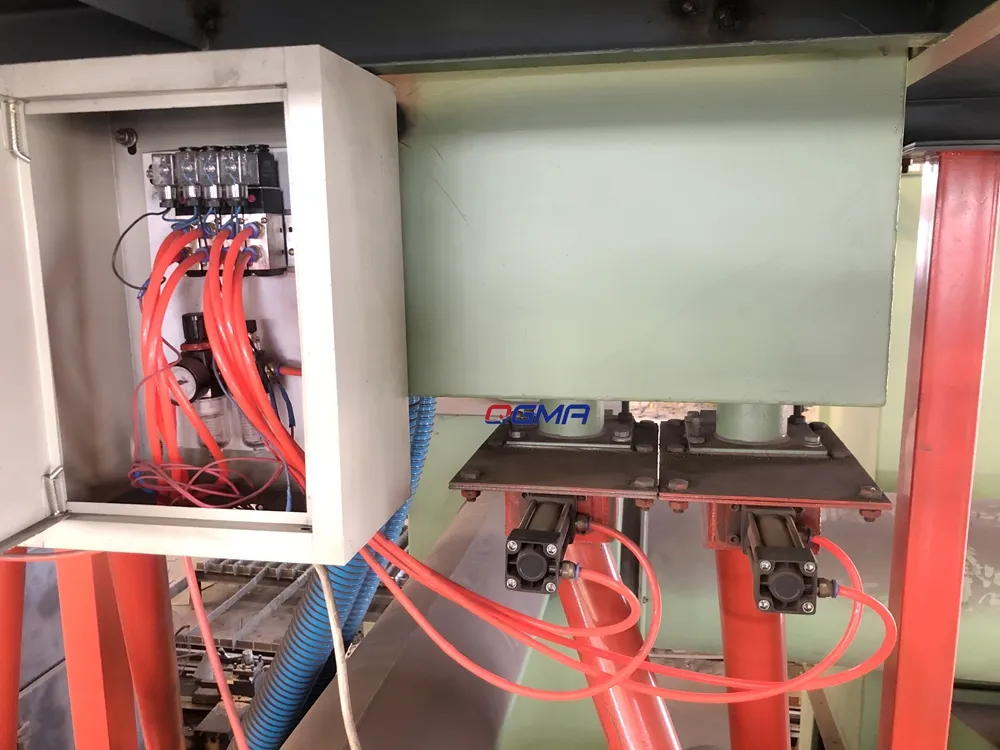

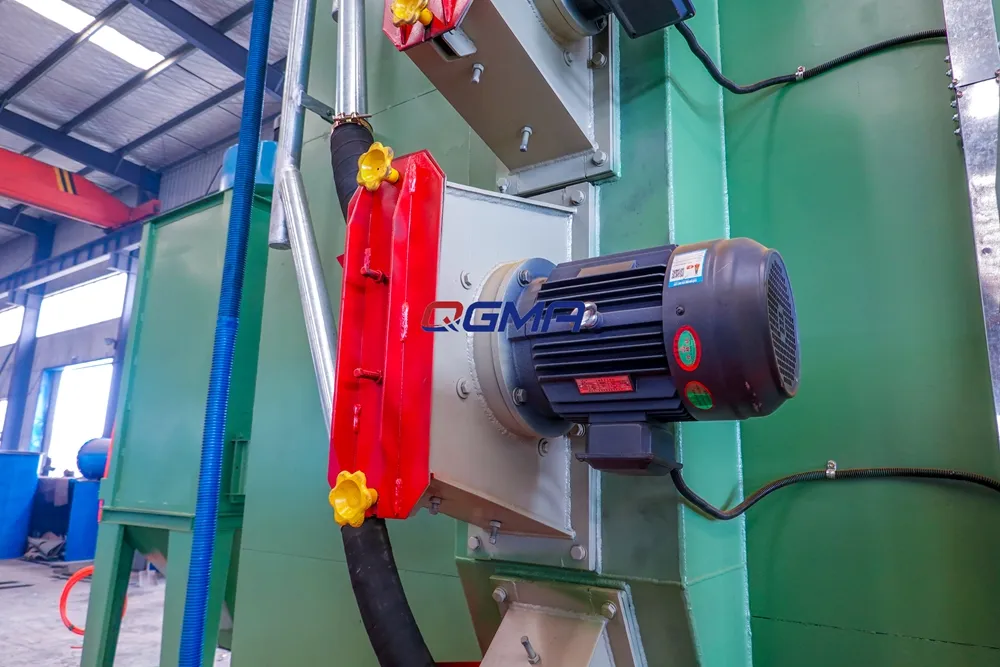

Equipped with 4-8 blast turbines (7.5-18.5 kW). The intelligent abrasive dosing system extends service time by up to 20% and saves energy up to 30%.

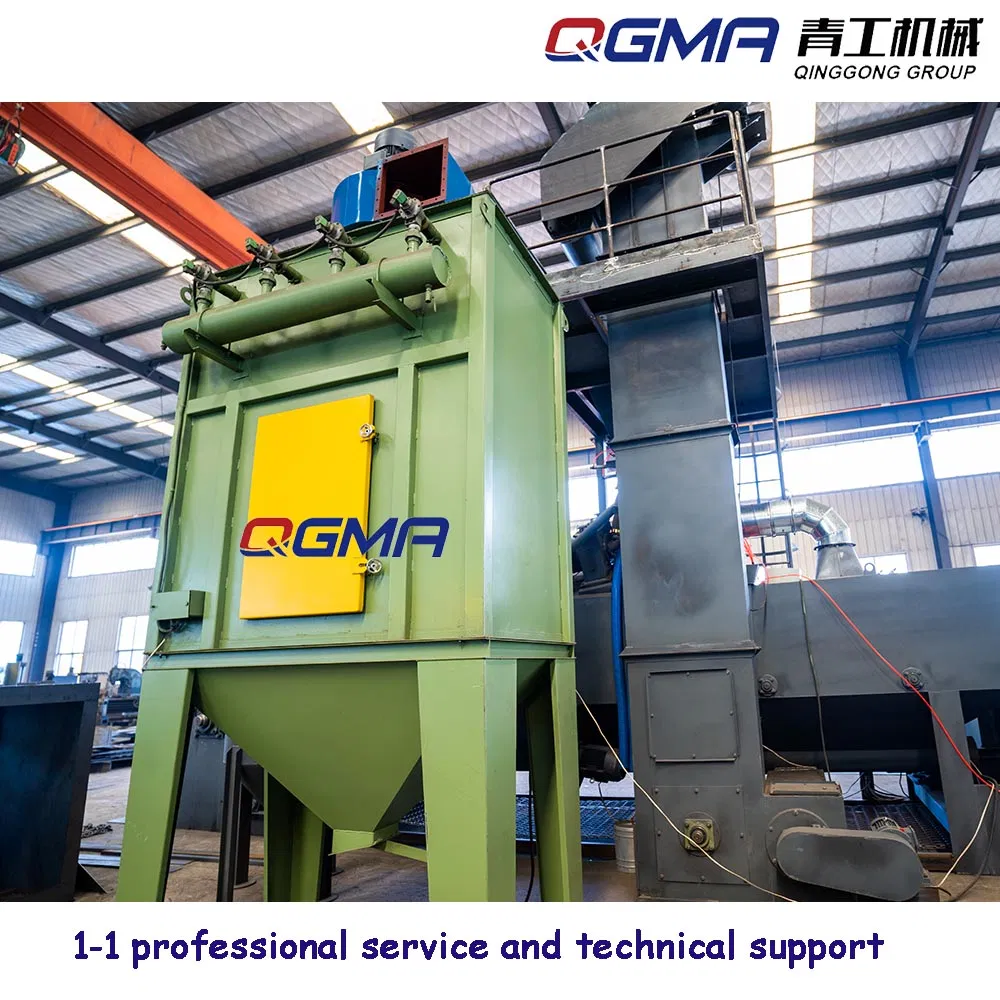

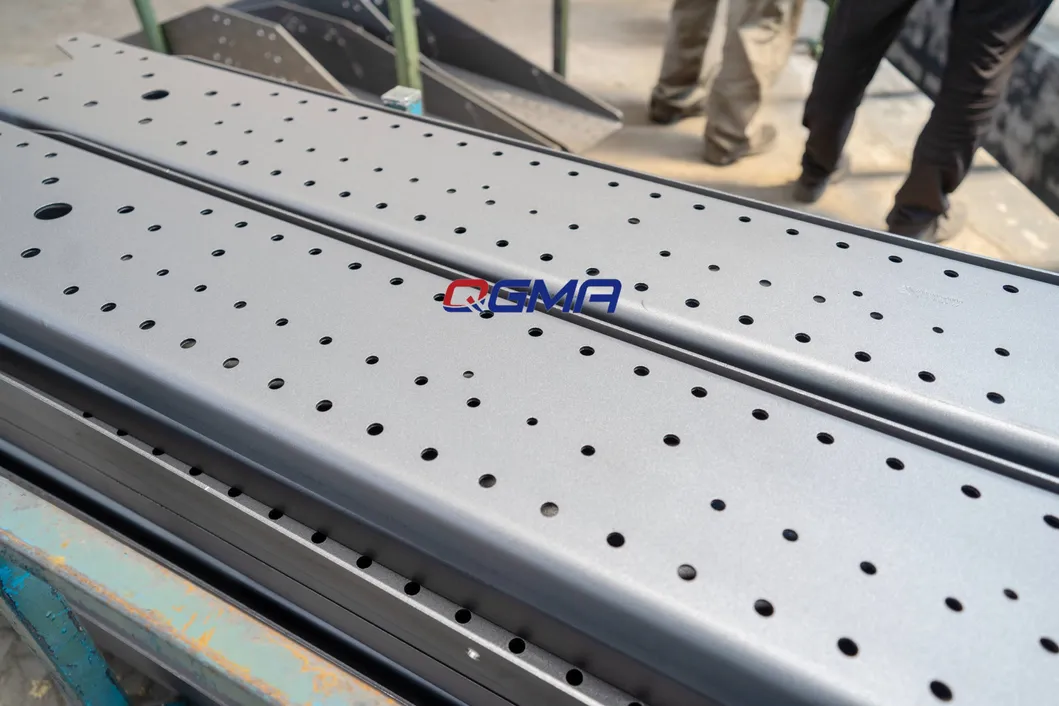

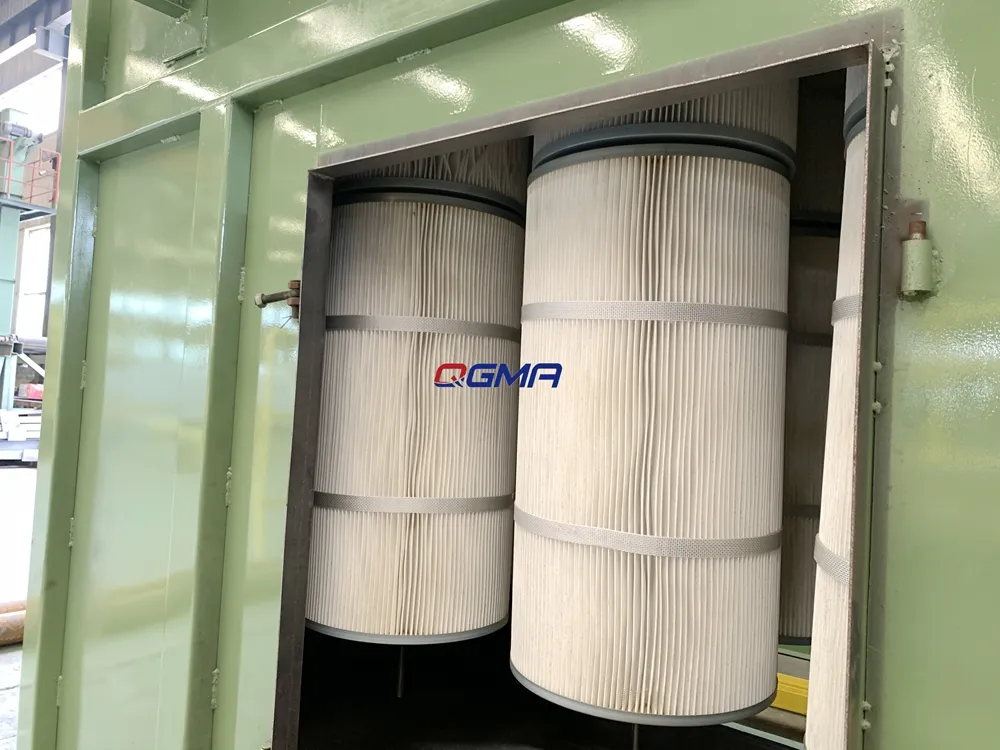

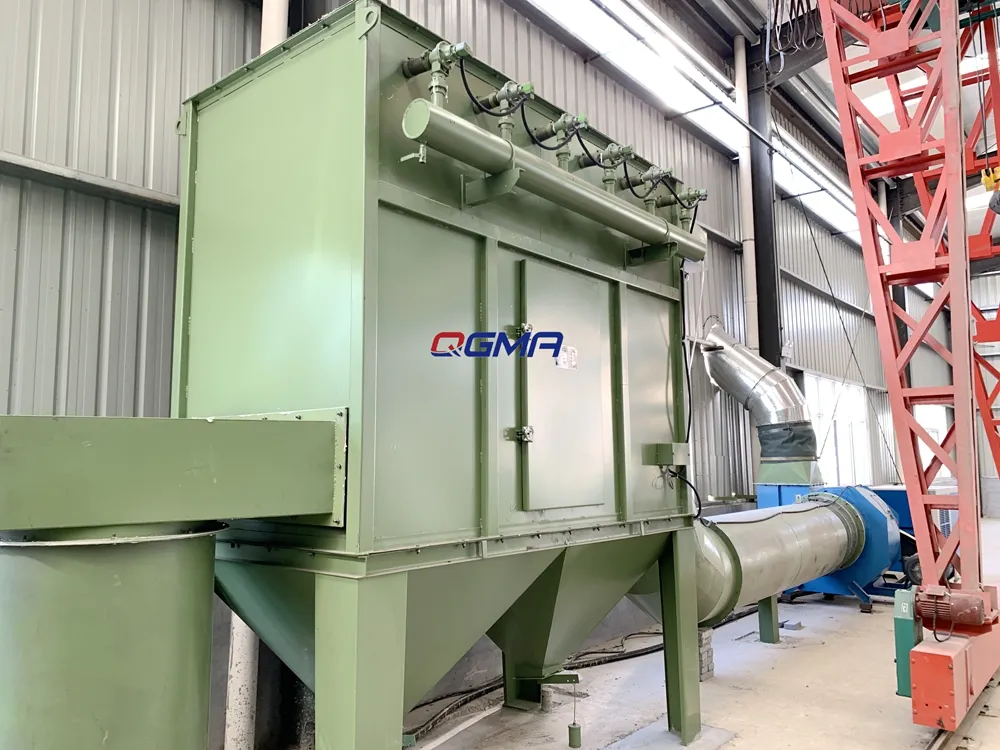

Settling chamber + cartridge-type dust collector. Cartridge filter service time: 5 years. Effectively removes scale, rust, and welding slag.
| Items | Cast iron | Cast aluminium | Cast iron (Small) | Cast aluminium (Small) |
|---|---|---|---|---|
| Mesh belt width (mm) | 1250 | 1250 | 800 | 800 |
| Productivity (t/h) | 3.5/7.5 | Based on workpieces | 3.5/7.5 | Based on workpieces |
| Passing speed (m/min) | 0.5-2.5 | 0.5-2 | 0.5-2.5 | 0.5-2 |
| Blast turbines | 4/8 | 4/8 | 4/8 | 4/8 |
| Turbine Power (KW) | 11-18.5 | 7.5-15 | 11-18.5 | 7.5-15 |
In case of issues with the machine, we provide remote online assistance to help. Our engineers can also travel to your facility to solve complex problems that cannot be handled locally.
Our company provides perfect solutions for shot blasting machines, preservation lines, and blasting rooms to users around the world. We adhere to the concept of efficient, intelligent, creative, and environmental protection product development.
With strong production bases, abundant manufacturing experience, and a professional engineer team, we offer one-to-one service for standard and non-standard automatic blasting lines.
Our patented technology and international certifications guarantee the high quality of our machinery.
