Blatrixo Machine
Blatrixo Machine

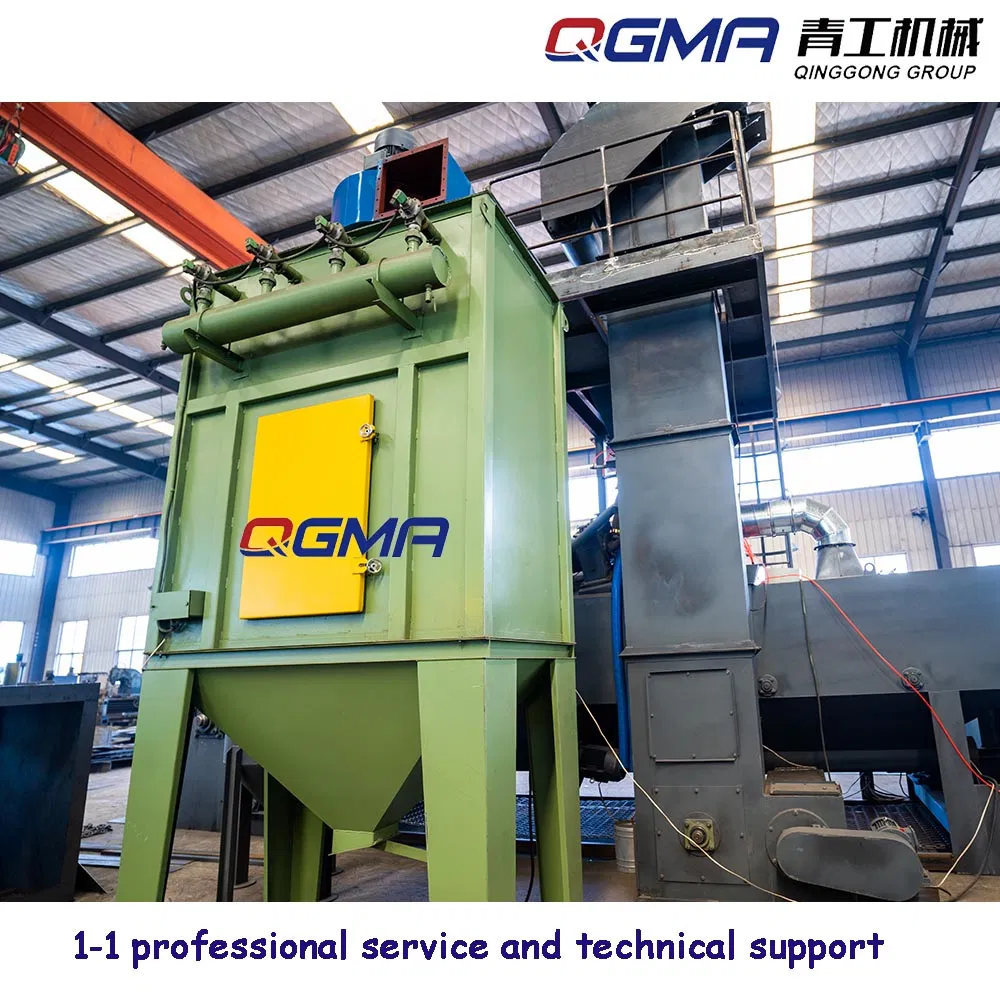

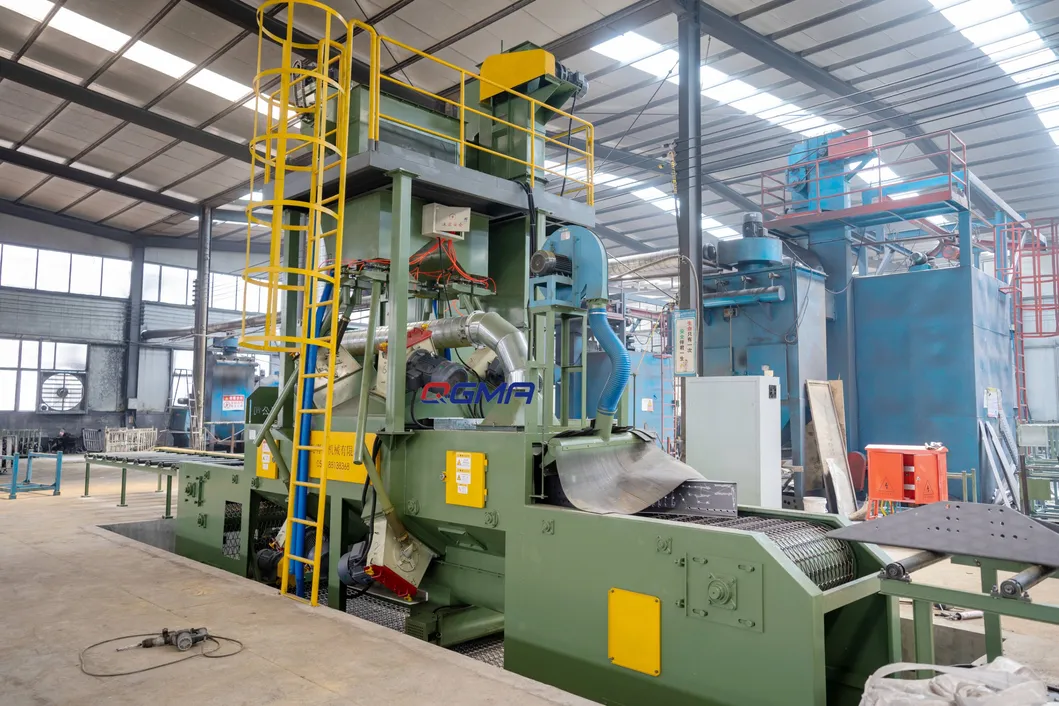

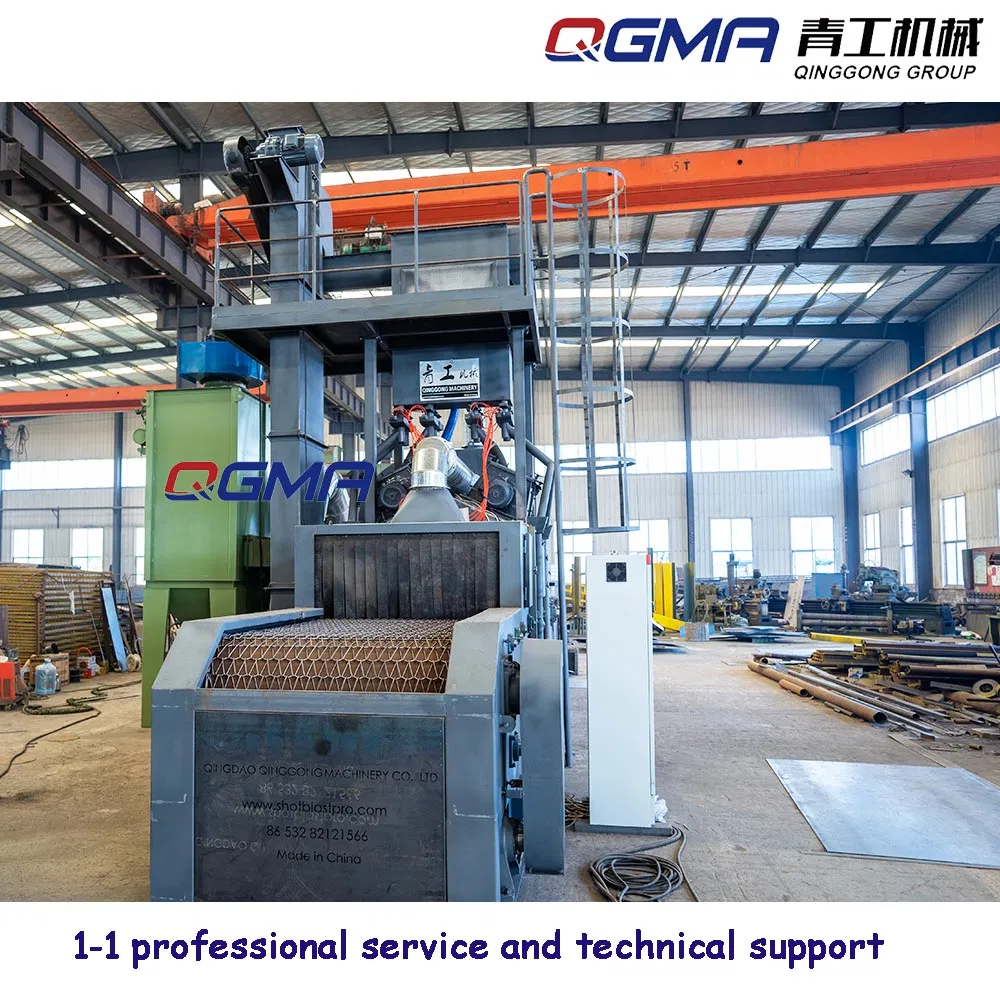

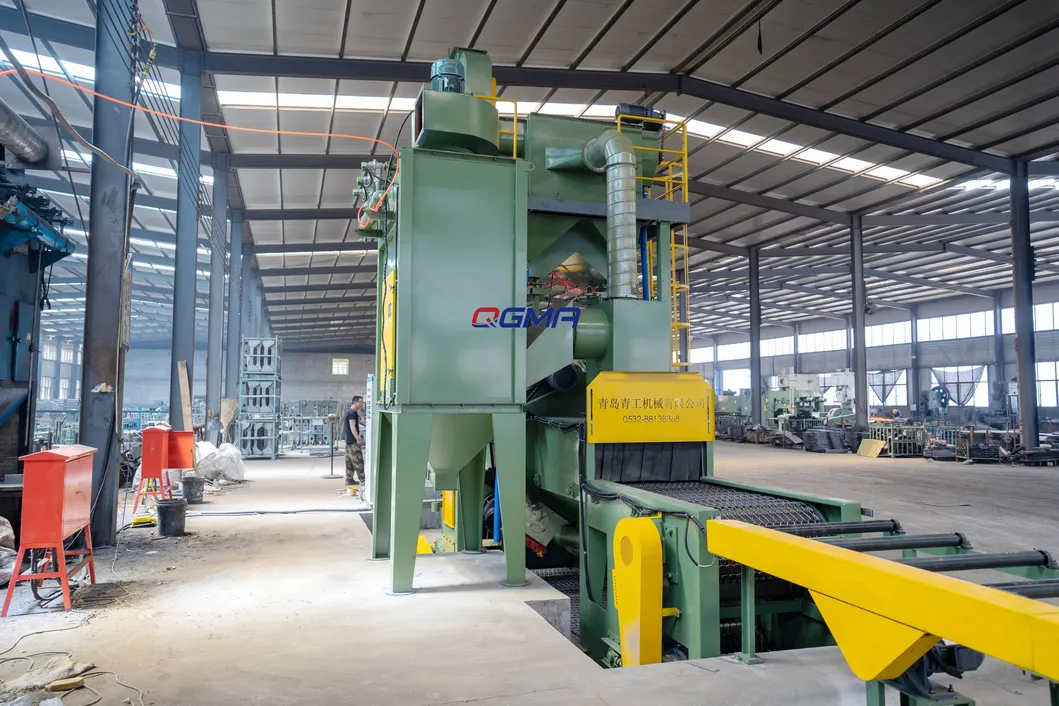

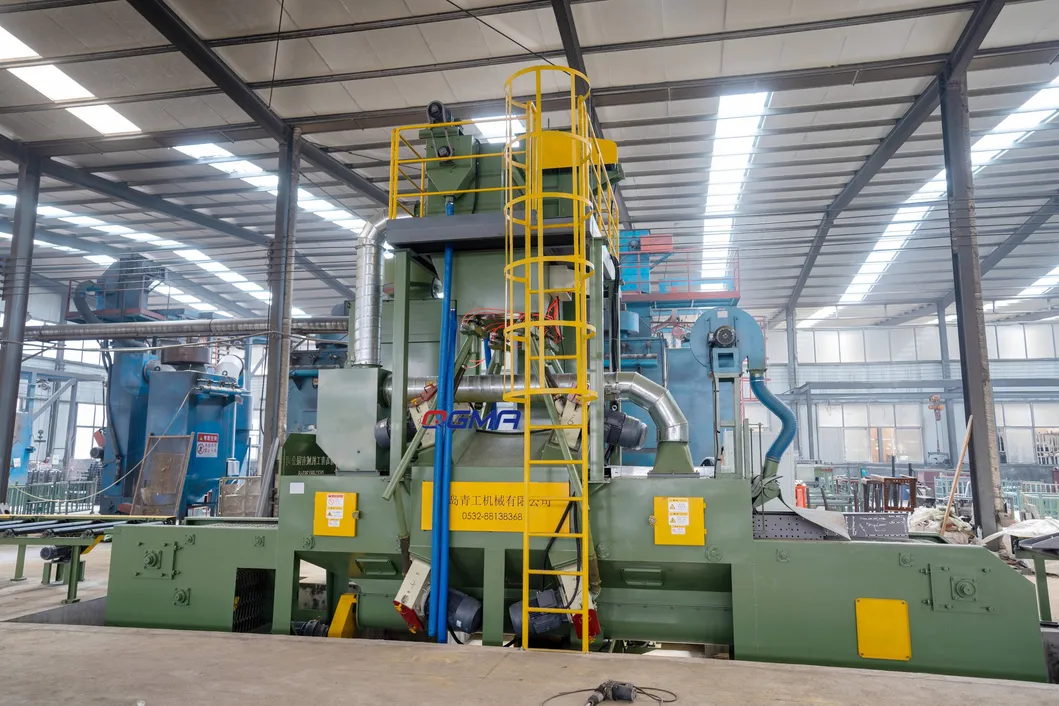

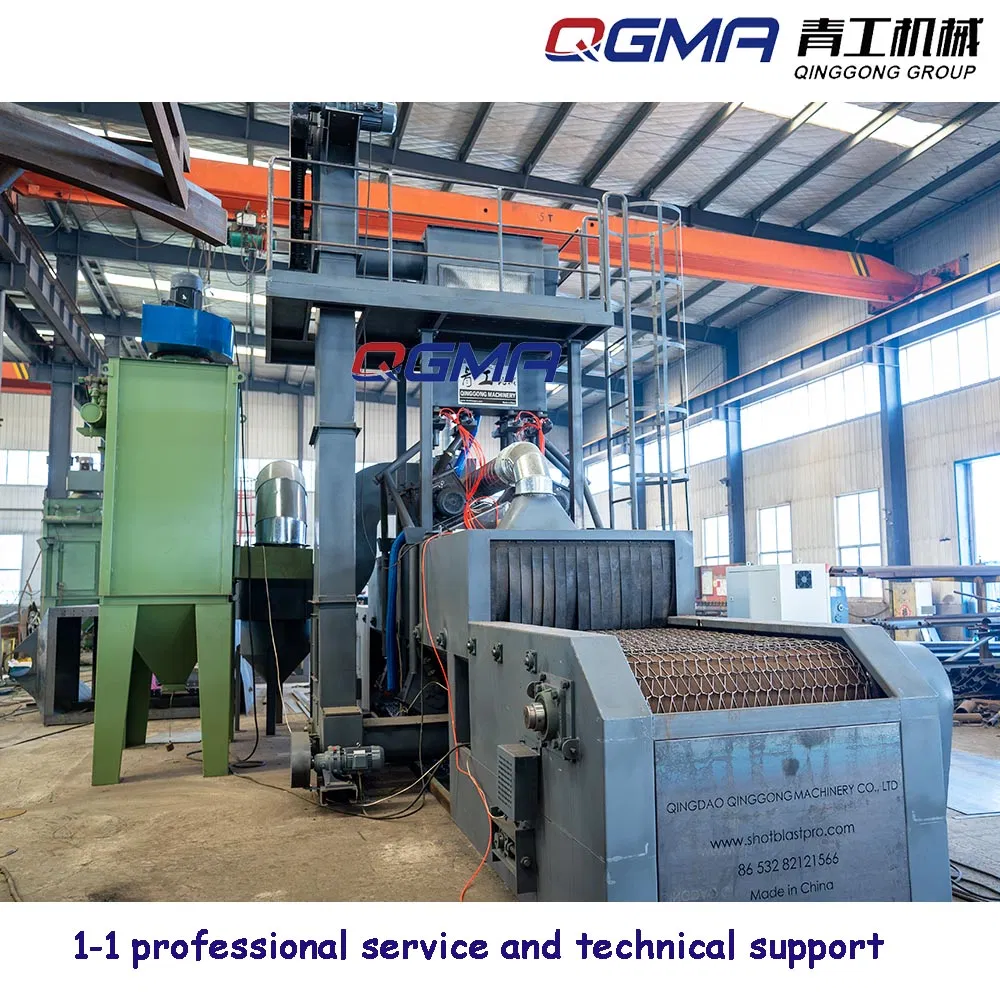

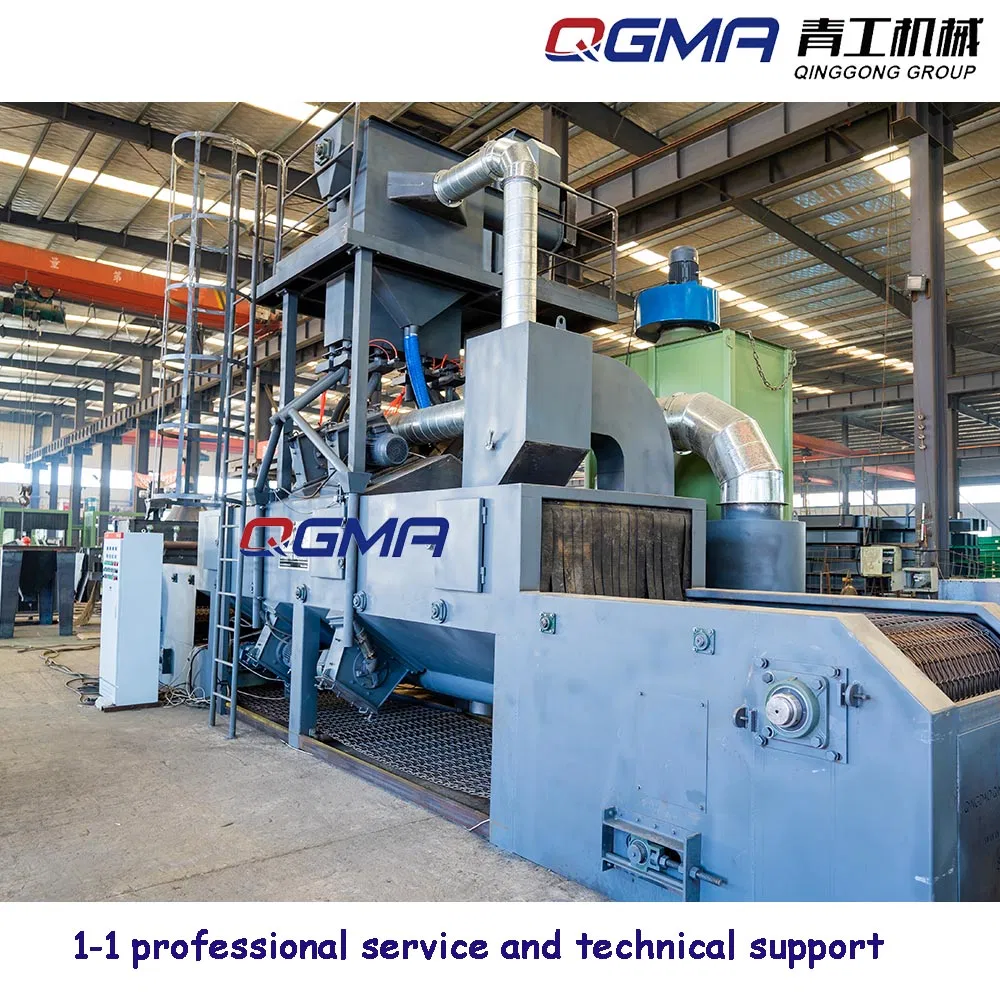

High Production Automatic Wheel Blasting Machine / Steel Wire Mesh Belt Conveyor Type

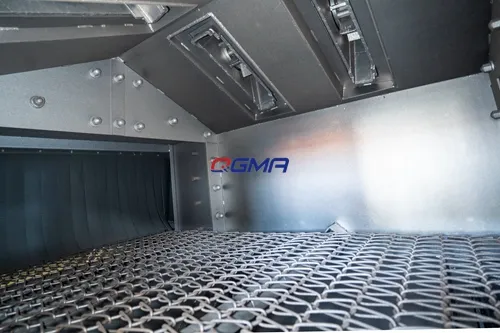

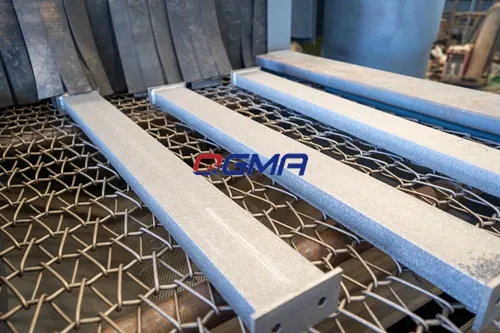

The wire mesh belt shot blasting machines were developed according to market demand. The wire mesh belt structure ensures that steel shots hit workpieces uniformly as they move at controlled speeds. This significantly reduces cleaning time and improves efficiency. Additionally, the design prevents workpieces from colliding or falling, making it ideal for thin-walled or fragile parts. Fully automated operations can be achieved by configuring delivery devices at both ends of the line.
Main Applications:
System Components:

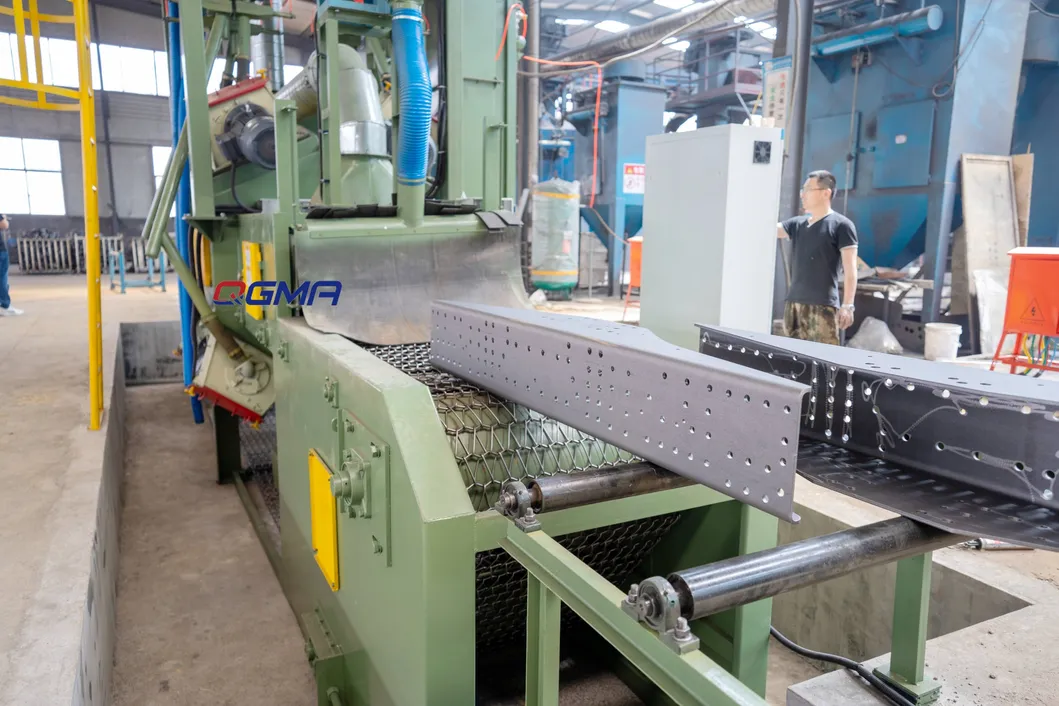

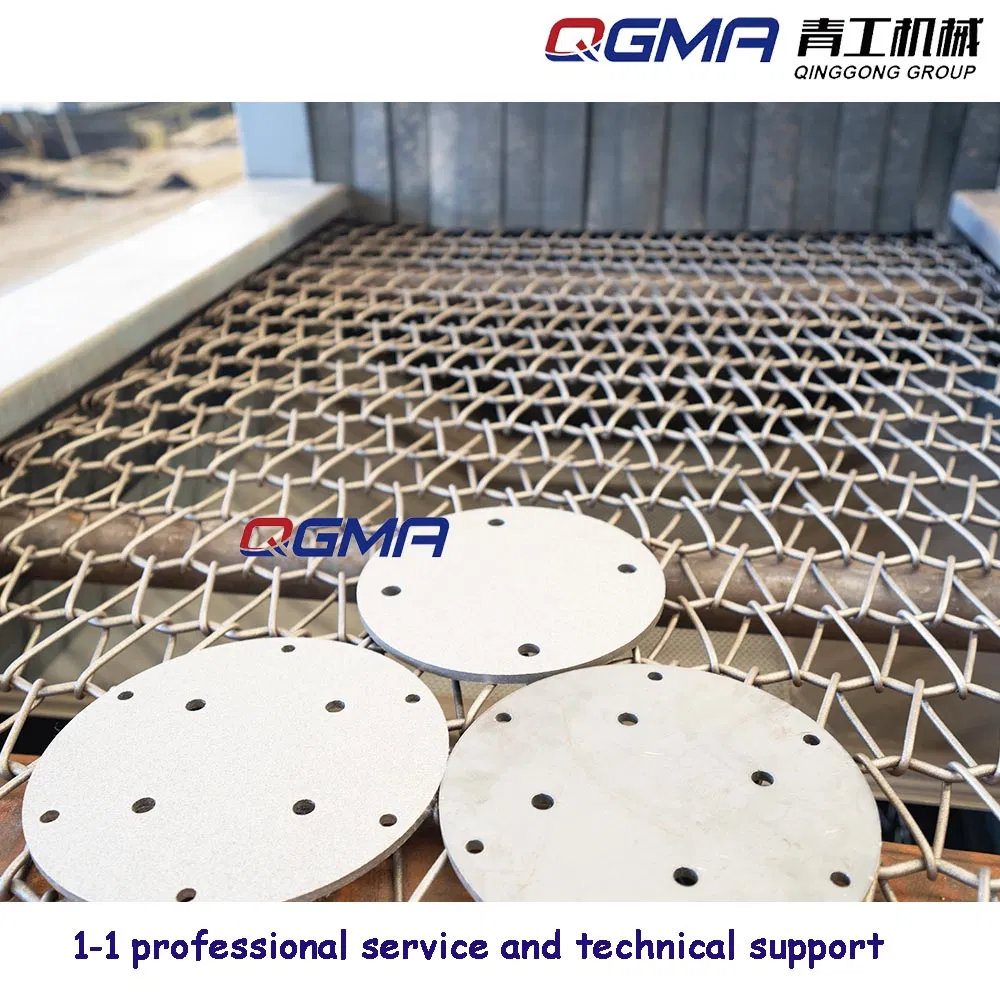

🔹 Transportation System: Metal wire mesh conveyor, width range 600-1000mm, load capacity up to 3000kg.

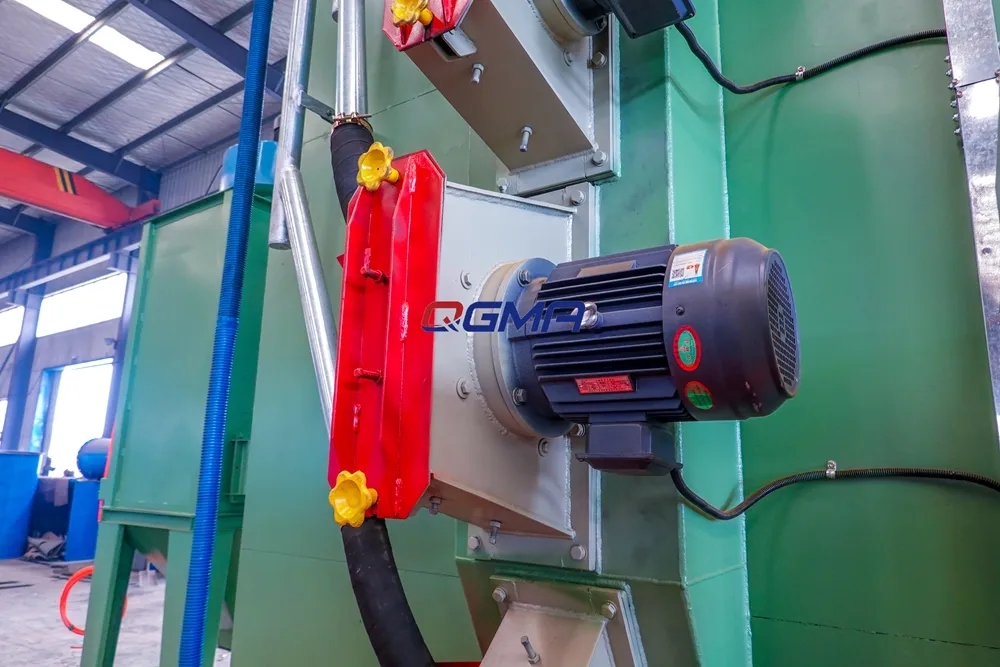

🔹 Blast Turbine: 4-8 units with power ranging from 7.5 to 18.5 KW.

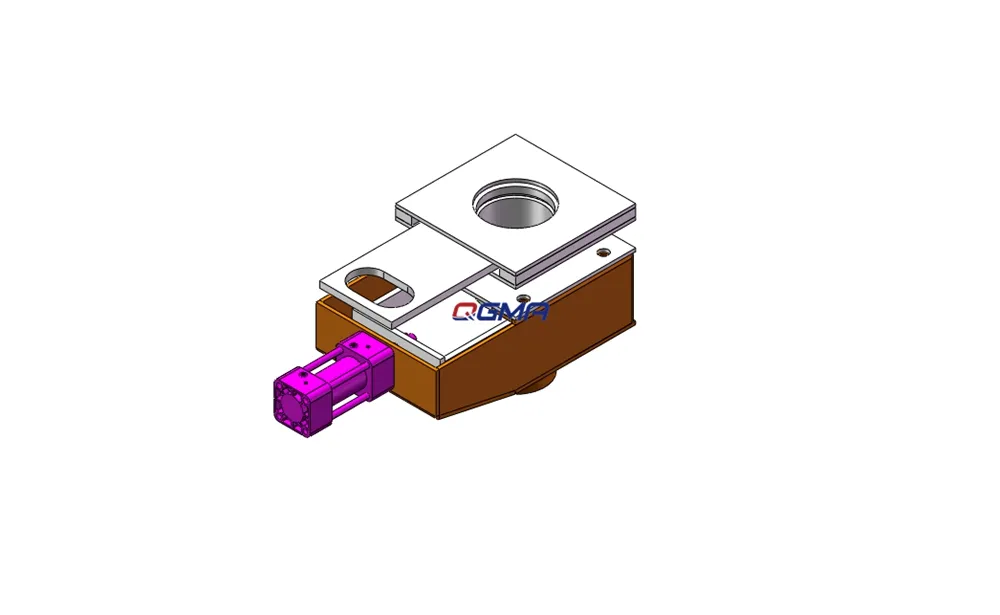

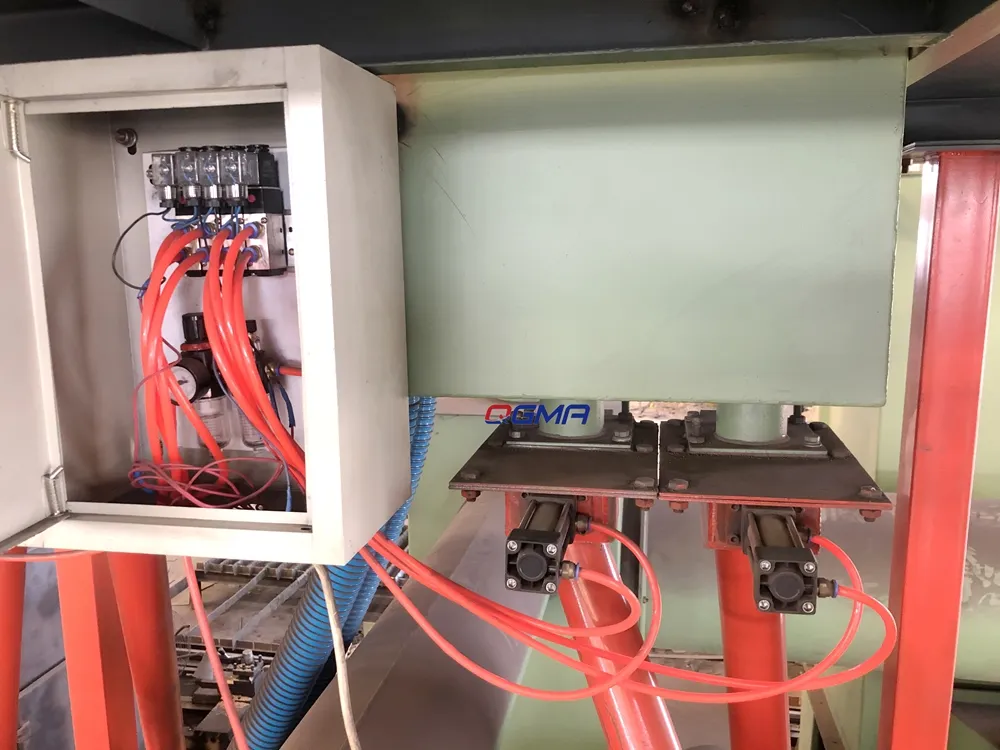

🔹 Intelligent Abrasive Dosing: Extends service time by up to 20% and saves up to 30% energy.
| Items | Cast Iron (L) | Cast Aluminium (L) | Cast Iron (S) | Cast Aluminium (S) |
|---|---|---|---|---|
| Mesh belt width (mm) | 1250 | 1250 | 800 | 800 |
| Productivity (t/h) | 3.5/7.5 | Based on workpieces | 3.5/7.5 | Based on workpieces |
| Passing speed (m/min) | 0.5-2.5 | 0.5-2 | 0.5-2.5 | 0.5-2 |
| Number of turbines | 4/8 | 4/8 | 4/8 | 4/8 |
| Power (KW) | 11-18.5 | 7.5-15 | 11-18.5 | 7.5-15 |
In case of technical issues, we provide remote online assistance. Our engineers are available to visit your facility for complex troubleshooting that cannot be resolved remotely. We maintain a full stock of spare parts to ensure minimal downtime.
Our company provides perfect solutions for shot blasting machines, preservation lines, and blasting rooms to users worldwide. We focus on efficient, intelligent, and environmentally compatible product development. Our patented technologies guarantee high-performance standards.
