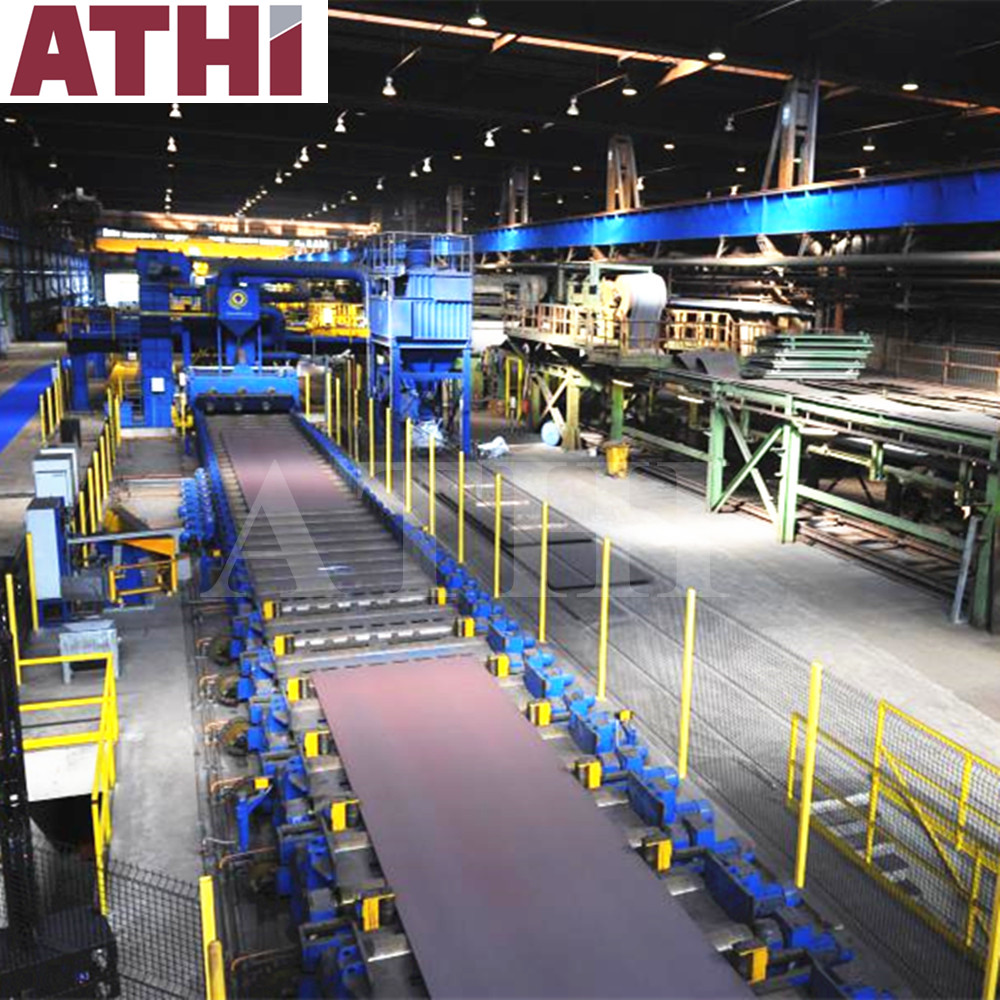

Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting
Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting
Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting
Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting
Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting
1 / 5
Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting
Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting
Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting
Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting
Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting

Automatic Roller Conveyor Shot Blasting and Painting Preservation Line for Sheet Metal Plates Beams Surface Cleaning and Painting

Customization: Available
After-sales Service: Online Support, Spare Parts, Field Maintenance
Warranty: 1 Year
Send Inquiry

Product Description

Automatic Roller Conveyor Shot Blasting and Painting Preservation Line
This high-efficiency steel plate pretreatment line is designed for sheet metal plates and beams surface cleaning and painting. The line integrates advanced rusting cleaning (shot blast cleaning) with high-efficient blast wheels and a full shutter type shot sand separator. The system features a specially made high-strength nylon rolling brush, high-pressure ventilator, and airless spraying technology, all managed by a centralized PLC control system.
Technical Specifications
Model NO.
QAT69
Application
Structural Steel Treatment
Fuel
Electric
Type
Automatic
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, BV/TUV/ISO9001:2008
Feature
Rust / Corrosion Proof
Condition
New
Transport
Containers
Capacity
100 sets/Year
HS Code
8424300000
Key Features & Benefits
Automatic Surface Pretreatment (Preheating, Rust Removal, Painting, Drying)
High-Pressure Airless Spraying for Uniform Coating
Advanced PLC Control for Entire Production Line
Optimized for Shipyards, Ship Building, and Heavy Machinery
Specifications Model QXY1500 QXY2000 QXY2500 QXY3000 QXY3500 QXY4000
Steel Plate Width (mm) 500-1500 1000-2000 1000-2500 1000-3000 1000-3500 1000-4000
Thickness (mm) 3-20 3-60 5-30 3-60 5-35 5-50
Length (mm) 2000-12000 1500-12000 2000-12000 2400-12000 2000-12000 2400-16000
Structure Parts Max Width (mm) 1600 800 2500 1500 3500 4000
Max Height (mm) 500 300 400 800 400 500
Roller Load Load (T) 1 1 1.5 2 2 2
Total Power Power (kW) 450 413.2 550 614 560 600
Product Display

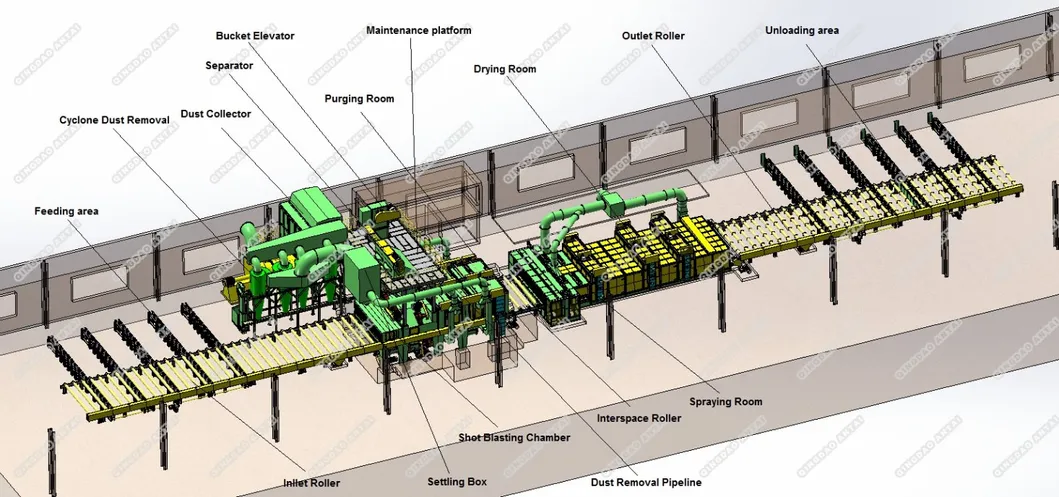

Shot Blasting Line

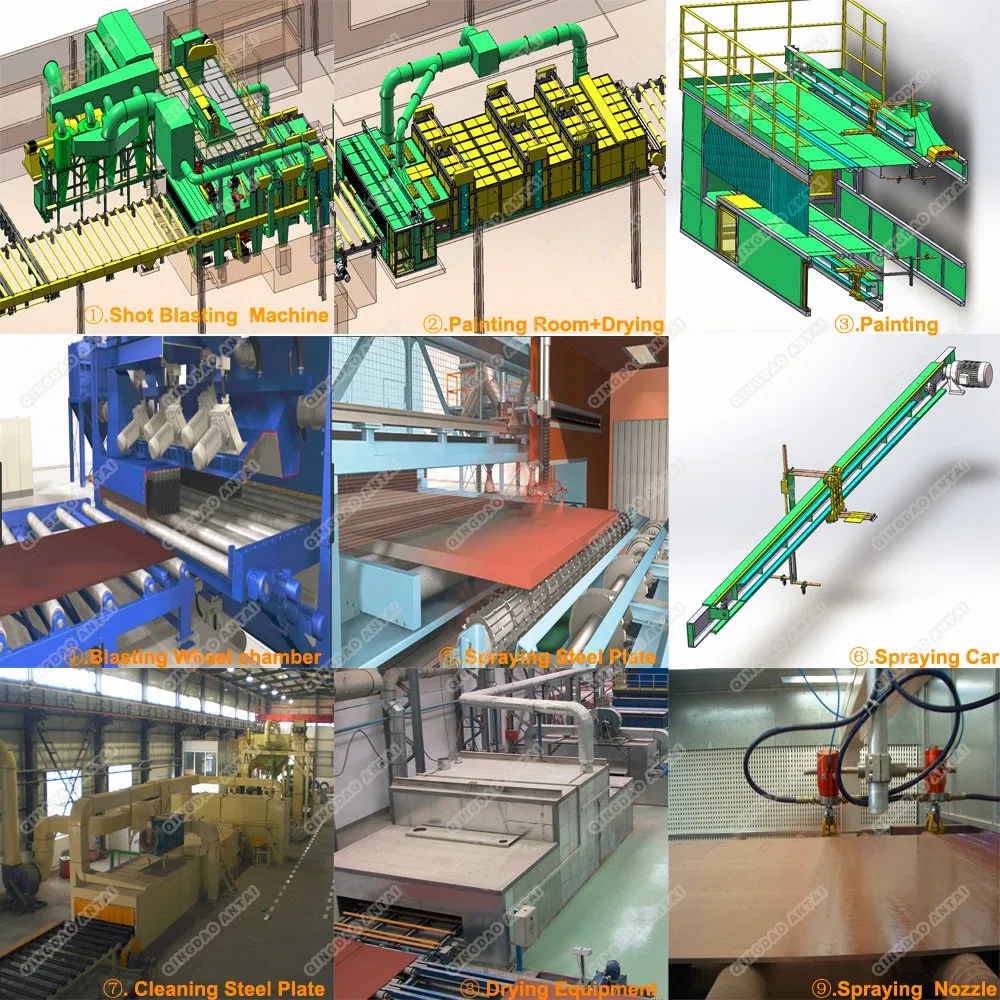

Painting Line

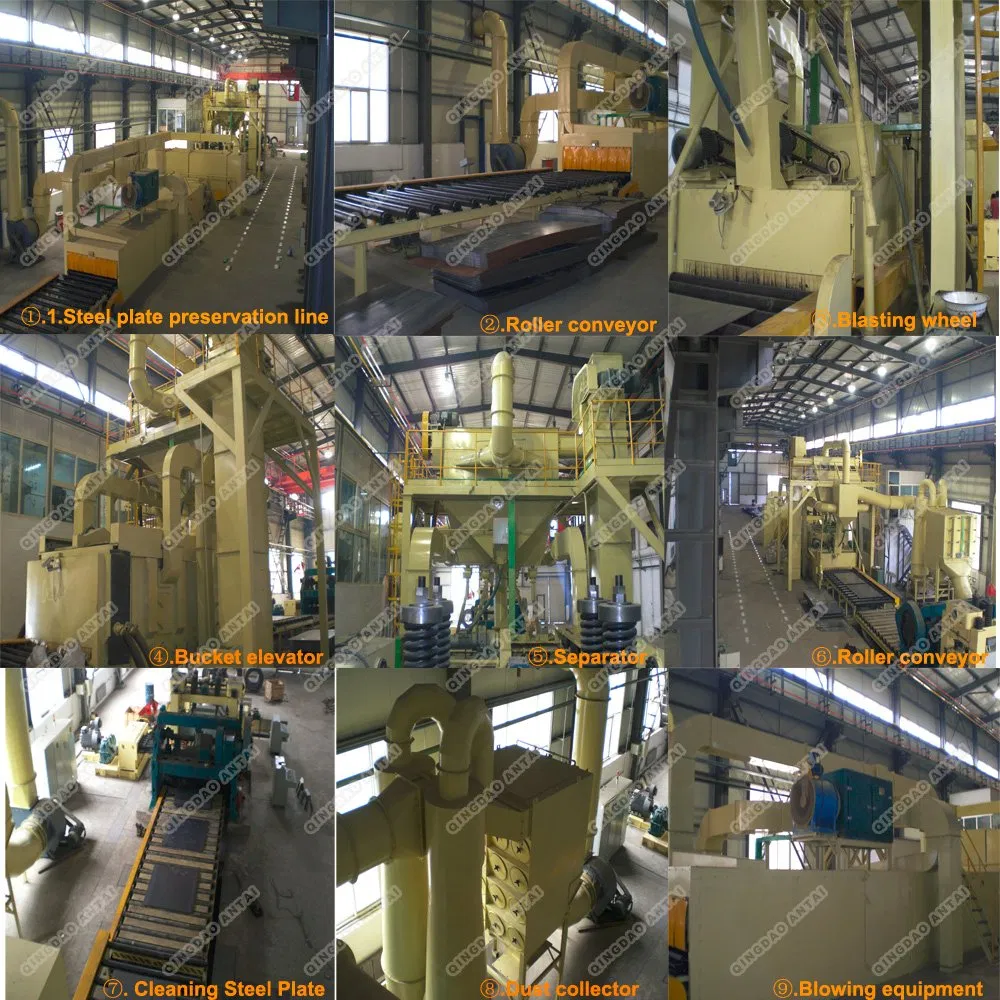

Surface Cleaning

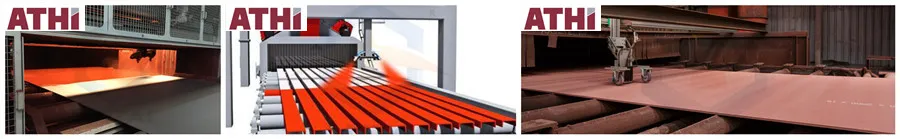

Roller Conveyor

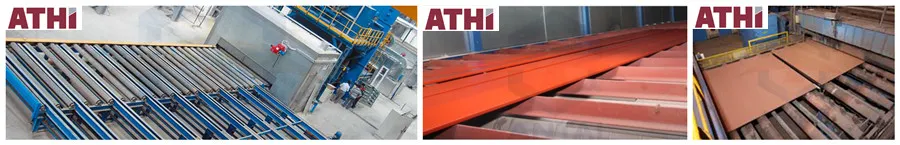

Equipment Detail

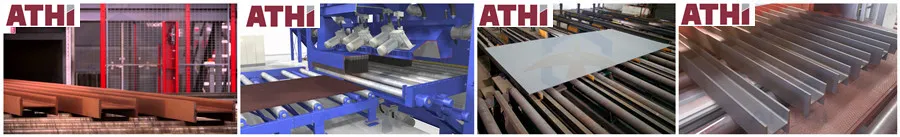

Processing View

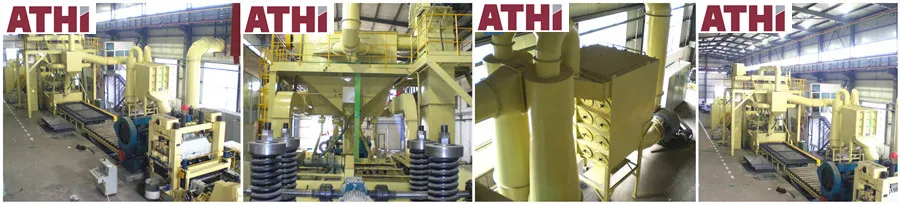

Pretreatment Project

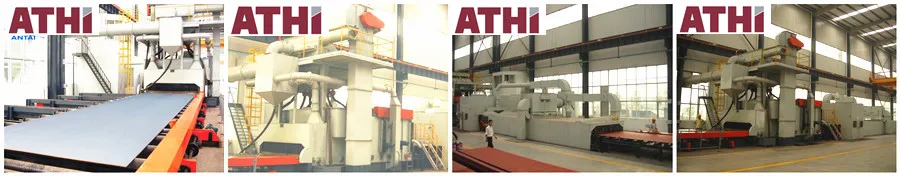

Project Overview

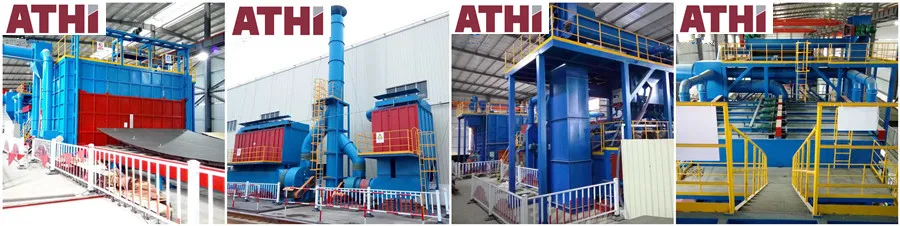

Cleaning Result

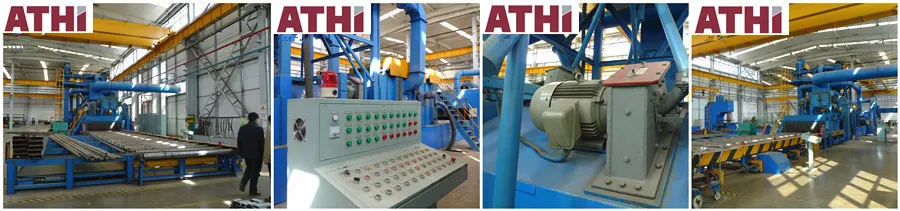

Project Gallery 1

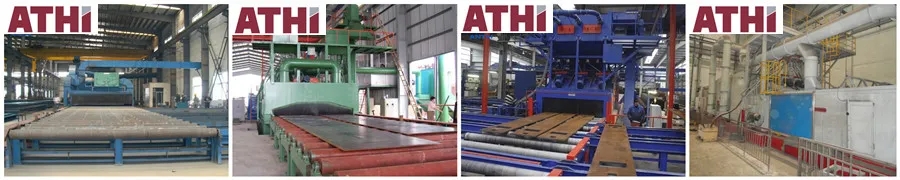

Project Gallery 2
Technical Diagram
Frequently Asked Questions
1. What materials can this preservation line process?
It is primarily designed for the surface treatment of steel plates and various structural sections, including sheet metal and beams.
2. What are the main processes included in the line?
The complete line includes preheating, shot blast cleaning (rust removal), paint spraying, and a final drying stage.
3. How is the spraying process handled?
The machine utilizes a high-pressure airless spraying method to ensure an even and durable coating on the metal surface.
4. Is the equipment automated?
Yes, the entire set of equipment is fully automatic and controlled by a high-performance PLC system for precision and efficiency.
5. Can the machine be customized for specific dimensions?
Yes, different sizes and specifications of the pretreatment line can be designed and manufactured based on specific operational requirements.
6. What certifications does this equipment hold?
The preservation line is certified by CE and complies with BV, TUV, and ISO9001:2008 standards.
