Wire Mesh Belt Type Aluminum Parts Shot Blasting Cleaning Machine

Customization: Available
After-sales Service: Yes
Warranty: 5 Years

Product Description

📋 Basic Information
Model NO.
DTWD-0616
Application
Electronic Industry
Type
Rotary Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE
Condition
New
Customized
Customized
OEM/ODM
Welcome
MOQ
1 Set
Total Power
129 Kw
Production Efficiency
0.5-3.5m/Min
Transport Package
Export Packing
Specification
1800*580*640mm
Origin
China
Production Capacity
300 sets/Year
🔍 Product Description

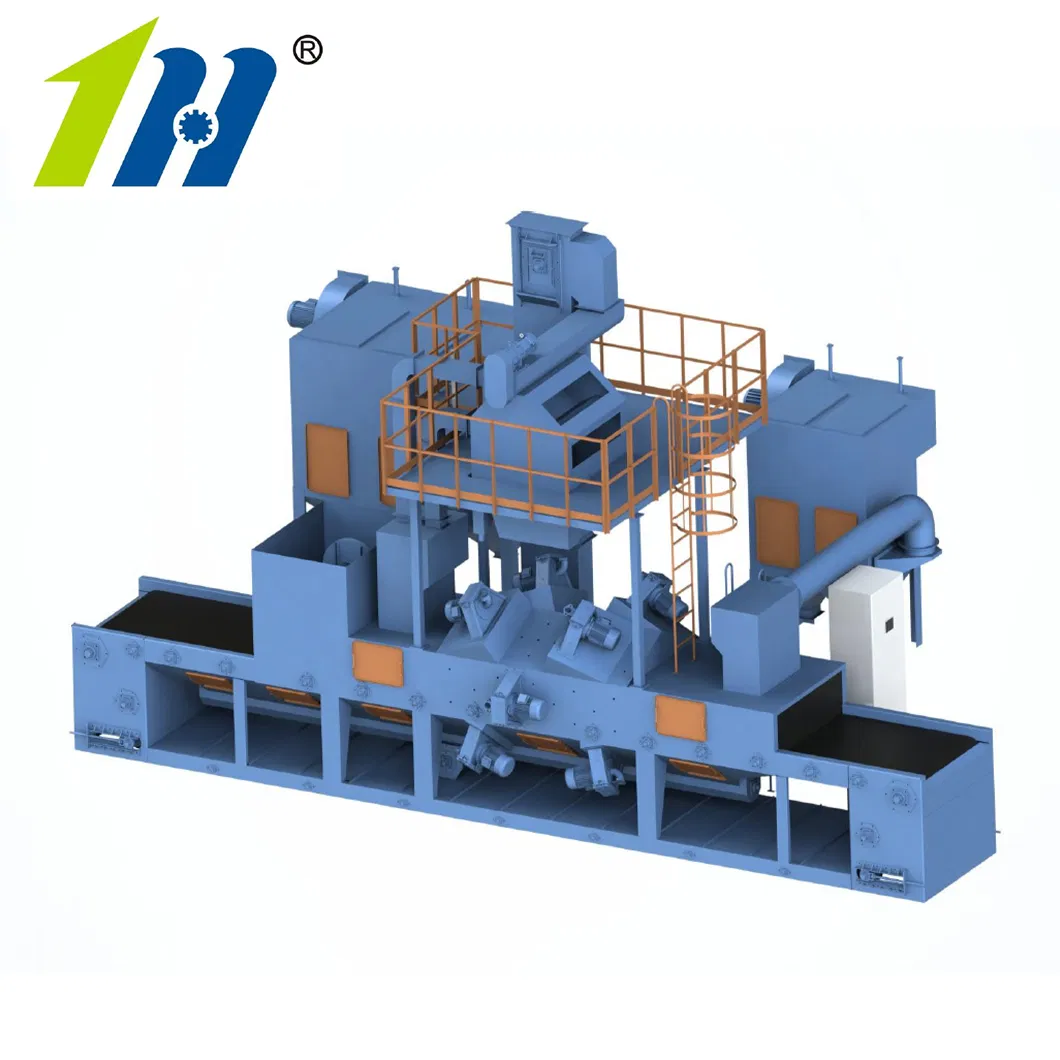

Shot Blasting Machine View 1
Shot Blasting Machine View 2

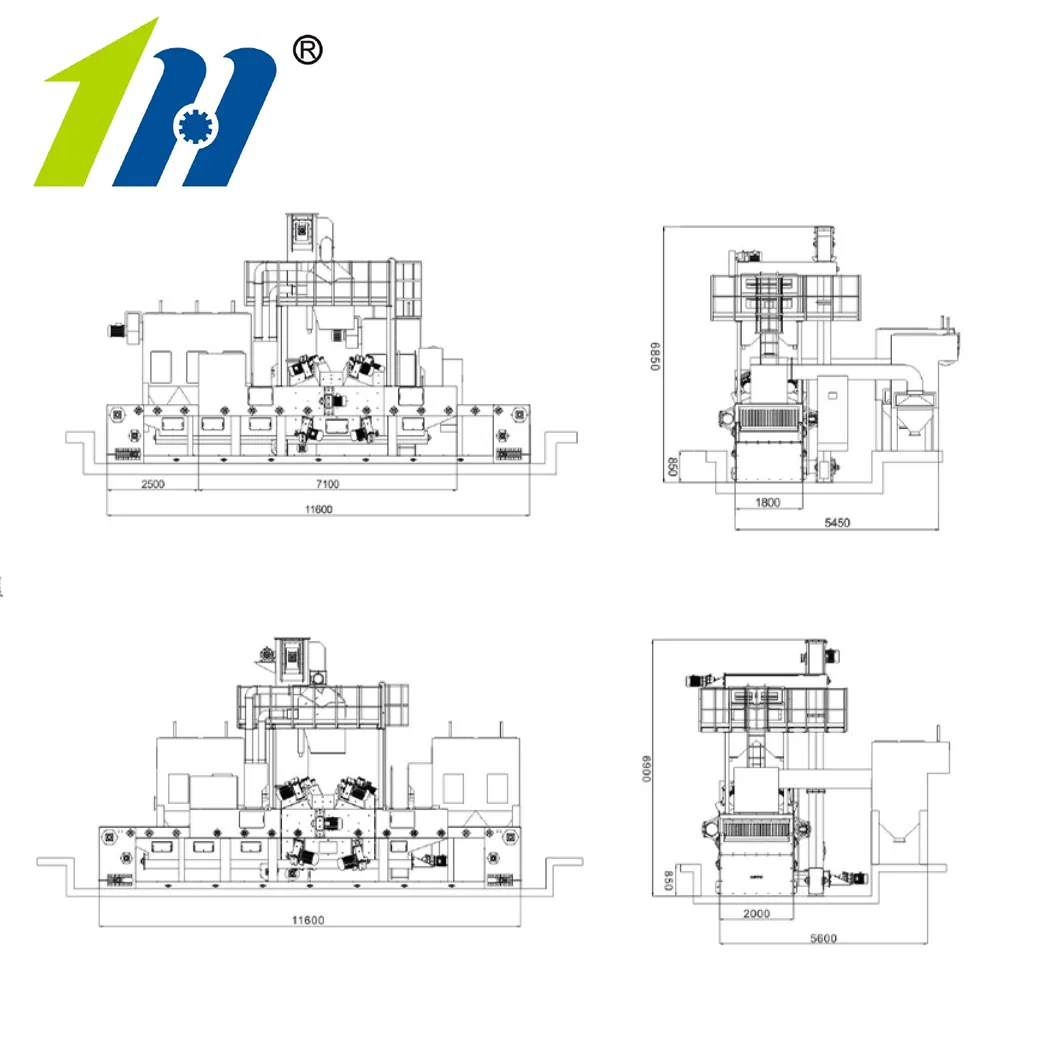

Shot Blasting Machine View 3

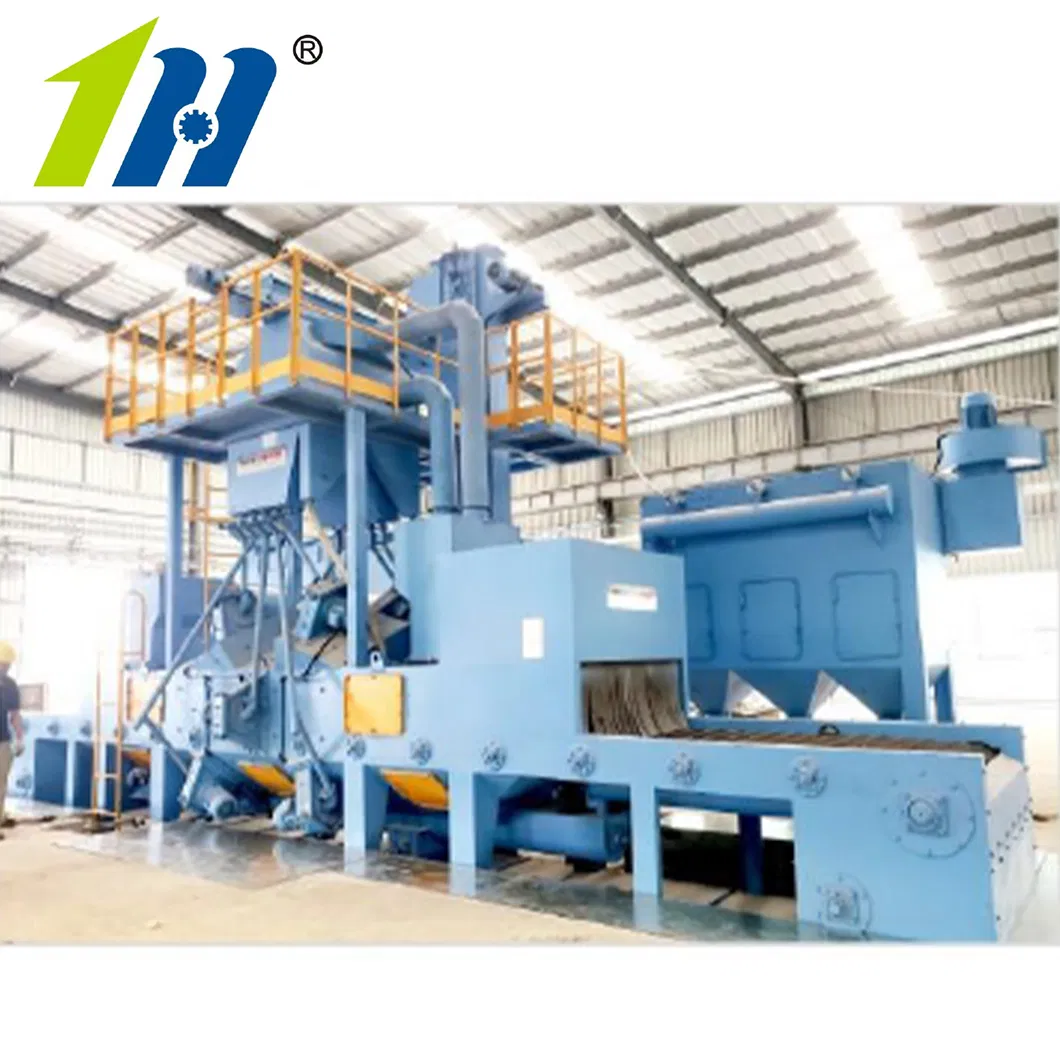

Aluminum Parts Cleaning 1

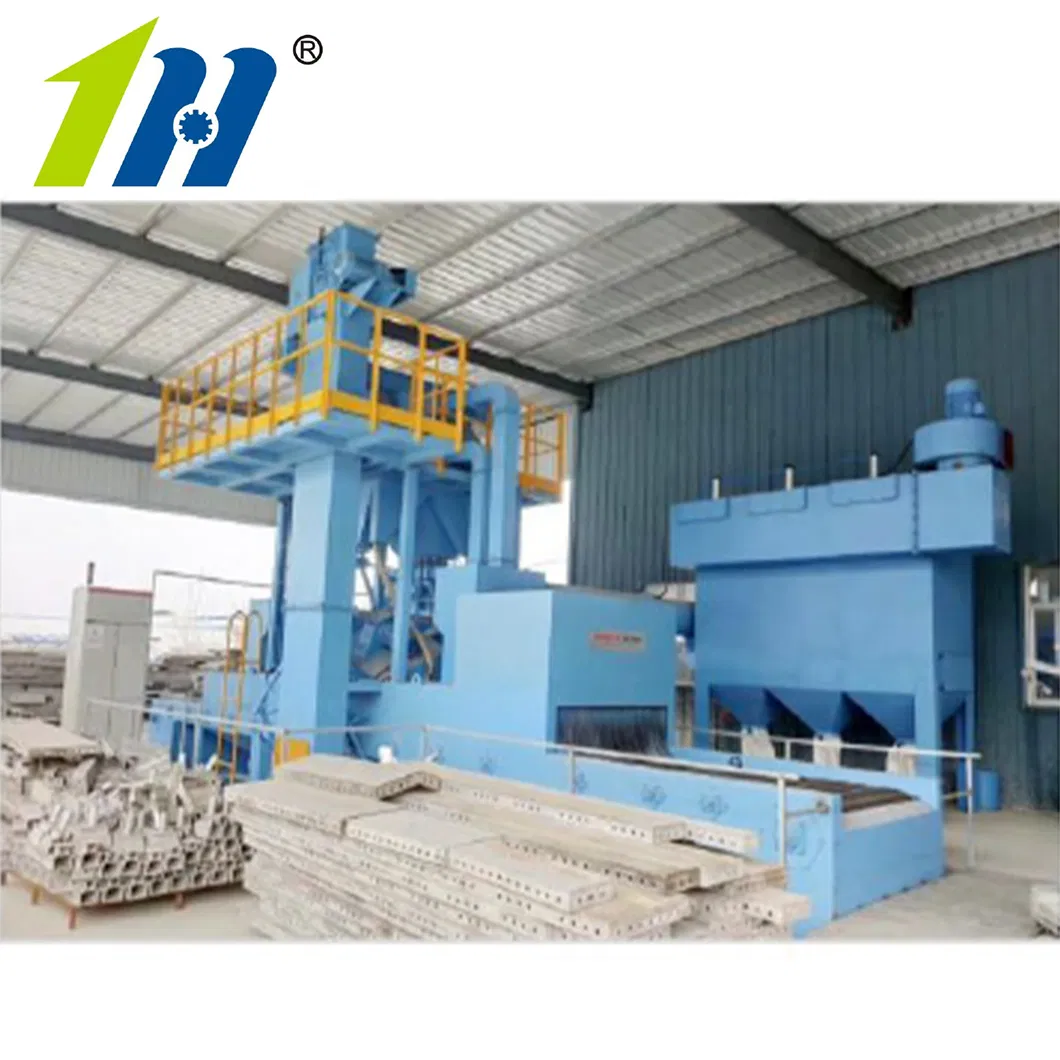

Aluminum Parts Cleaning 2

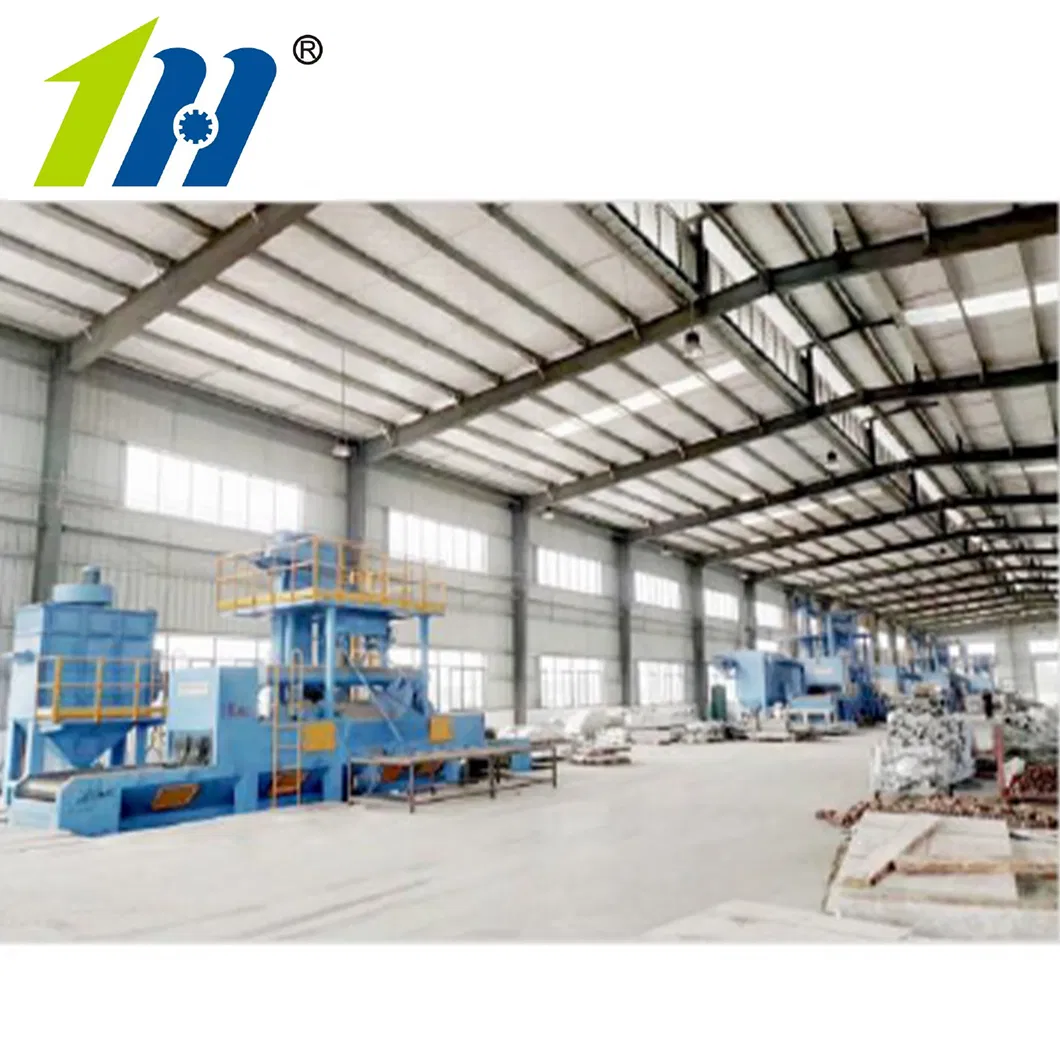

Equipment Detail 1

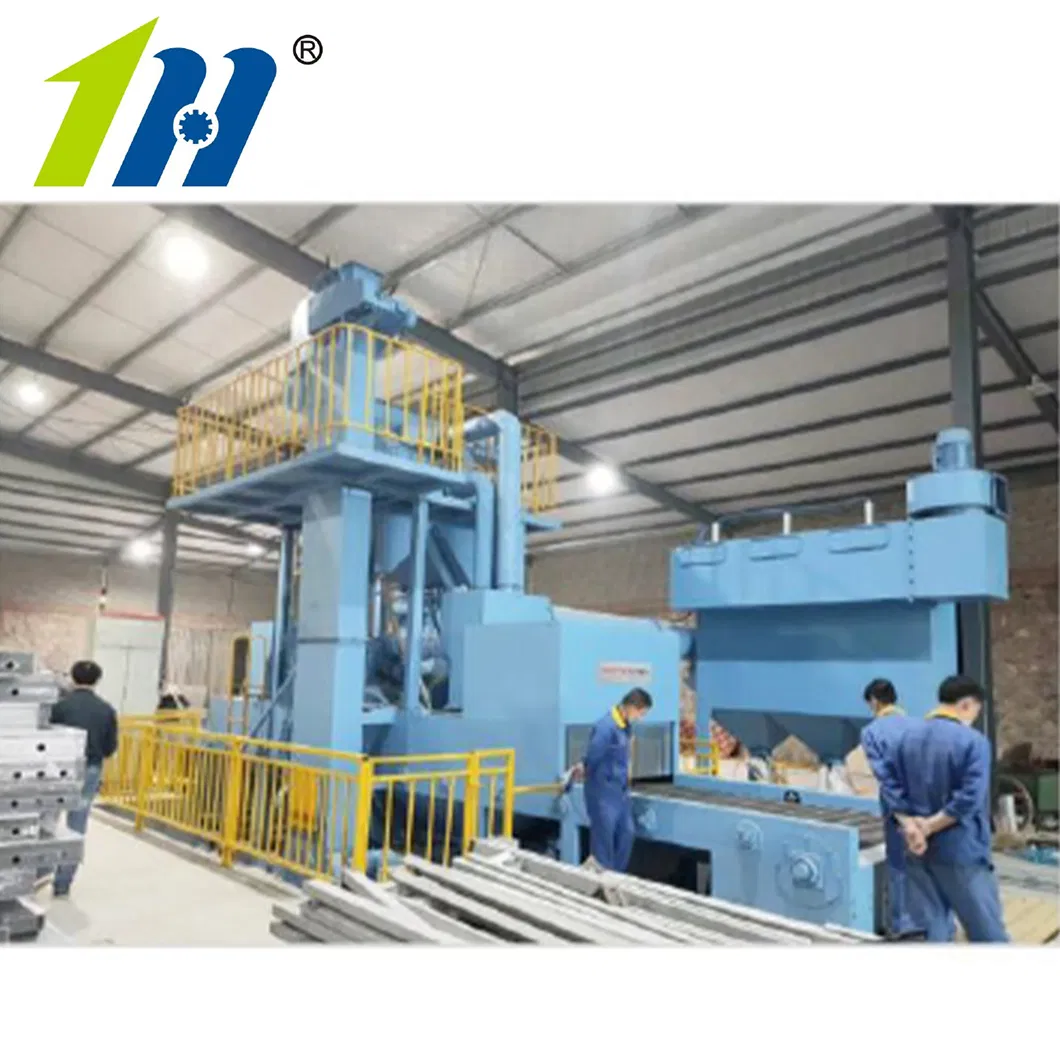

Equipment Detail 2
Technical Specifications Equipment Parameters
Model DTWD-0616 Handling Products Aluminum alloy formwork
Processing Capacity 800-1200m²/day Production Efficiency 0.5-3.5m/min
Cleaning Door Size W1550×H600mm Effective Cleaning Size W1300×H350mm
Total Power 129 kw Noise Level ≤85dB
Dust Emission ≤80mg/m³ Total Air Consumption 3.2-6.5m³/min
System Component Specification/Power System Component Specification/Power
Feeding Conveyor 2000mm Dust Removal System 15+7.5kw
Unloading Conveyor 2400mm Pellet Ash Separation 4kw
Chamber Delivery 6600mm Bucket Elevator 7.5kw
Pill Feeding Tube φ60mm Screw Conveyor 5.5kw / 4kw
Shot Blasting Room Mn13 Fenders Efficient Shot Blaster 10x7.5kw
Electrical Control Siemens PLC Cleaning Mechanism 7.5kw
🎖 Certifications
Certification Documents
🏭 Factory & Production

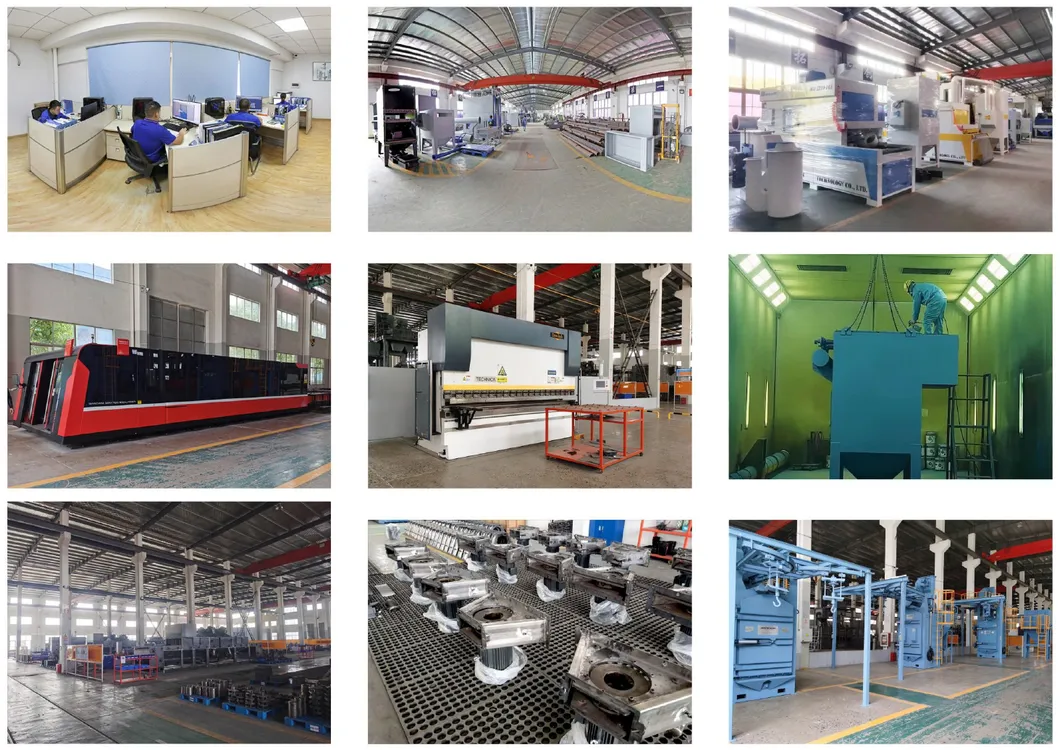

Factory Overview

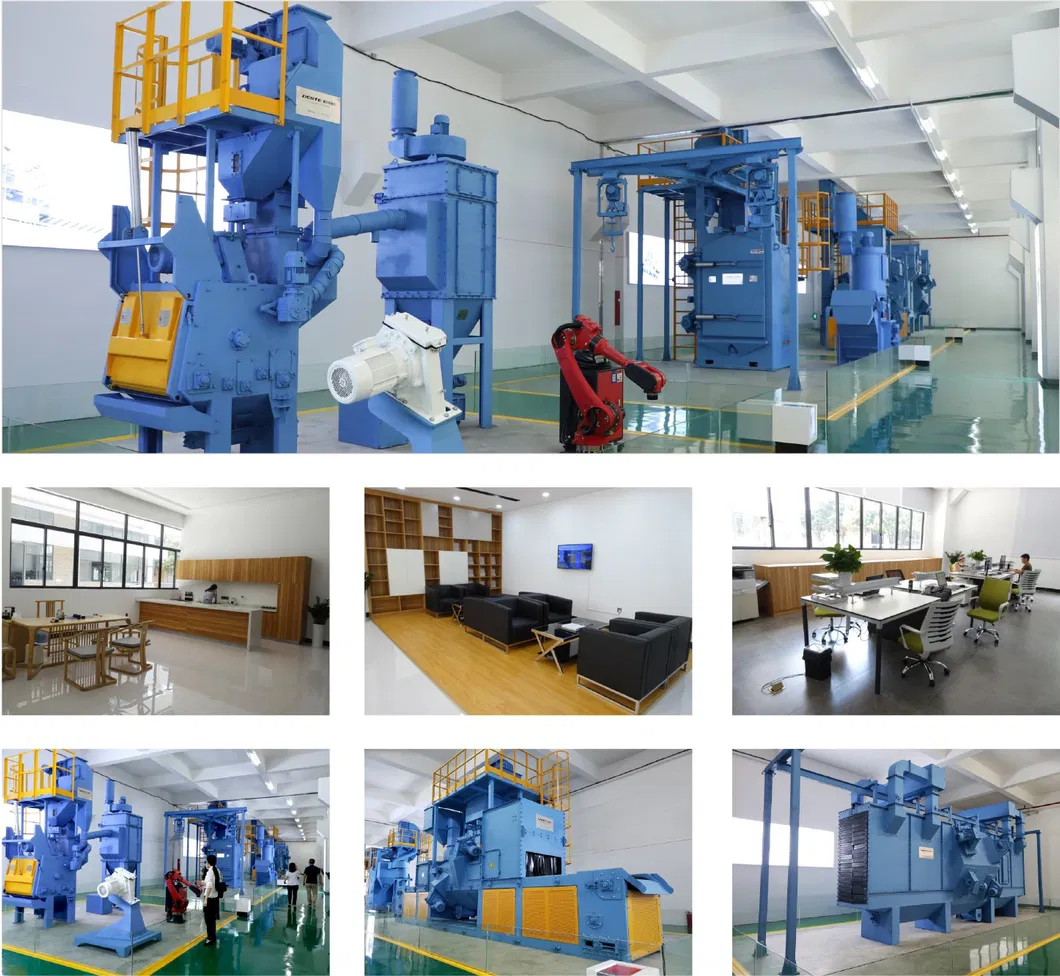

Production Line 1

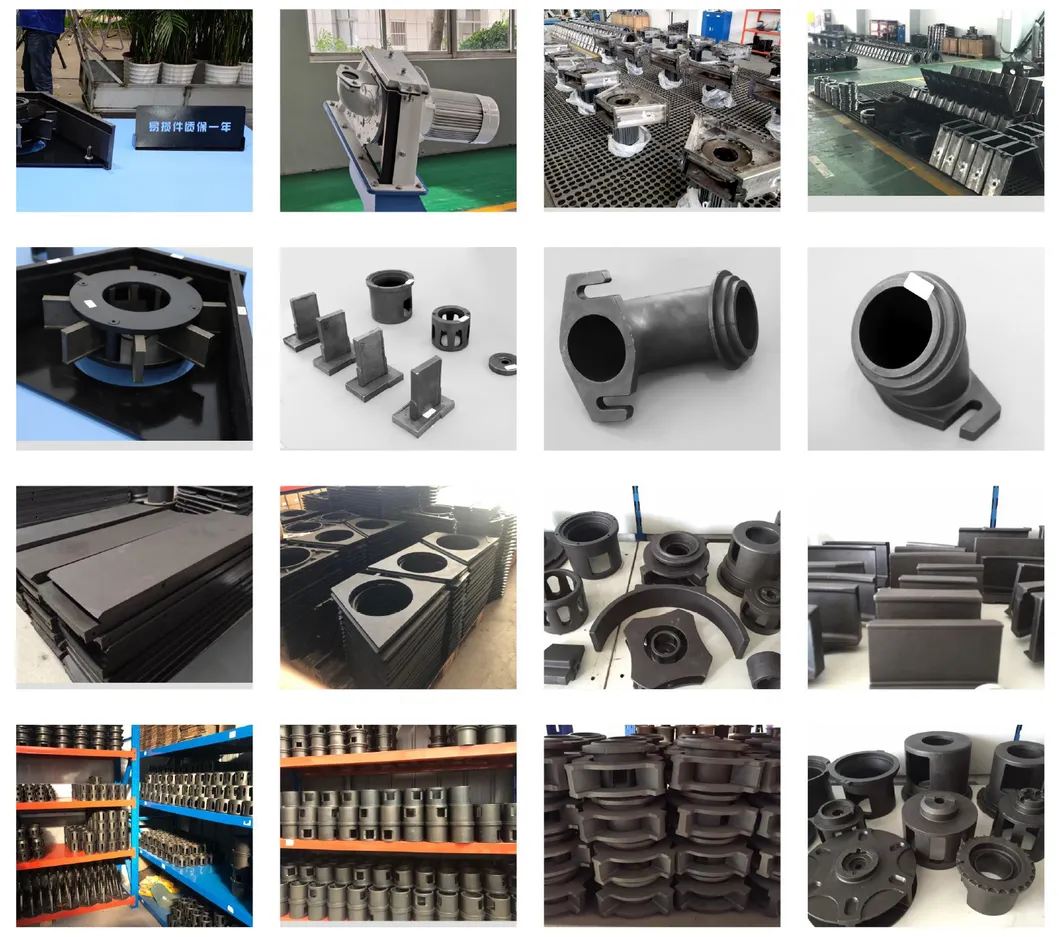

Production Line 2
❓ Frequently Asked Questions
What is the standard packaging and shipping method?
We use professional export packing or customized packaging based on your specific requirements. Shipping is handled by professional goods forwarders to ensure safety.
How long is the delivery time for the equipment?
If the specific model is in stock, delivery typically takes 3-5 days. For custom orders or non-stock items, the production lead time is generally 15-20 days.
What information is needed to receive a detailed technical proposal?
Please provide the workpiece material, maximum and minimum dimensions (length, width, height), weight of the heaviest part, and your required daily or monthly cleaning capacity.
What are the key technical advantages of the DTWD-0616?
This model offers high cleanliness with a production efficiency of 0.5-3.5m/min, features a Siemens PLC touch screen control system, and maintains low noise levels (≤85dB) and dust emissions (≤80mg/m³).
Can the machine be customized for specific workpiece sizes?
Yes, the machine supports customization. While the standard effective cleaning size is W1300×H350mm, we can discuss modifications based on your specific industrial needs.
What kind of control system does the equipment use?
The equipment is integrated with a high-performance electrical control system featuring a Siemens PLC and an intuitive touch screen interface for easy operation and monitoring.
