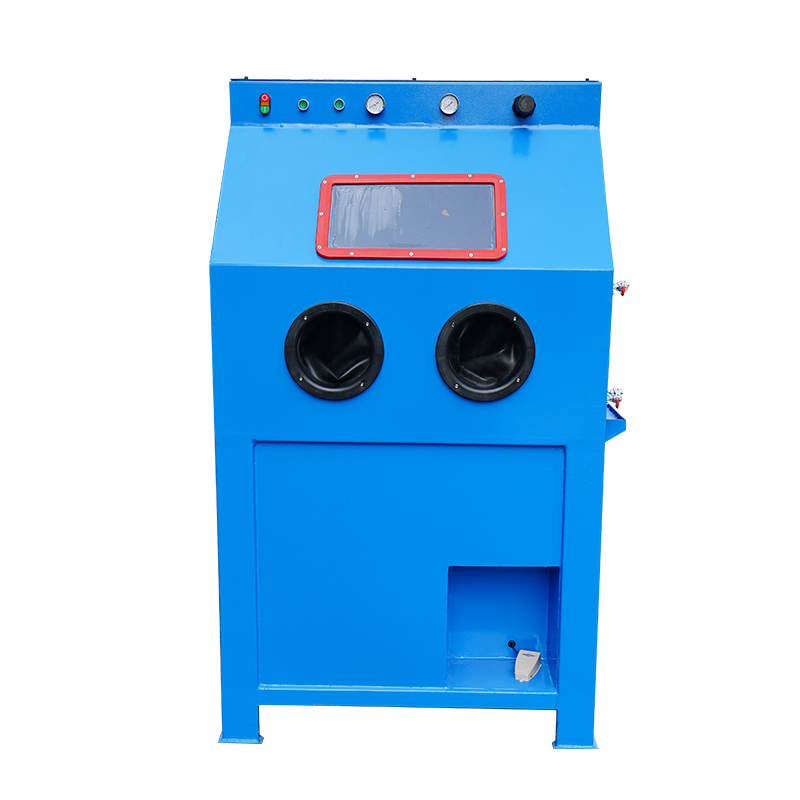

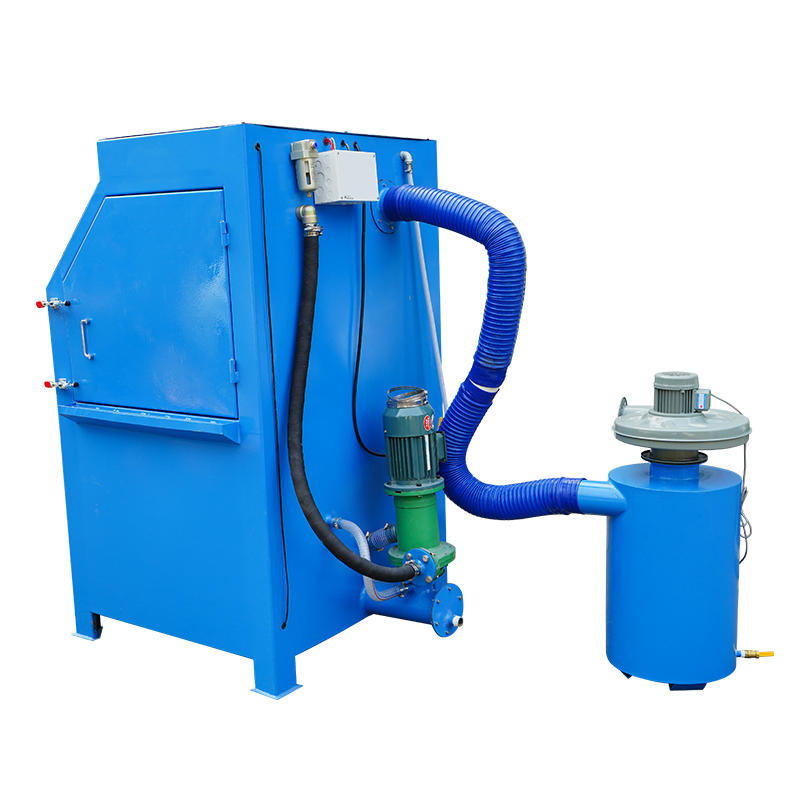

Water Sand Blasting Cabinet Wet Sandbasting Machine for Mould Cleaning

Customization: Available
After-sales Service: 1 Year Warranty
Warranty: 1 Year

Product Description

📋 Basic Information
Model NO.
KF-1212W
Drive
Pneumatic
Principle
Press-in
Control
Artificial
Layout
Vertical
Automation
Manual
Kind
Wet Sandblaster
Certification
CE
Product
Wet Sand Blasting Cabinet
Outer Size
1300*1600*2000mm
Working Area
1200*1200*800mm
Motor
2.2kw
Air Requirement
Flow 0.5-1.1m^3/Min
Voltage
380V/220V 3 Phase (Customized)
🔍 Product Description

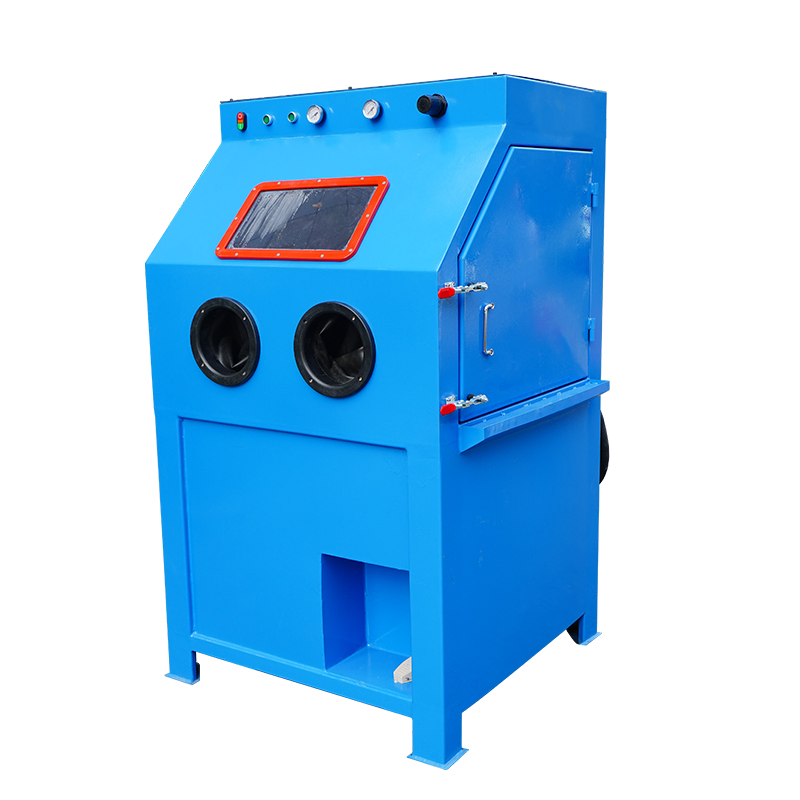

Water Sand Blasting Cabinet Wet Sandbasting Machine for Mould Cleaning

Wet sandblasting cabinet, also called dustless blasting machine, the water sandblaster blast water and abrasive mixture to the target, attain the purpose of removing rust, contaminants and other imperfections.

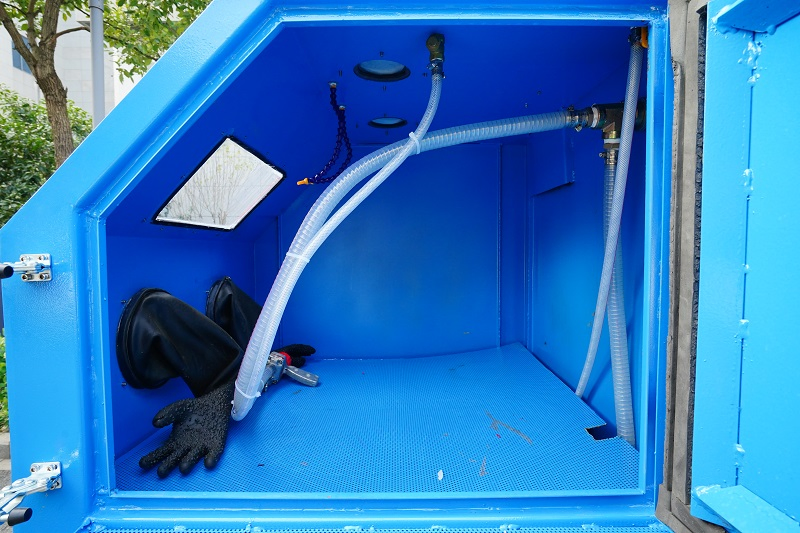

Wet blasting machine creates dustfree working chamber, with waters function, it makes the workparts cleaner and brightner, also very ideal for precise and delicate parts, it is an innovative blasting machine.

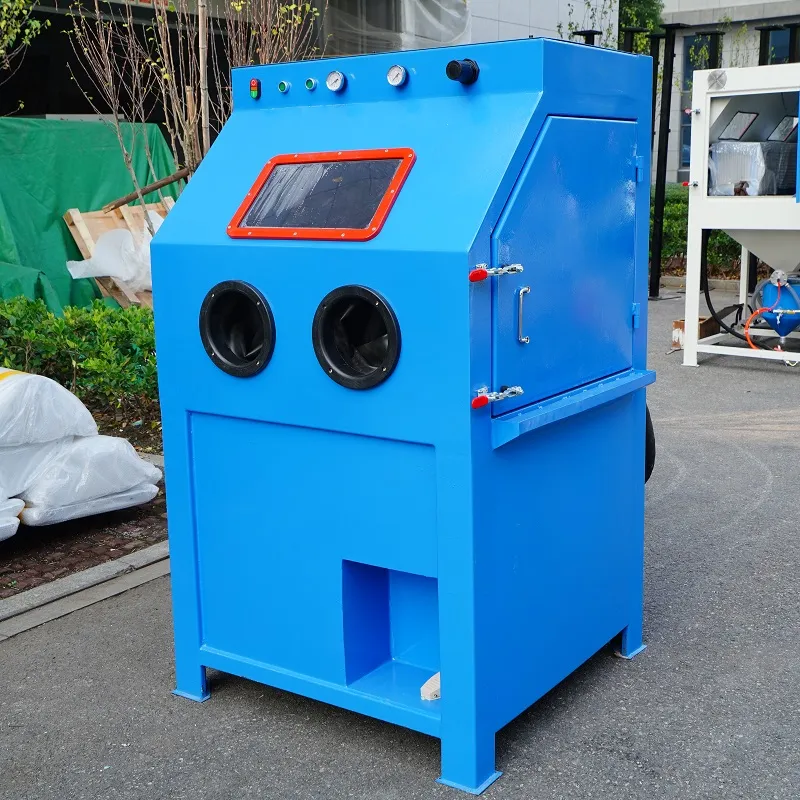

Wet Sand Blasting Machine

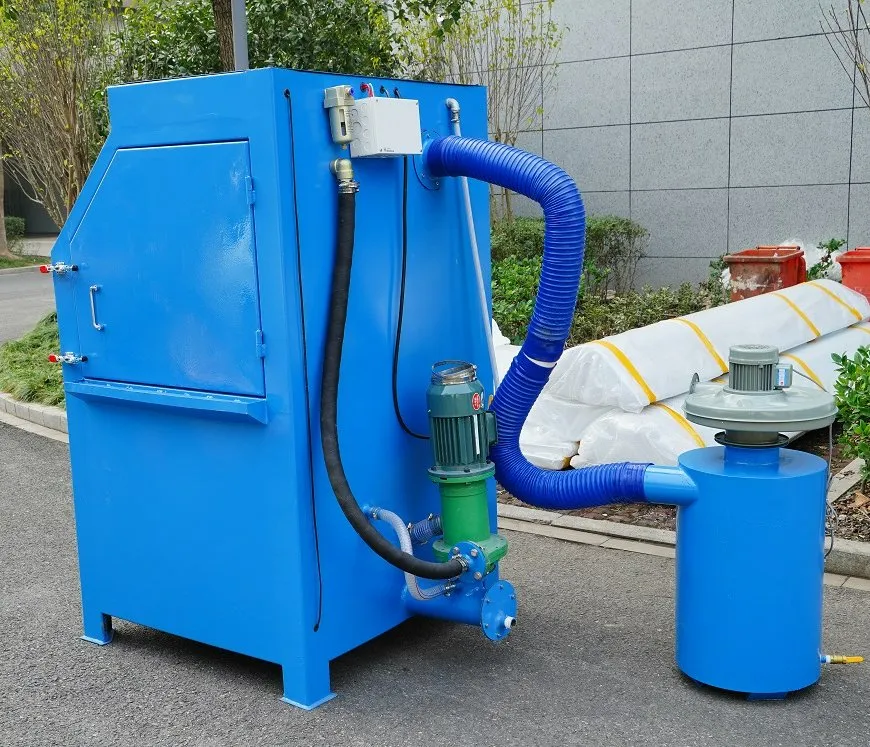

Wet Sand Blasting Cabinet
Mould Cleaning Machine

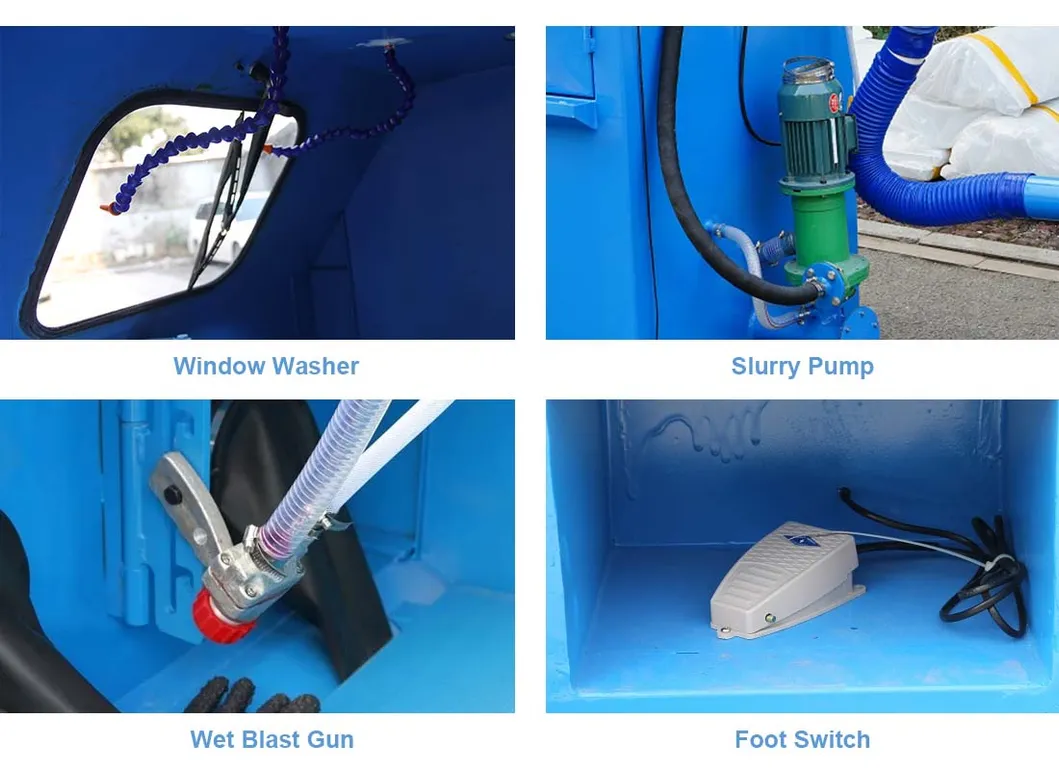

⭐ Detail Features
  • Made 3mm thick stainless steel with powder-coated surface, rigid and anti-rust.
  • Low voltage windscreen wiper and wash facility to maintain visibility throughout.

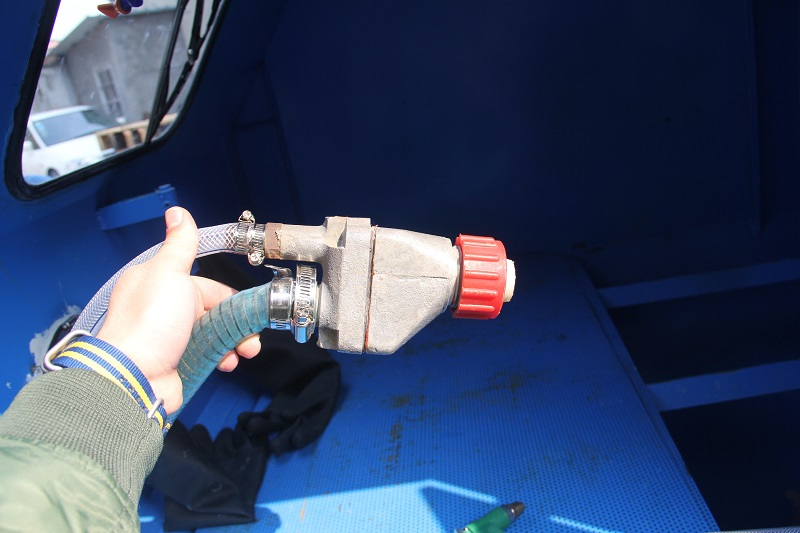

  • Durable wet blast gun with 8mm boron carbide nozzles specially for wet blasting process.
  • Reliable foot pedal controls the working of blast gun to increase operation safety.
  • A demister at the back of the machine for better view of blasting process.
  • Abrasive can be effectively recycled that causes less consumption.
  • Simple structured wet blast cabinet requires less maintenance.
Wet Sandblasting Features
📊 Specifications
ModelKF-1212W
Outer sizeLength1300 * Width1600 * Height2000mm
Working areaLength1200 * Width1200 * Height800mm
Motor2.2Kw
Air requirementFlow 0.5-1.1m^3/min
Light2*18w saving lamps
Blast Gun1 pc of wet blast gun with 1 boron cabide nozzle (8mm)
Air consumption for 1 gun0.4-0.8Mbar
Volume of abrasive & water25L
Suitable abrasiveGlass beads, Brown Aluminum Oxide (80#-320#)
Feed abrasive4-6kg
Abrasive : Water1:03
🚀 Applications
  • Perfect for motors, cylinder heads, sub-sea components, aviation parts, crank cases, wheel hubs, suspension parts, bolts, master cylinders, brake calipers and valuable restoration projects.
  • The gentle cleaning action of Water Blasting is not limited to metals and cleans exceptionally well with plastics and rubbers.

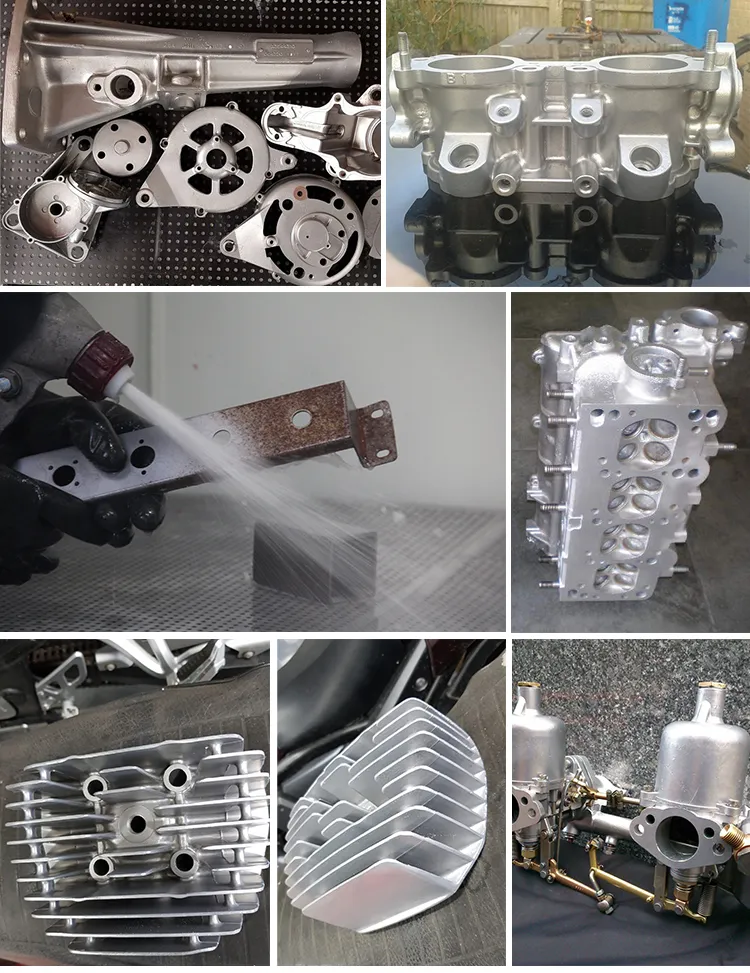

Wet Blasting Applications
📋 Standard Models for Choice
Model Working size Weight Loading Capacity
KF-1610W (double gun)1600*1000*800mm320kgs100-140kgs
KF-1010W1000*1000*800mm300kgs50-80kgs
KF-9080W900*900*800mm280kgs30-50kgs

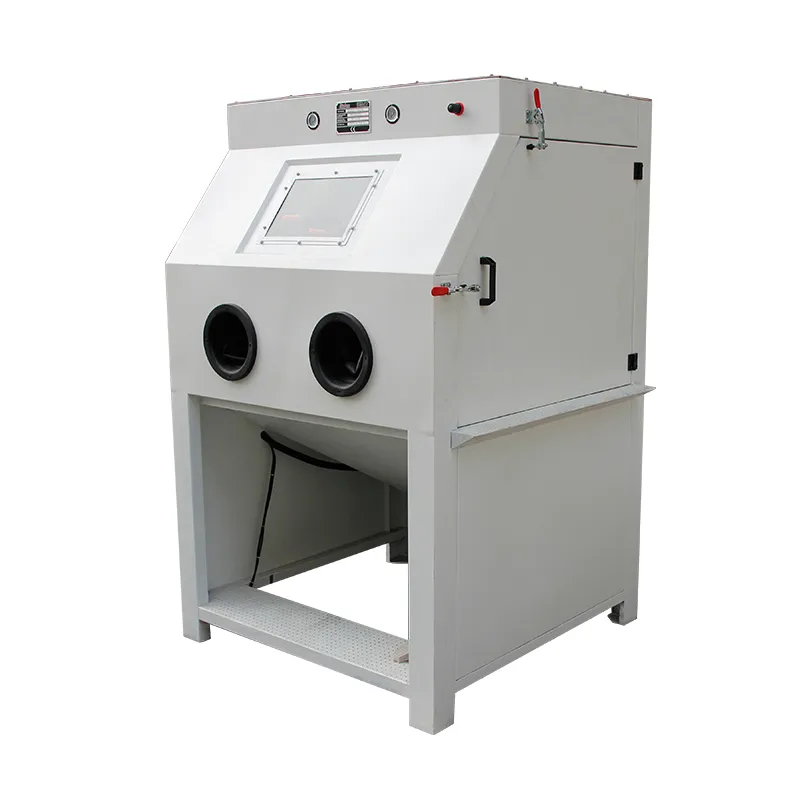

Model A

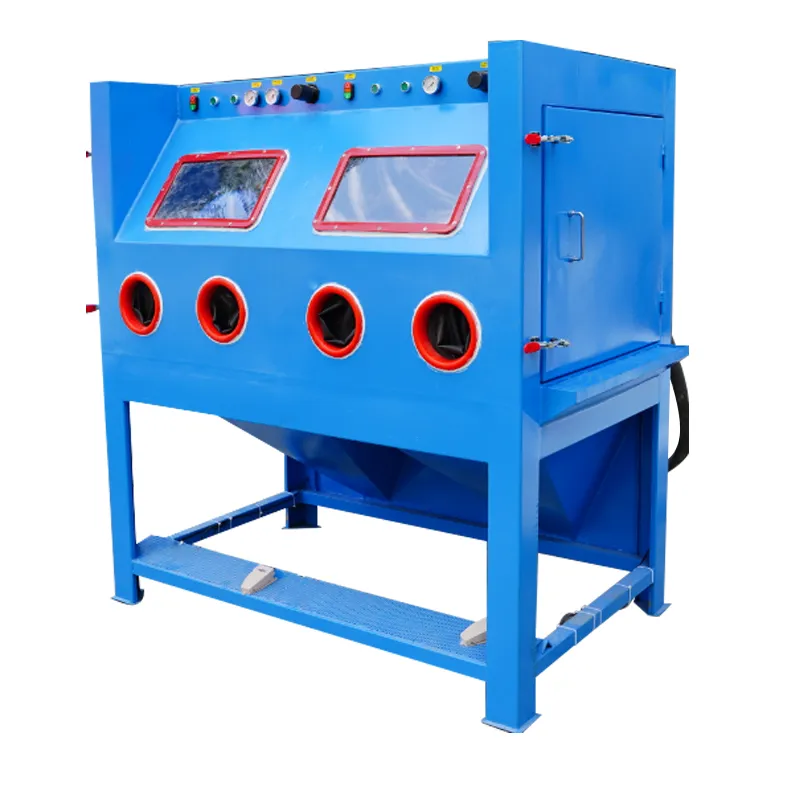

Model B

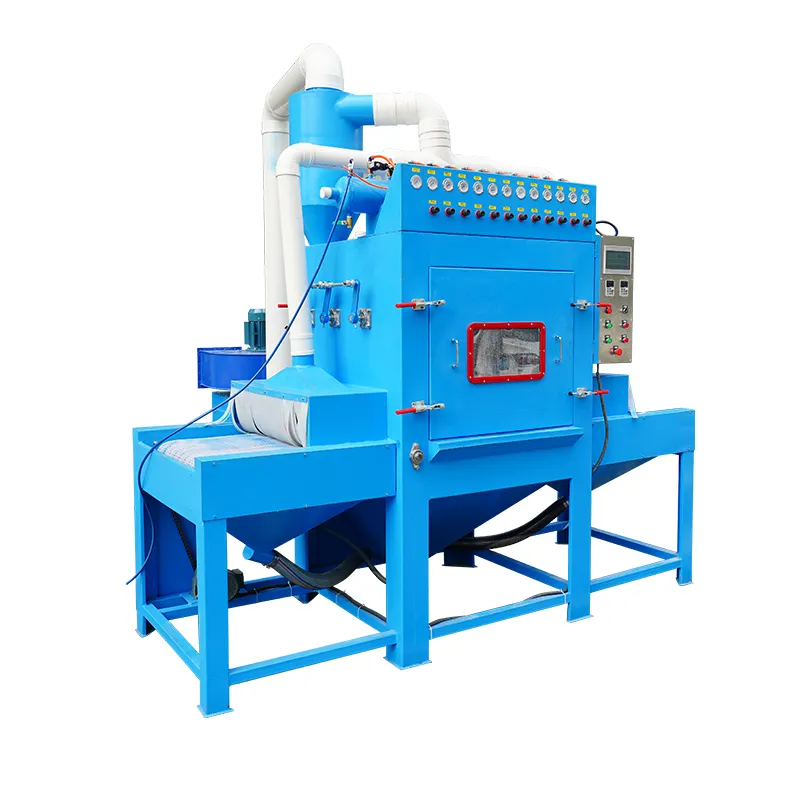

Model C
🏢 Company Profile
Factory Overview

We have attracted more and more world customers come to visit us for new establishment and further cooperation. Please contact us for help with your surface finishing application. We're looking forward to being of service.

Frequently Asked Questions (FAQ)
1. What is the main advantage of a wet sandblasting cabinet?
The main advantage is its dust-free operation. By mixing water with abrasives, it eliminates airborne dust, provides a cleaner finish, and is much gentler on delicate or precise parts compared to dry blasting.
2. What materials can be processed using this machine?
This machine is highly versatile. It is perfect for metals like aluminum and stainless steel (using glass beads), as well as steel (using brown aluminum oxide). It is also safe for cleaning plastics and rubbers.
3. Is the cabinet resistant to rust?
Yes, the cabinet is constructed from 3mm thick stainless steel and features a powder-coated surface to ensure long-term rigidity and anti-rust performance in a wet environment.
4. What are the air and power requirements for the KF-1212W model?
The model requires a 380V or 220V 3-phase power supply (customizable). For air, it needs a flow of 0.5-1.1m³/min with air consumption for the gun ranging between 0.4-0.8Mbar.
5. How does the abrasive recycling system work?
The wet sandblasting cabinet is designed to effectively recycle the abrasive-water mixture from the bottom of the hopper, significantly reducing media consumption and operational costs.
6. Can the machine handle heavy workpieces?
Yes, depending on the model chosen, the loading capacity ranges from 30kgs up to 140kgs. The KF-1212W is built for industrial mould cleaning and heavy-duty restoration projects.
