Q261 Air Blast Sand Blasting Cabinet for Optimal Cleaning

1 / 5

Q261 Air Blast Sand Blasting Cabinet for Optimal Cleaning

Customization:	Available
After-sales Service:	24/7 on Line
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.:

Q261

Application:

Steel Structure, Beam, Steel Plate

Fuel:

Electric

Type:

Shot Blasting Room

Cleanliness:

SA2.5

Automation:

Automatic

Certification:

CE, TUV, ISO9001

Cleaning Way:

Manual

Cleaning Speed:

20-25m²/H

PLC:

Siemens

Product Description

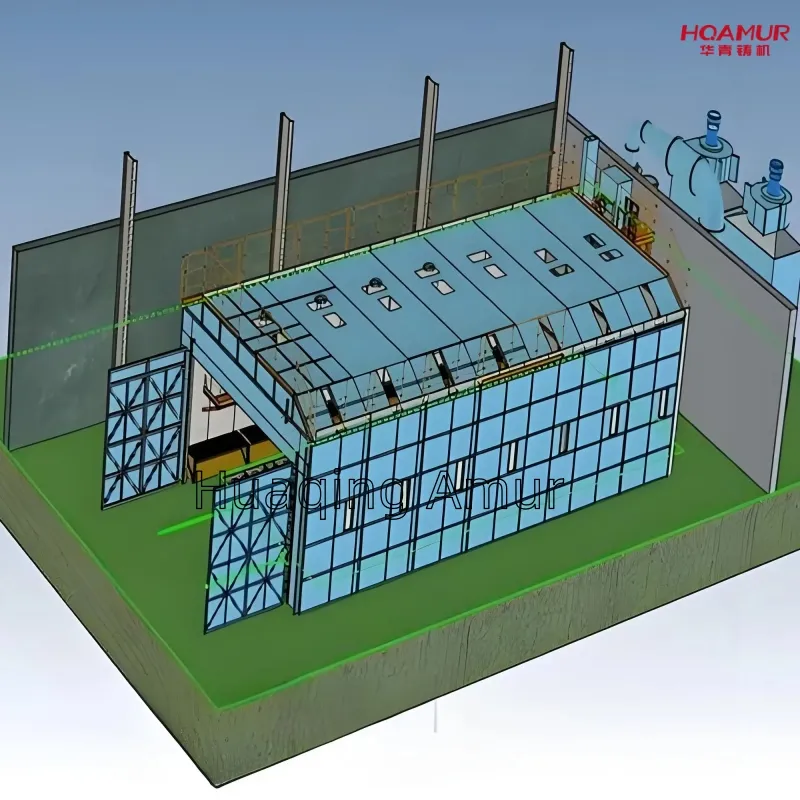

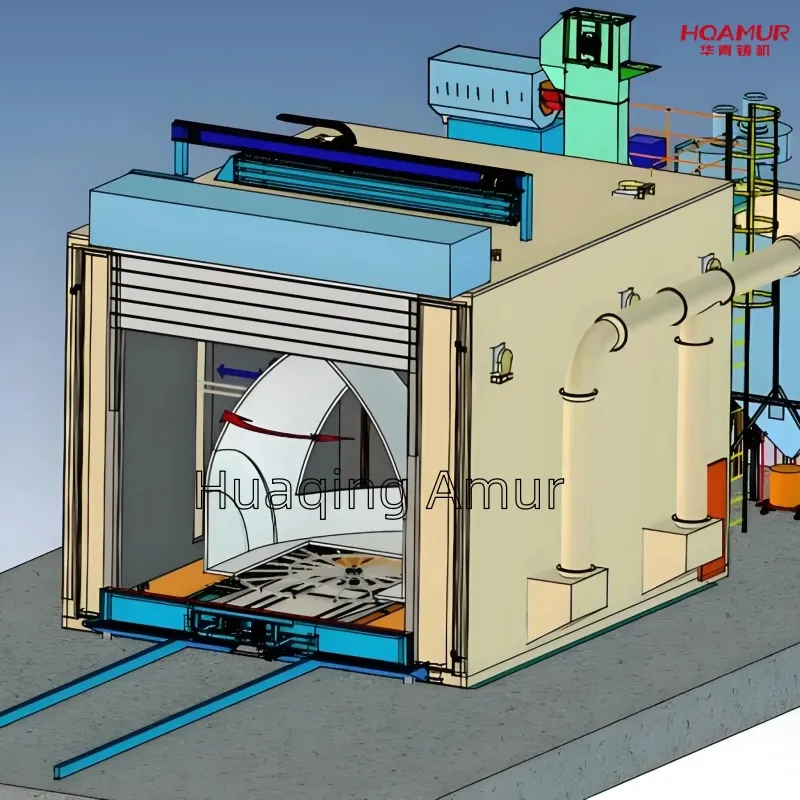

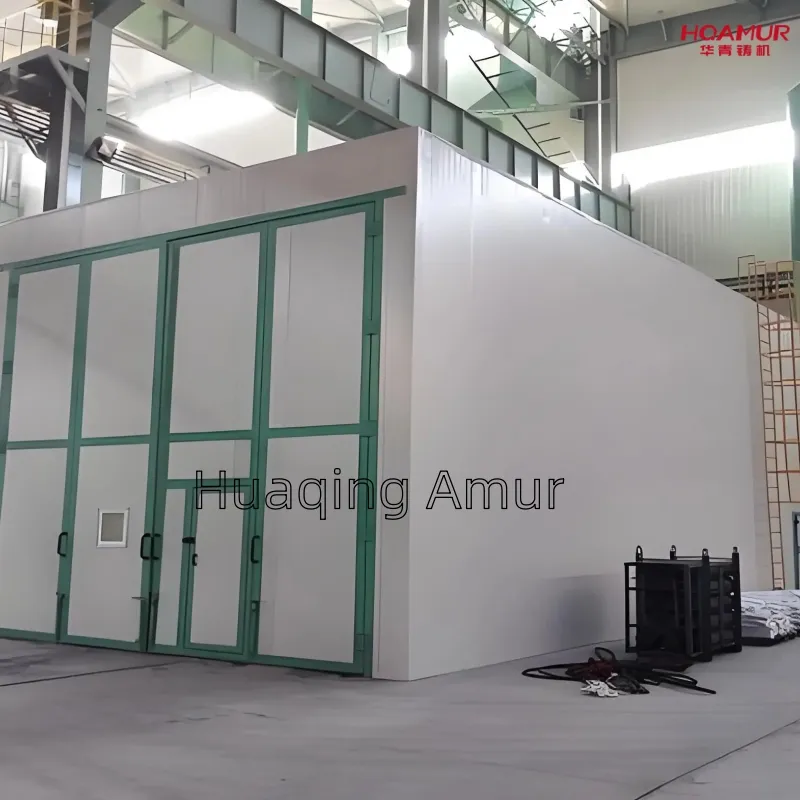

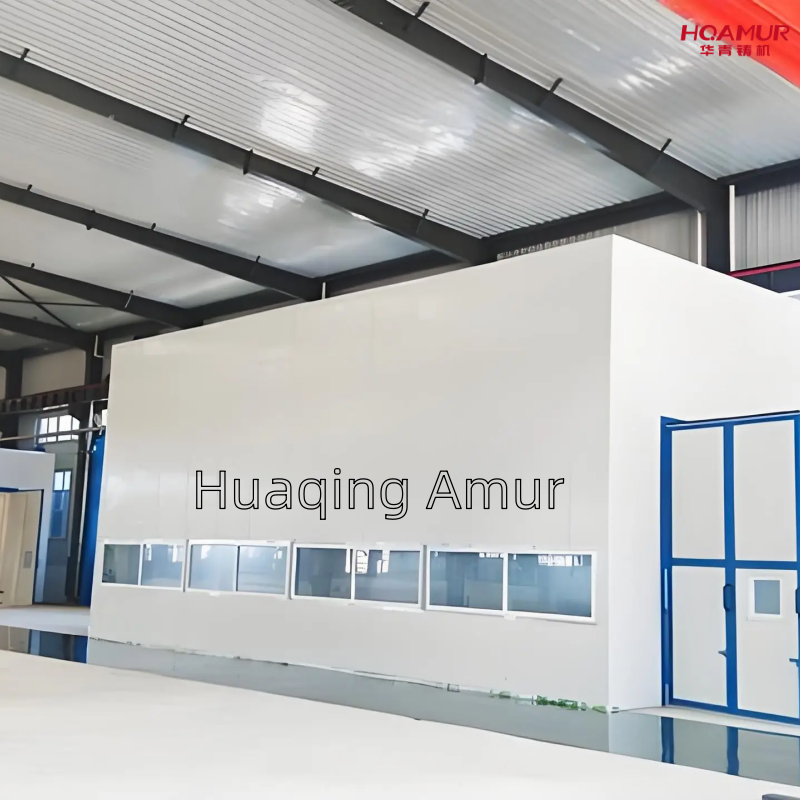

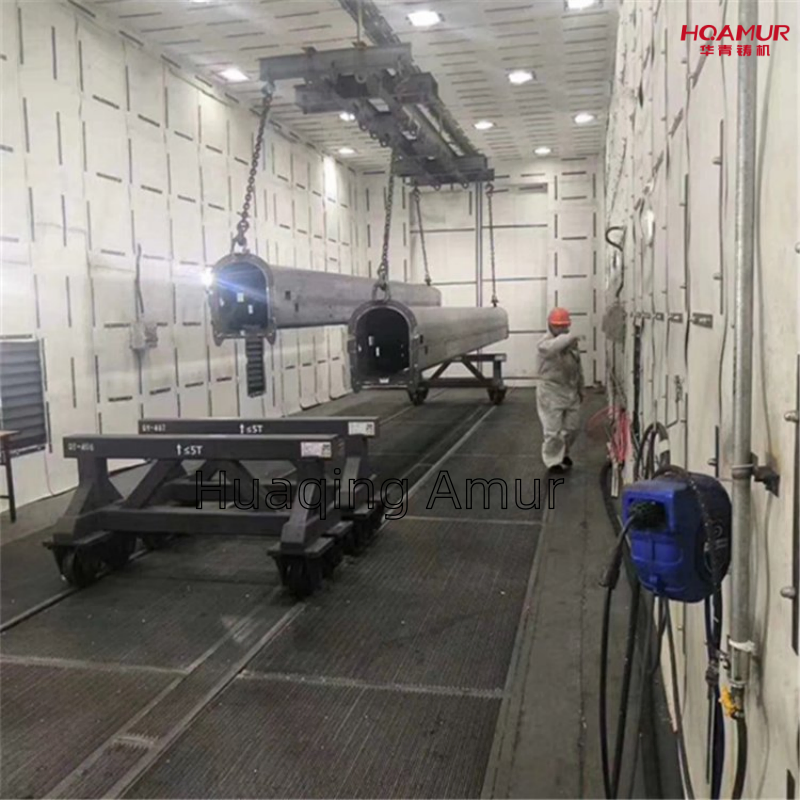

Surface Preparation Industrial Shot Blasting Room

Working Principle: The shot blast room is a large-scale enclosed surface treatment facility primarily employed for rust removal, descaling, and similar operations on oversized workpieces and irregularly shaped components.

Principal Structural Components:

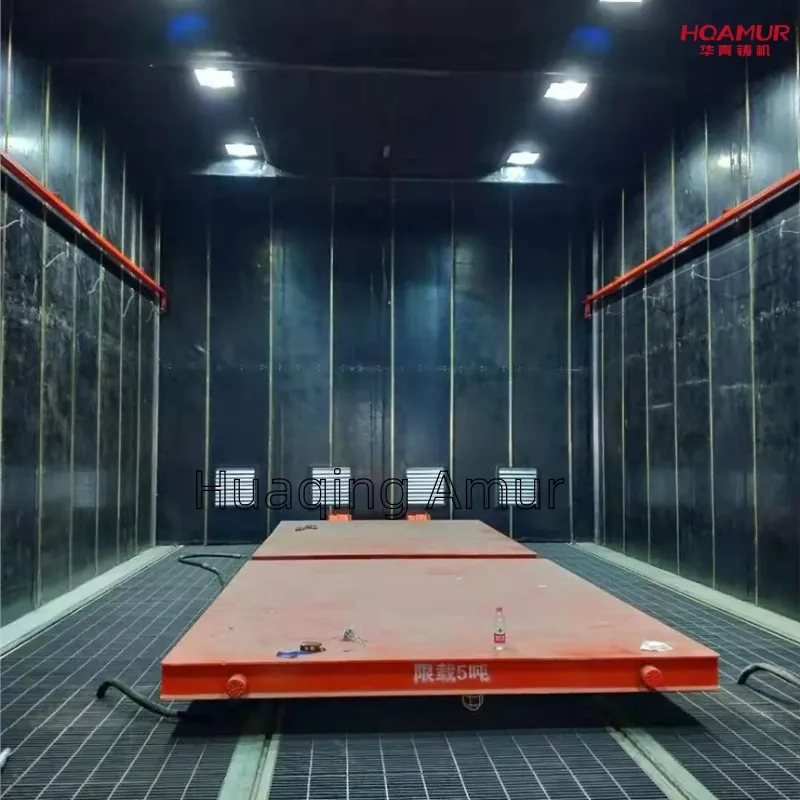

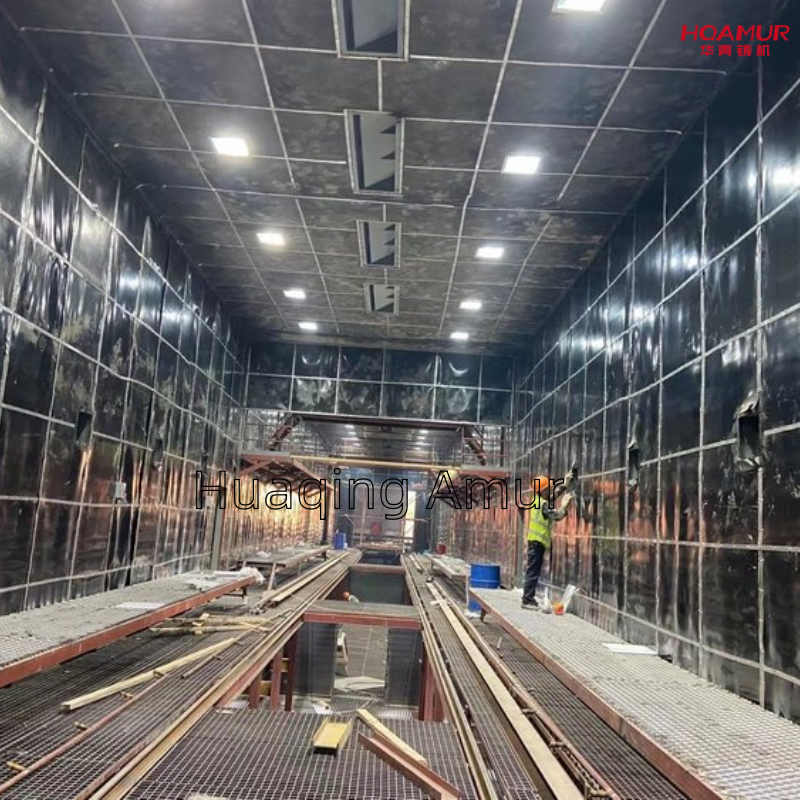

■ Cleaning Chamber Structure: Welded structural steel framework, clad with steel plate and lined with wear-resistant rubber to mitigate abrasive impact. Features explosion-proof lighting (500 lux).

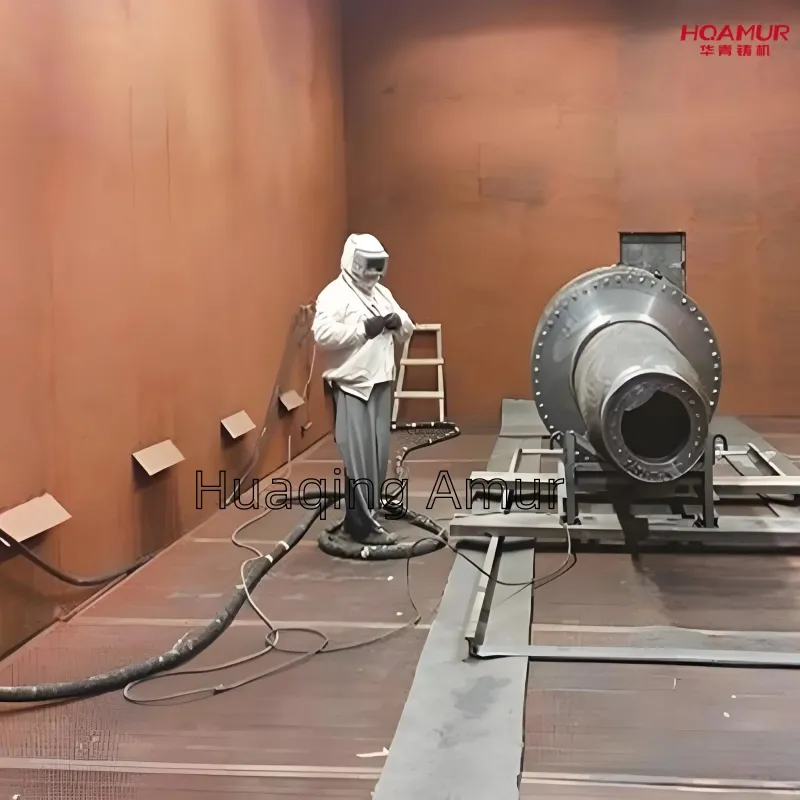

■ Blasting System: Manual and automatic gun variants available. Manual guns offer flexibility, while automatic guns on robotic arms suit batch processing.

■ Abrasive Recovery & Separation: Includes pit-type or scraper conveyor belt configurations for efficient media recycling.

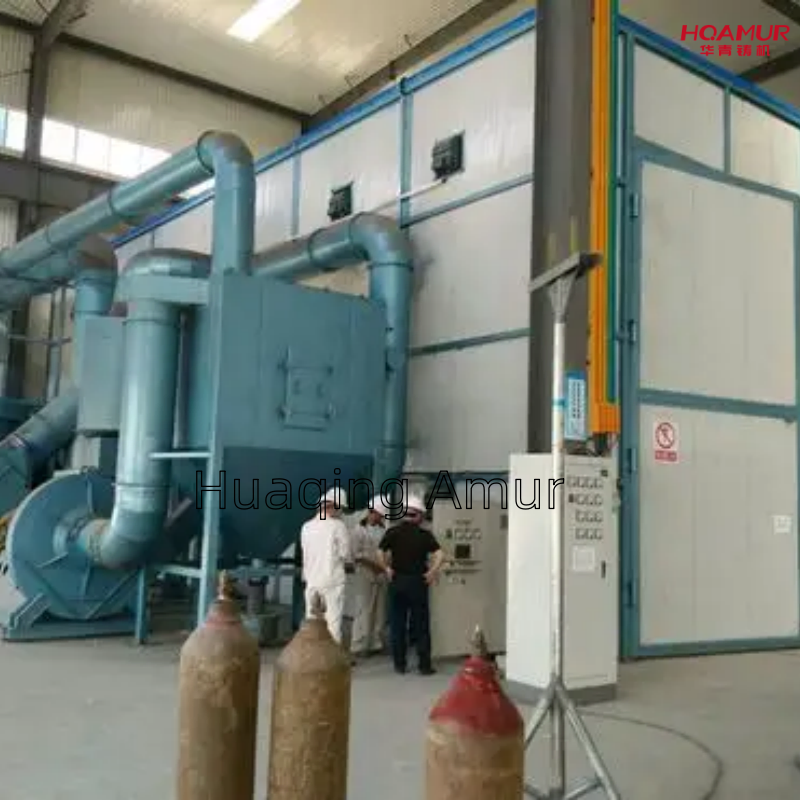

■ Dust Extraction System: High-efficiency cartridge dust collectors with extraction fans ensure clean air discharge.

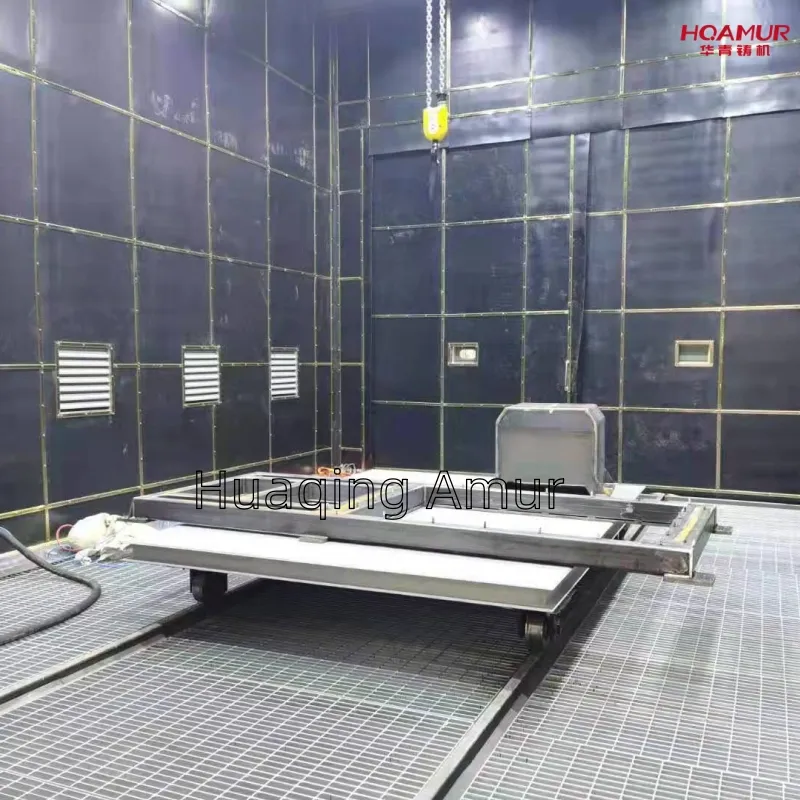

■ Conveying System: Options include rail trolleys, roller conveyors, or overhead hooks depending on the workpiece.

■ Electrical Control: Siemens PLC control system for stable, automated operation of all equipment components.

Item	Specification	Remark
Sand blasting room size	12000mm×5500mm×5500mm	Based on workpiece size
Door size	4000mm×4500mm	Easy entry and exit
Access door	800mm×1800mm	Inspection operations
Illuminance	≥400 Lux	Explosion-proof lighting
Shot blasting gun	2 pcs	Determined by room size
Blasting nozzle	Φ8-10mm	Tungsten Carbide material
Cleaning speed	20-25m²/h per gun	High efficiency performance

Product Specification & Details

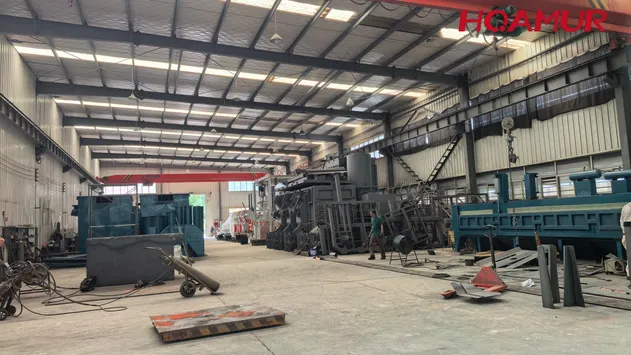

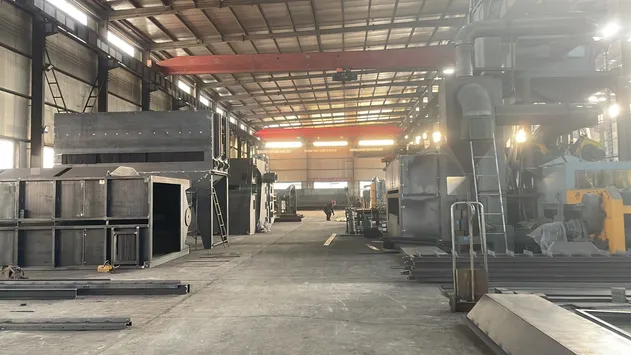

Workshop & Production Process

Exhibition & Delivery

Frequently Asked Questions

How to choose the right model?

We can help you confirm the right model based on your current requirements and the size of the workpieces you need to process.

What payment terms do you accept?

We accept T/T, L/C, Western Union, and PayPal. Typically, a 30% deposit is required via T/T, with the balance due before shipment.

How is the equipment packaged?

The machines are securely packed using plywood boxes or pallets with air bubble film to ensure safe international transport.

What after-sales service is available?

We maintain a full stock of spare parts and offer regular after-sales service. Technical support is available 24/7 online.

Why choose this shot blasting system?

With over 30 years of focus on surface cleaning technology, we provide one-stop solutions with professional design and high-precision components.

Can the blasting room size be customized?

Yes, all our shot blasting rooms are fully customizable based on the specific dimensions and weight of your workpieces to ensure optimal cleaning efficiency.
