Vacuum Recovery/Recycler System for Shot/Abrasive Recover of Ship Hull/Body Blasting Machine

1 / 5

Vacuum Recovery/Recycler System for Shot/Abrasive Recover of Ship Hull/Body Blasting Machine

Customization:	Available
After-sales Service:	Installation, Spare Parts
Warranty:	1 Year

Send Inquiry

Product Description

■

Basic Information

Model NO.

VR30/VR90/VR130

Application

Abrasive Recovery

Fuel

Electric

Cleanliness

High Cleanliness

Automation

Automatic

Certification

CE, RoHS, ISO

Feature

Critical Cleaning / Residue Free

Transport Package

Plywood Case

Production Capacity

1000 Sets/Year

■

Product Description

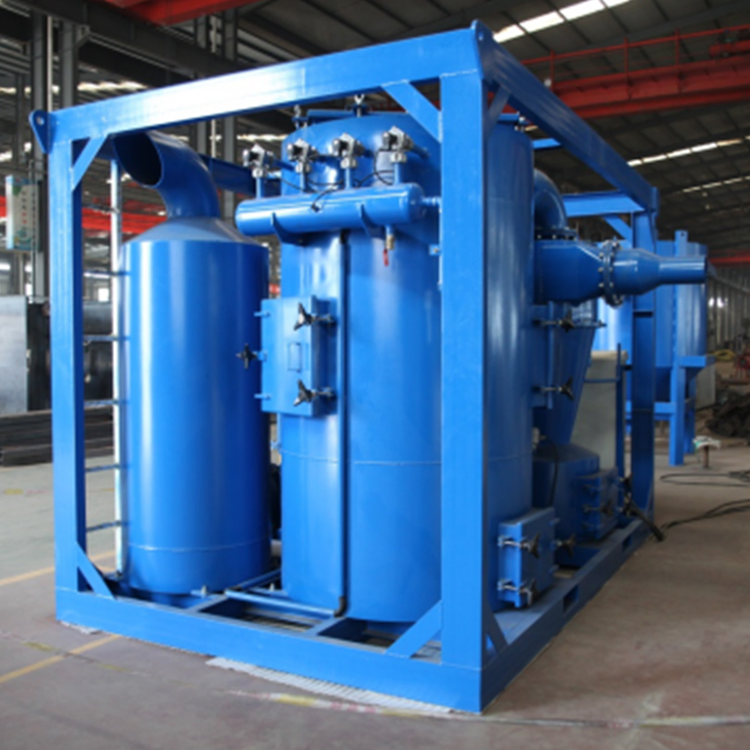

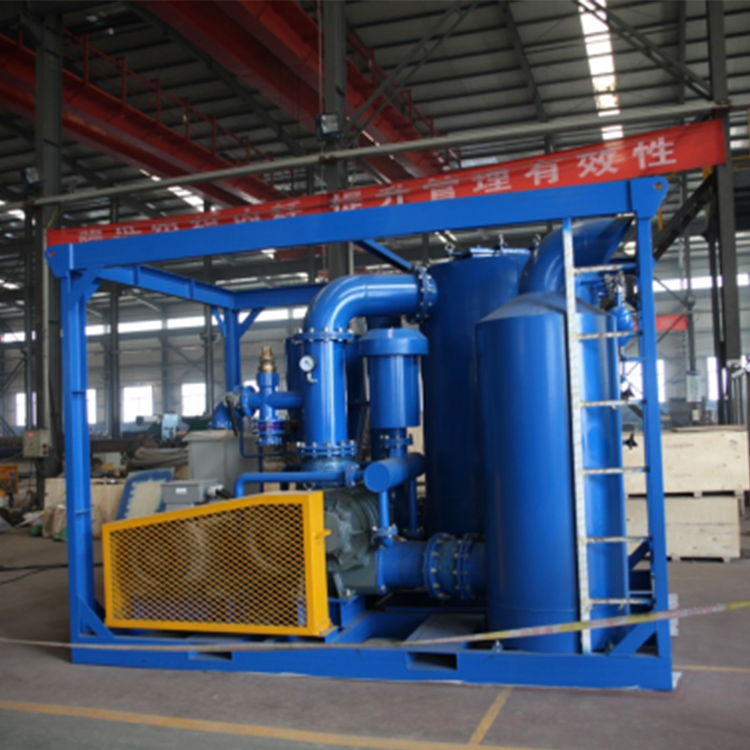

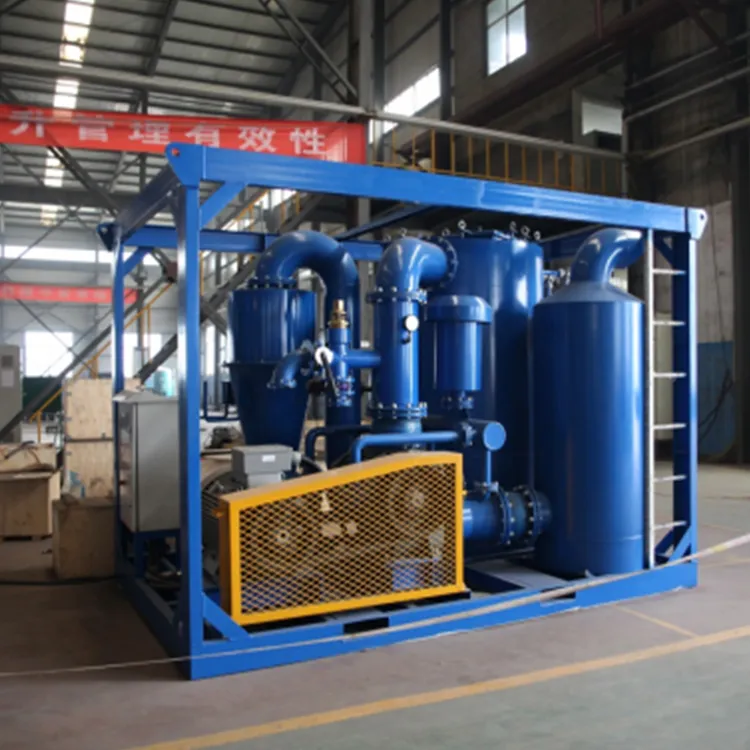

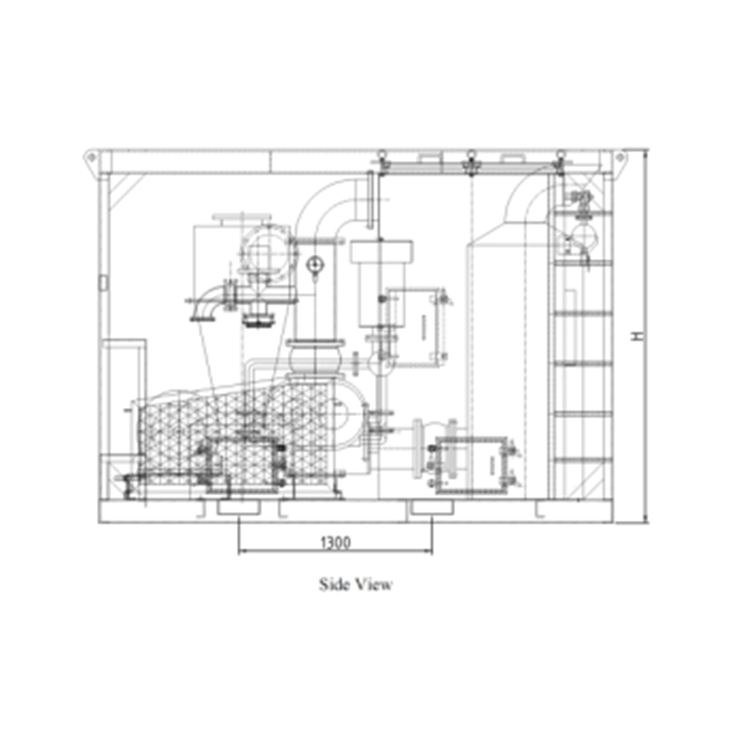

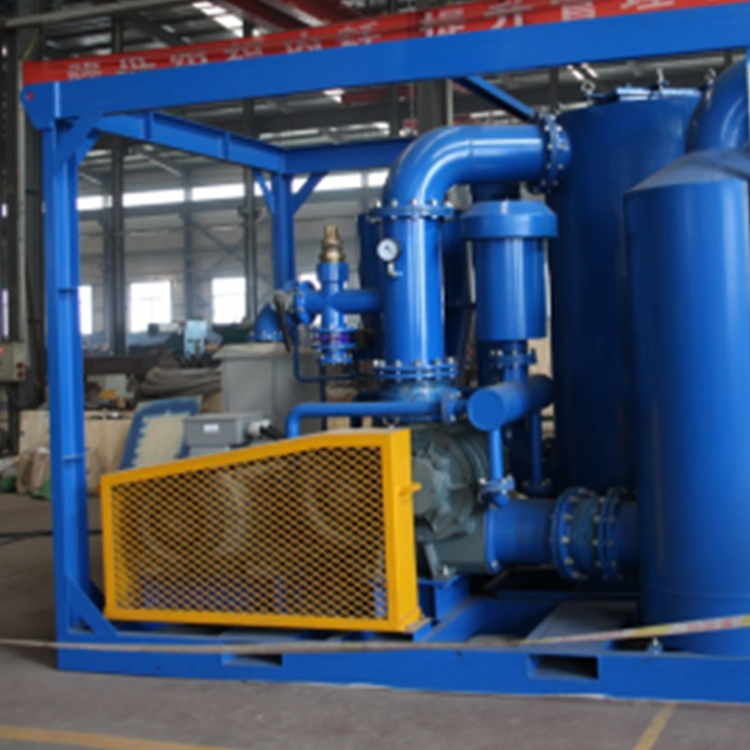

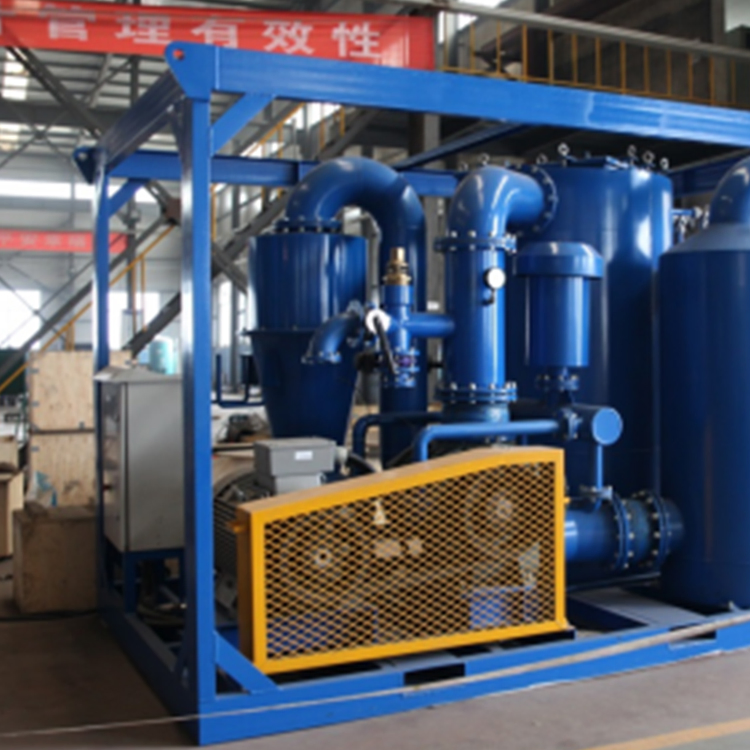

Vacuum Recovery System VR30/VR90/VR132

The vacuum recovery system is one of the most efficient, economical, and effective cleaning methods available. This device is designed with a compact structure for easy operation, cleaning, and maintenance while maintaining high efficiency.

Key Advantages

Higher productivity compared with normal cleaning methods.
Reduced failure rates due to no mechanical moving parts on the abrasive recovery line.
Treated surfaces allow timely access to the painting process.
Simplified maintenance as there is no need to move the vacuum recovery machine.

Technical Parameters

Item / Model	VR132	VR90	VR30
Air volume capacity	5800 m³/h	3600 m³/h	1900 m³/h
Vacuum pressure	-450mmHg	-450mmHg	-380mmHg
Vacuum pump speed	1120 rpm	1318 rpm	1219 rpm
Motor Power	132kw IP55	90kw IP55	30kw IP55
Electricity voltage	3 phase, 380 ~ 415V, 50HZ
Dedusting method	Cyclone + pulse filter cartridge
Filtration efficiency	99.50%
Noise level	<85 dB

■

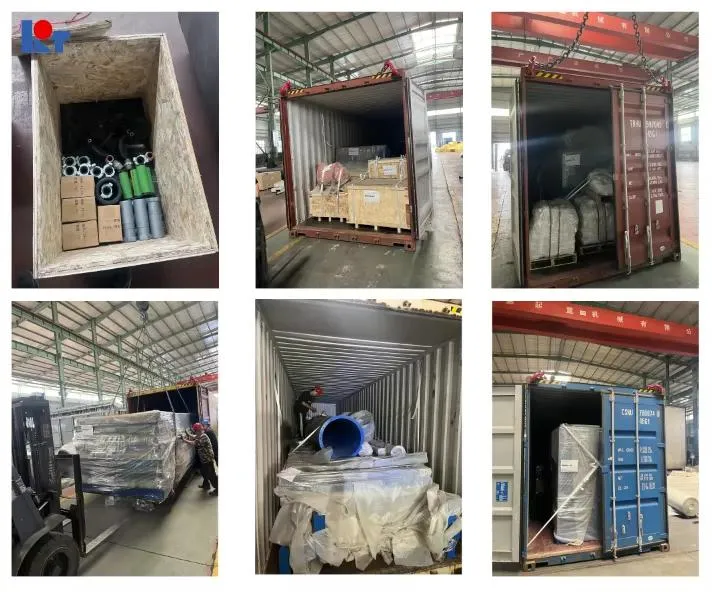

Packaging & Shipping

Small parts are secured in plywood cases, tightly packaged for overseas transport. Large components are wrapped in protective plastic film and secured on frames.

■

Professional Certifications

Our products have successfully passed AEO, CE, and ISO standards, ensuring global quality compliance.

■

Exhibition & Global Reach

We actively participate in major global exhibitions to showcase our technology and learn from industry trends. With a global service team and over 100,000 customers worldwide, we provide comprehensive surface treatment solutions.

■

Frequently Asked Questions

What is the primary application of the Vacuum Recovery System?

It is mainly used to recover metal abrasives accumulated in cabins, tanks, or dry abrasive surfaces, and to clean complex workpieces like ship hulls and inner segments.

How efficient is the filtration system?

The system utilizes a cyclone and pulse filter cartridge method, achieving a filtration efficiency of up to 99.50%.

Does the machine come with safety protections?

Yes, it includes vacuum overload protection (relief valve) and unit protection for phase errors, thermal overload, and material level alarms.

Can the voltage and color be customized?

Yes, both the machine color and the operating voltage can be customized according to the client's specific requirements.

What standards are followed during production?

All products are manufactured in strict accordance with ISO9001 and ISO14001 quality and environmental management rules.

Do you provide on-site installation guidance?

Yes, we can arrange for professional engineers to visit your facility to guide the installation, assembly, and initial testing of the machine.
