Scalable Blasting Room Systems Future Expansion Ready
Scalable Blasting Room Systems Future Expansion Ready
Scalable Blasting Room Systems Future Expansion Ready
Scalable Blasting Room Systems Future Expansion Ready
Scalable Blasting Room Systems Future Expansion Ready
1 / 5
Scalable Blasting Room Systems Future Expansion Ready
Scalable Blasting Room Systems Future Expansion Ready
Scalable Blasting Room Systems Future Expansion Ready
Scalable Blasting Room Systems Future Expansion Ready
Scalable Blasting Room Systems Future Expansion Ready

Scalable Blasting Room Systems Future Expansion Ready

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Sand Blasting Room Header
Technical Specifications
Model NO.Q26 DriveElectric
ControlPLC LayoutHorizontal
AutomationSemi-automatic KindDry Sandblaster
ConditionNew CertificationCE, CB, ETL, RoHS, UR
Operate TypeManually Continuous or Intermittent Production Efficiency20-30m^2/Hour/Gun
Recovery ModeMechanical or Pneumatic OriginShandong China
HS Code8424300000 Production Capacity200 Sets Per Year

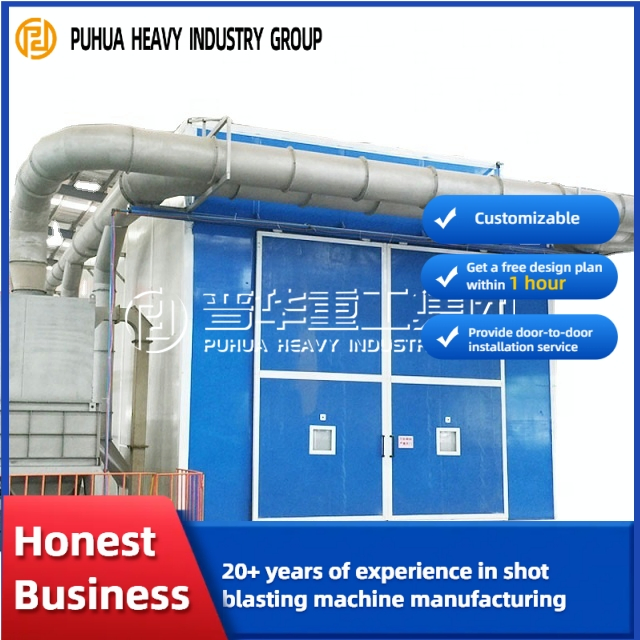

Automatic Recycling Sand Blasting Room
Ideal for processing oversized components, our sandblasting room provides a complete solution for surface preparation, including thorough cleaning, rust removal, and the creation of an optimal profile for paint adhesion. For businesses seeking a balance of performance and affordability, the manual recovery sandblasting room is a popular choice. Its straightforward design offers notable advantages: it is economical to install and operate, requires simple maintenance, and uses readily available materials. This makes it a particularly practical and cost-efficient option for small and medium-sized workshops.
Sand Blasting Room View 1

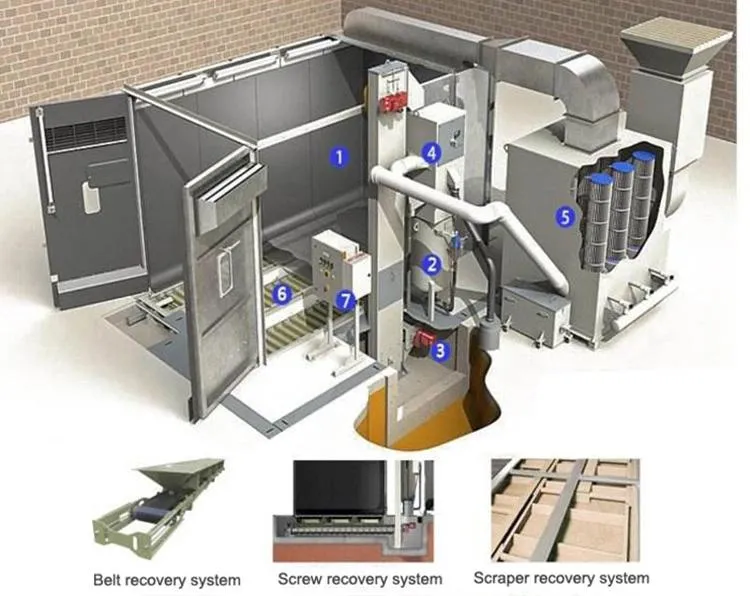

Sand Blasting Room View 2
⚙️Main System Components
Sand blasting chamberSand(shot) Storage HopperSand blasting device
Bucket elevatorScrew conveyorElevator
SeparatorAbrasive recycling systemLighting system
Dust CollectorSteel gratingTrolley system

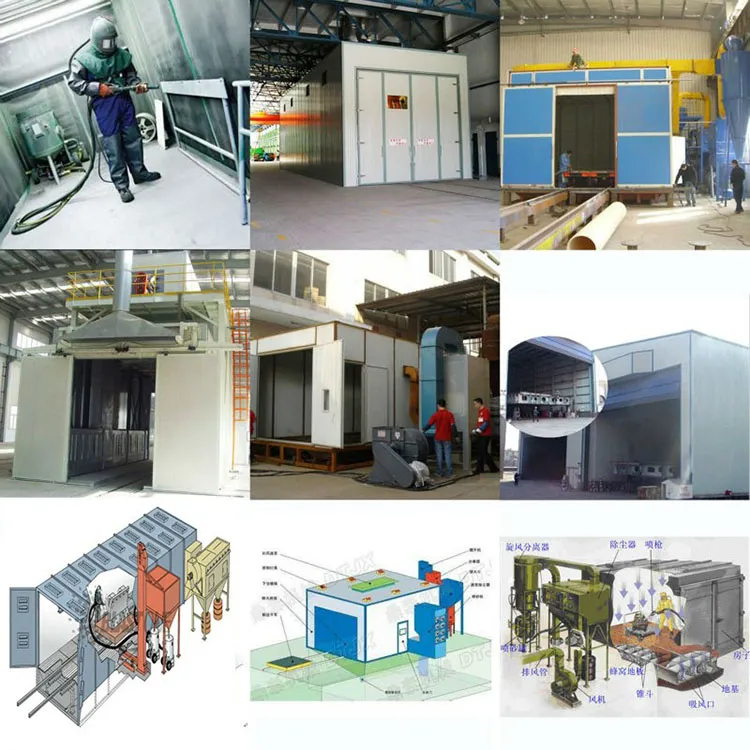

Component Details
Core Components and Functions
The Q26 series sand blasting room is engineered for high performance. The surface finish level can achieve Sa2.5.
Blasting Chamber Structure

The chamber body is constructed from sandwich composite panels and a rectangular steel frame, ensuring a strong, sealed, and spacious operation environment. It features 40 LED lamps protected by stainless steel nets, providing a brightness of 600 Lux. The interior is lined with 4mm wear-resistant white rubber to extend service life and reduce noise.

Blasting Assembly & Circulation

Equipped with a 0.6 m³ sandblasting tank, boron carbide nozzles, and 20m sprayer pipes. The abrasive circulation system includes a screw conveyor, bucket elevator, and separator for continuous purification and reuse of blasting media.

Section Divider Technical Flow
📝Custom Design Requirements

To provide the most suitable technical proposal, please confirm the following:

  • Type of workpiece to be cleaned.
  • Maximum dimensions (Length, Width, Height) and Weight.
  • Required daily production capacity (8-hour shift).
  • Photos of the workpieces for better evaluation.
Frequently Asked Questions
What is the warranty period for the blasting room?
The warranty is 12 months from the date of commissioning completion, not exceeding 18 months from the date of delivery.
Do you provide installation and training services?
Yes, we send professional technicians to assist with installation and commissioning. Customers are responsible for travel expenses and site preparation.
What kind of documentation is provided with the equipment?
We supply full English documentation, including installation drawings, pit design drawings, manuals, electric wiring diagrams, and maintenance books.
What materials are used for the wearing parts?
Our shot blasting spare parts are manufactured with high-quality materials like Cr20S High Chrome, ZGMn13, and Mn65 for maximum durability.
What are the standard trade and payment terms?
We accept FOB, CFR, CIF, DDP, and more. Payment is typically 30% deposit by T/T, with the balance paid before delivery or via L/C at sight.
What is the typical delivery timeframe?
Delivery ranges from 20 to 60 days depending on the specific equipment configuration and customization requirements.
