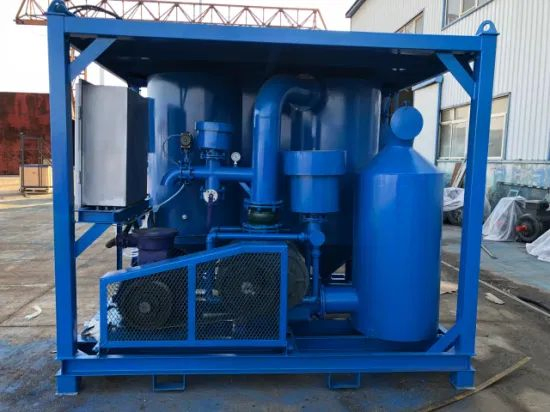

Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks
Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks
Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks
Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks
Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks
1 / 5
Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks
Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks
Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks
Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks
Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks

Portable Abrasive Vacuum Recovery System for Steel Grits Garnet Recovery Used in Shipyard Drydocks

Customization: Available
Warranty: 1 Year
Application: Surface Treatment
Send Inquiry

Product Description

📋

Basic Information

Fuel:
Electric
Cleanliness:
High Cleanliness
Automation:
Automatic
Certification:
CE, CB, ETL, RoHS, UR
Feature:
Rust / Corrosion Proof
Condition:
New
Customized:
Available
Machinery Test:
Provided
Surface Finish:
SA2.5 to SA3.0
Cleaning Type:
Shot Blasting / Wheel Blasting
Dust Collector:
Cartridge/Bag Type Filter Pulse Reverse
PLC System:
Siemens, Omron or equivalent
⚙️

Product Description

As the actual blasting is sealed off by a brush head, dust and abrasives are immediately vacuumed by a powerful suction unit. The separator and silo fully recycle the collected, used abrasives. The automatically contained dust can be simply discharged.
Our vacuum blasting is a safe blasting solution for confined or critical areas. It offers clean blasting and economic recycling of abrasives. Closed circuit design ensures no pollution or waste.

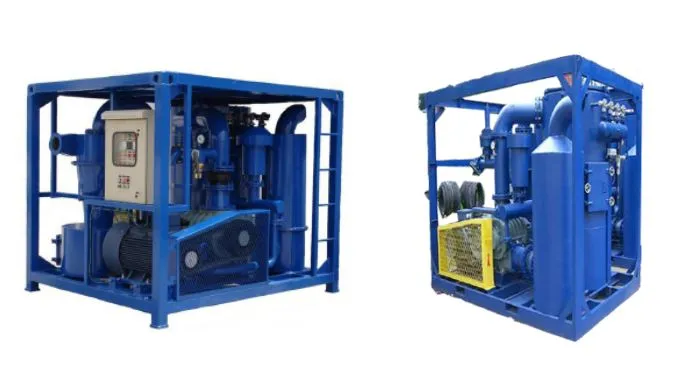

Vacuum Recovery System
📊

Technical Parameters

Technical specifications Model Type I Model Type II
Operating pressure0.3 ~ 0.7 MPa0.3 ~ 0.7 MPa
Air consumption2 - 3 m3/min3 - 4 m3/min
Power consumptionCompressed air and electricityCompressed air only
Vacuum16.7KPa
Vacuum pump160m3/h, 2.2kw
Abrasive storage hopper80 liters Approx60 liters Approx
Operating hose length5 meter max5 meter max
Blast cleaning gradeSa2.5-Sa3.0Sa2.5-Sa3.0
Process capacity2-3m2/h2-3m2/h
Blast cycleContinuousContinuous

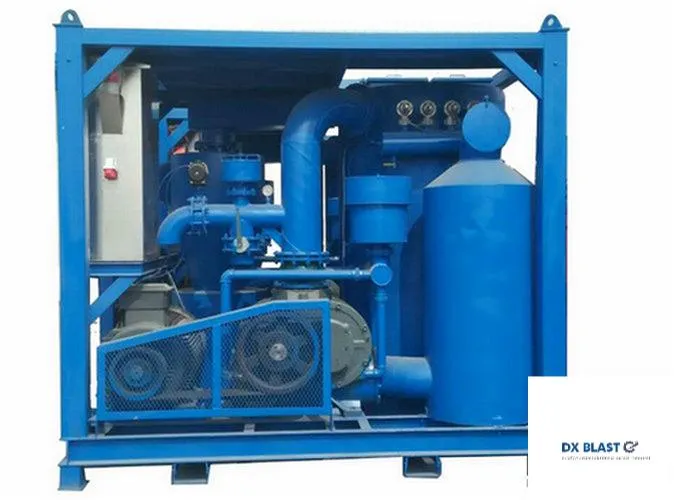

System Detail 1

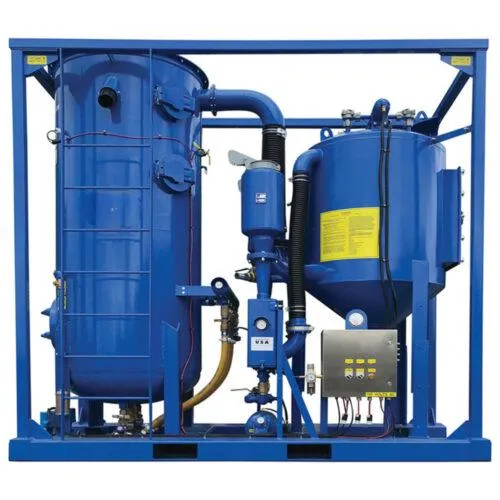

System Detail 2
⭐

Key Features

  • Blasts away rust, dirt and paint quickly.
  • Features a vacuum recovery system at the blast nozzle to eliminate mess.
  • Media is recycled for continuous use, reducing costs.
  • Dust is captured in a dedicated container for easy disposal.
  • Equipped with wheels and casters for excellent mobility.
🏗️

Product Application

Our equipment is designed for versatile surface treatment in various industries:
  • Steel structural works: Industrial vehicles, agricultural machines, pipelines, and harbor cranes.
  • Foundry and Forging: Castings, weldments, and fragile workpieces.
  • Surface Finishing: Gears, springs, and vibratory finishing.
  • Marine Industry: Ship building and repair sectors.
❓

Frequently Asked Questions

Q: How do I choose the correct blast machine type?
A: Selection depends on your workpiece dimensions and required productivity. Our engineers provide expert suggestions based on your specific needs.
Q: How do I choose the right abrasive media?
A: We offer various abrasives including steel shot, cut wire shot, and stainless steel shot. The choice depends entirely on the material and finish requirements of your workpiece.
Q: What is the standard quality warranty period?
A: We provide a 1-year warranty. Support is also available through local agents in various regions for enhanced service.
Q: Is a foundation pit essential for installation?
A: This depends on the machine size and your workshop layout. Many portable units do not require a pit.
Q: How many workers are required to operate the machine?
A: Most of our automated systems require only 1 to 2 workers for operation.
Q: Do you provide installation assistance?
A: Yes, we provide comprehensive installation assistance and on-site operation training by experienced engineers.
