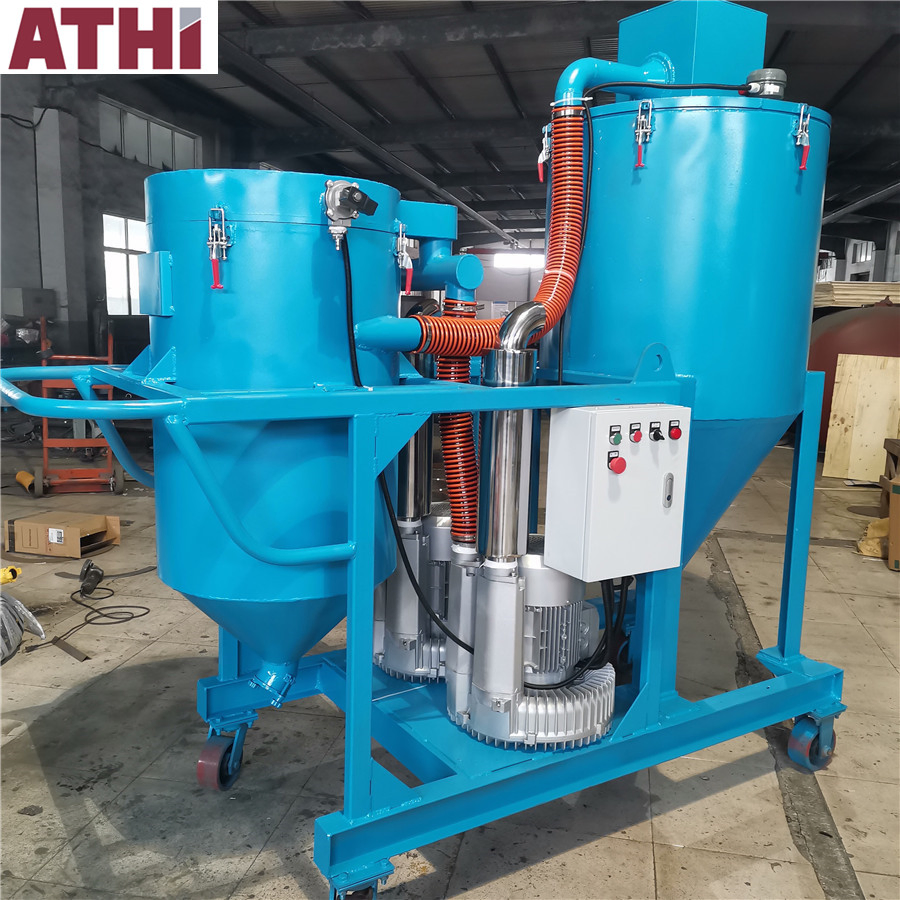

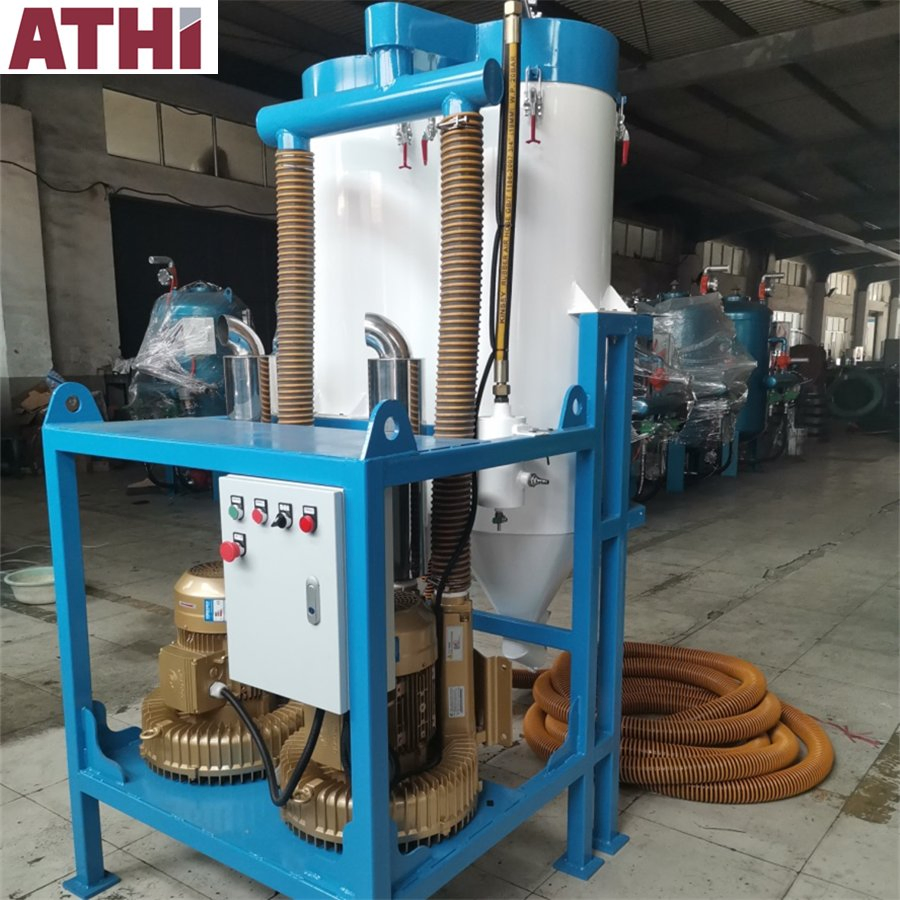

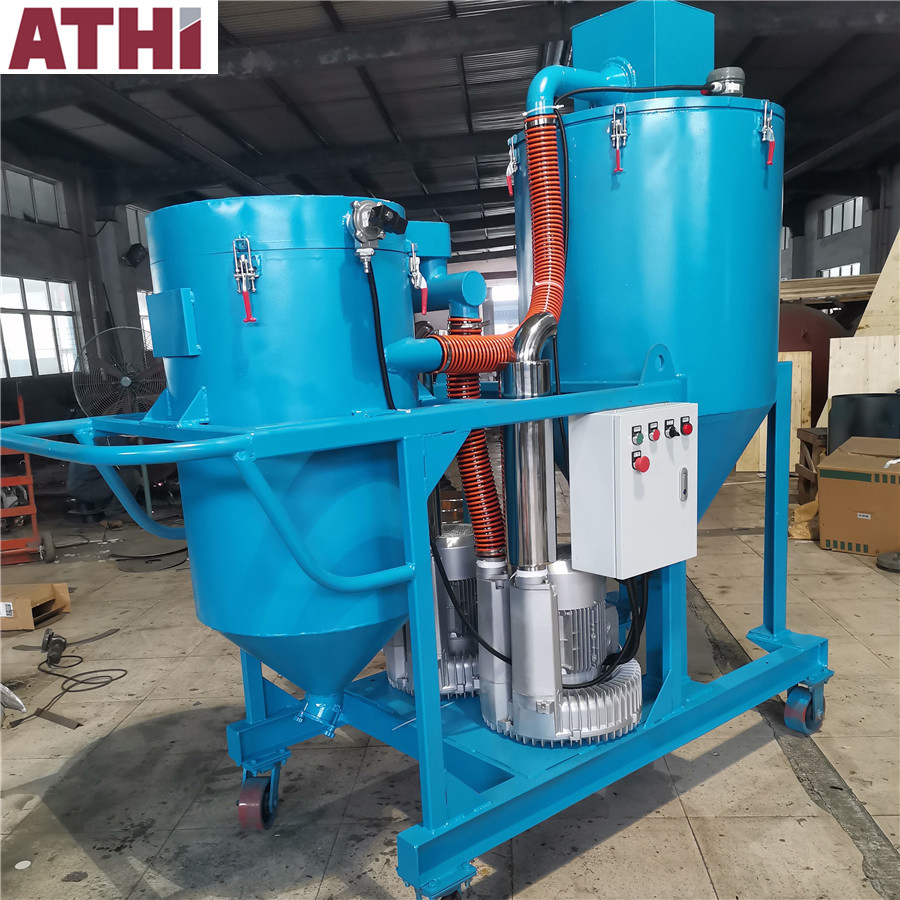

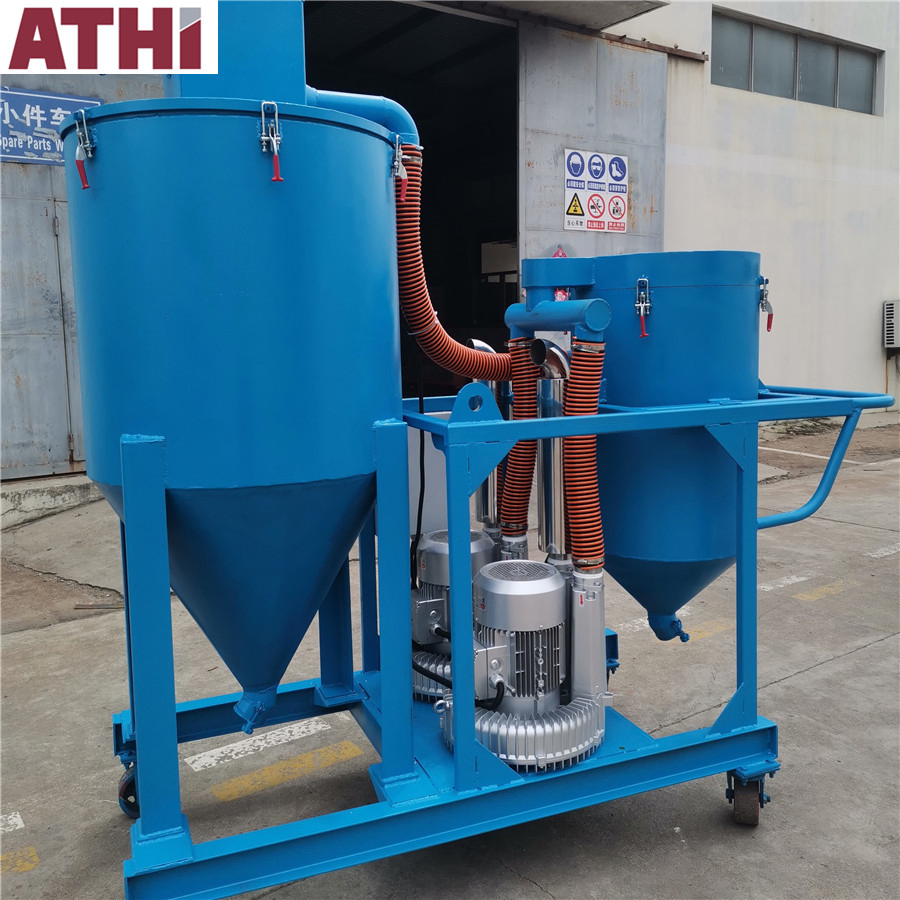

Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System
Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System
Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System
Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System
Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System
1 / 5
Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System
Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System
Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System
Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System
Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System

Mobile Type Abrasive Steel Shot Grit Collecting/Absorbing Machine Recovery System

Customization: Available
After-sales Service: Included
Warranty: Included
Send Inquiry

Product Description

Basic Info.
Model NO.
Customzied
Drive
Pneumatic
Principle
Press-in
Control
Manual
Layout
Horizontal
Automation
Semi-automatic
Kind
Dry Sandblaster
Condition
New
Certification
CE
Customized
Customized
Transport Package
Wooden Box
Specification
Based on actual situation
HS Code
84243000
Production Capacity
1000sets/Year
Product Description

Automatic recovery dust free vacuum mobile sand blasting sandblaster machine for sale

Mobile automatic recovery sand blasting machine features an integrated blast pot, media vacuum recovery system, and dust collection all in a single compact unit. It consists of a suction blast machine with remote control, blast hose, blast head assembly, reclaimer & separator, and pneumatically generated abrasive recovery system, dust collector, and cart. It is widely used for descaling, surface texturing, and paint preparation, mainly used to clean rust at oil fields, container renew, etc. The pneumatically generated abrasive recovery system allows it to be used without dust and disposal problems.

Blast and recovery systems can be used to simultaneously blast and recover (closed circuit blasting) or can be used for open-air blast and then subsequent abrasive clean-up.

Simultaneous blast and recovery eliminates dust clouds, poor visibility, and costly clean-up. The capability of independent blast and recovery makes the system a productive and versatile tool suitable for many different applications. Vacuum Blasting is ideal for big objects such as ship hulls, large tanks, and concrete bridge surfaces.

Description & Benefits
  • Blasts away rust, dirt, and paint quickly
  • Features a vacuum recovery system at the blast nozzle to eliminate mess
  • Media is recycled for continuous use
  • Dust is captured in a container for ease of disposal
  • Wheels and casters offer ease in mobility
Key Features
  • Portable system used for lead and asbestos abatement, indoor blasting, bridge and road maintenance, building restoration, and other steel and concrete cleaning applications
  • Flexible system can blast and recover simultaneously or independently
  • Available in 2.0, 3.5, and 6.5 cu. ft. systems with pneumatic or electric remote controls
  • Cyclone has large, quick-opening access door and two-part screen with removable center for easy access
  • Optional, adjustable, air wash cyclone improves abrasive cleaning
  • Automatic pulse jet prevents clogging of dust filters
  • Quick opening hatches make cartridges and filters easy to remove and replace
  • Urethane eductor pump is available with 225, 350, 440, or 550 cfm nozzle
  • Moisture separator and media vibrator ensure even flow of abrasive
Technical Parameter

We can customize the machine according to your requirements.

Shot Absorb/Collect Machine Specification
Item Parameter
ModelHMD-MC
Air volume (m³/h)1200
Air pressure (pa)40000-44000
Motor power (KW)7.5*2
Outline size (mm)1200*1000*2200mm
Net Weight (kg)300kgs
Gross Weight (kg)350kgs
Vacuum Mobile Sand Blasting Machine Specification
Technical Specifications AT250-LXI AT250-LXII
Operating pressure0.3 ~ 0.7 MPa0.3 ~ 0.7 MPa
Air consumption2 - 3 m3/min3 - 4 m3/min
Power consumptionCompressed air and electricityCompressed air only
Vacuum16.7KPa---
Vacuum pump160m3/h, 2.2kw---
Abrasive storage hopper80 liters Approx60 liters Approx
Operating hose length5 meter max5 meter max
Blast cleaningSa2.5-Sa3.0Sa2.5-Sa3.0
Process capacity2-3m2/h2-3m2/h
Blast cycleContinuousContinuous
Recommend mediaSteel shot, Sand
Product Display

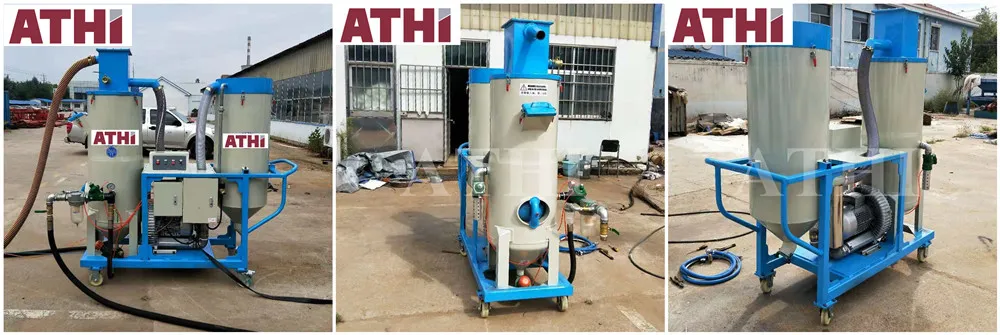

Recovery System 1

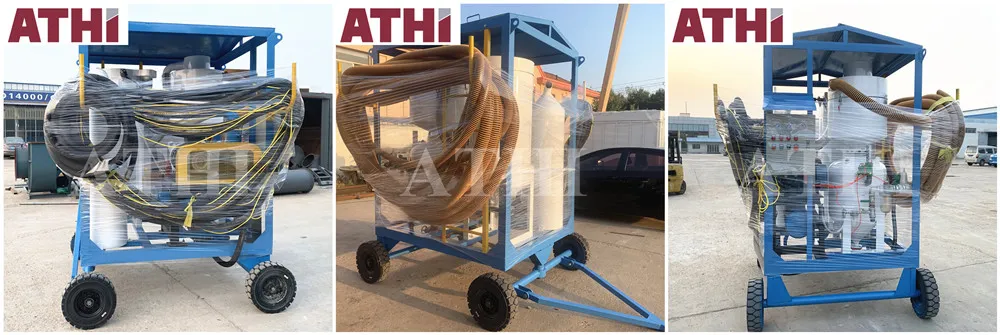

Recovery System 2

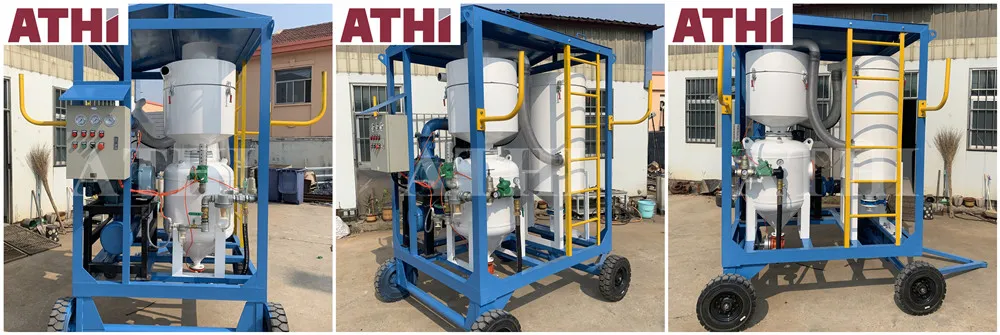

Recovery System 3

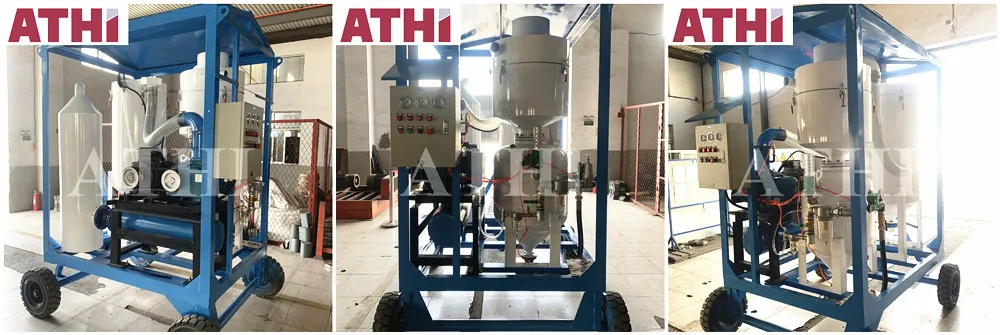

Recovery System 4

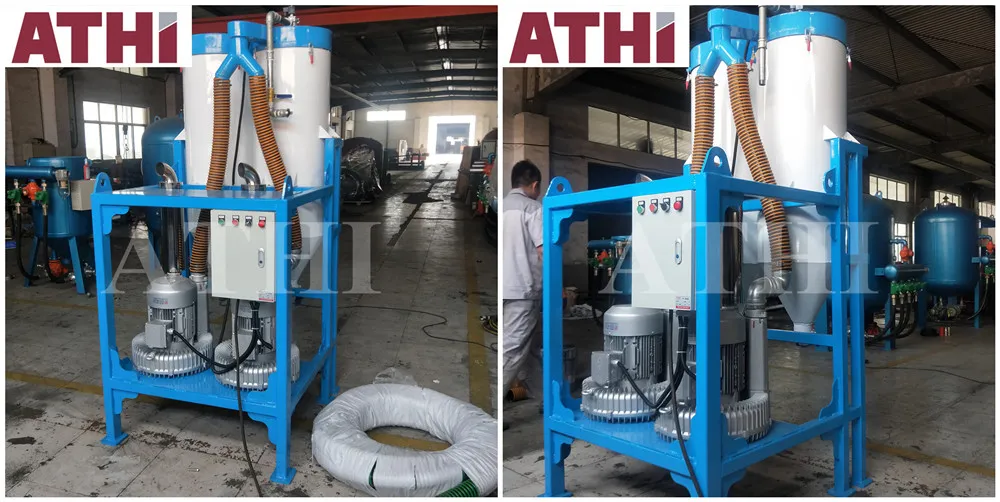

Recovery System 5

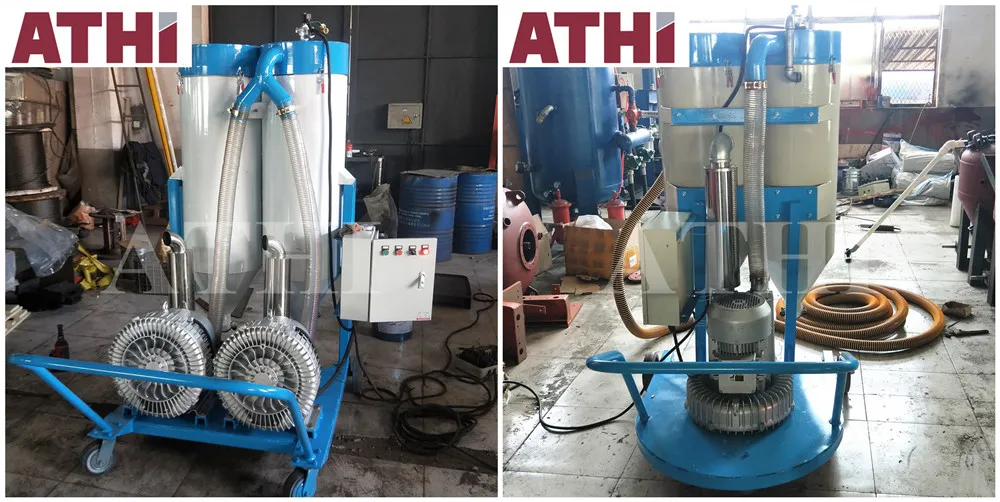

Recovery System 6

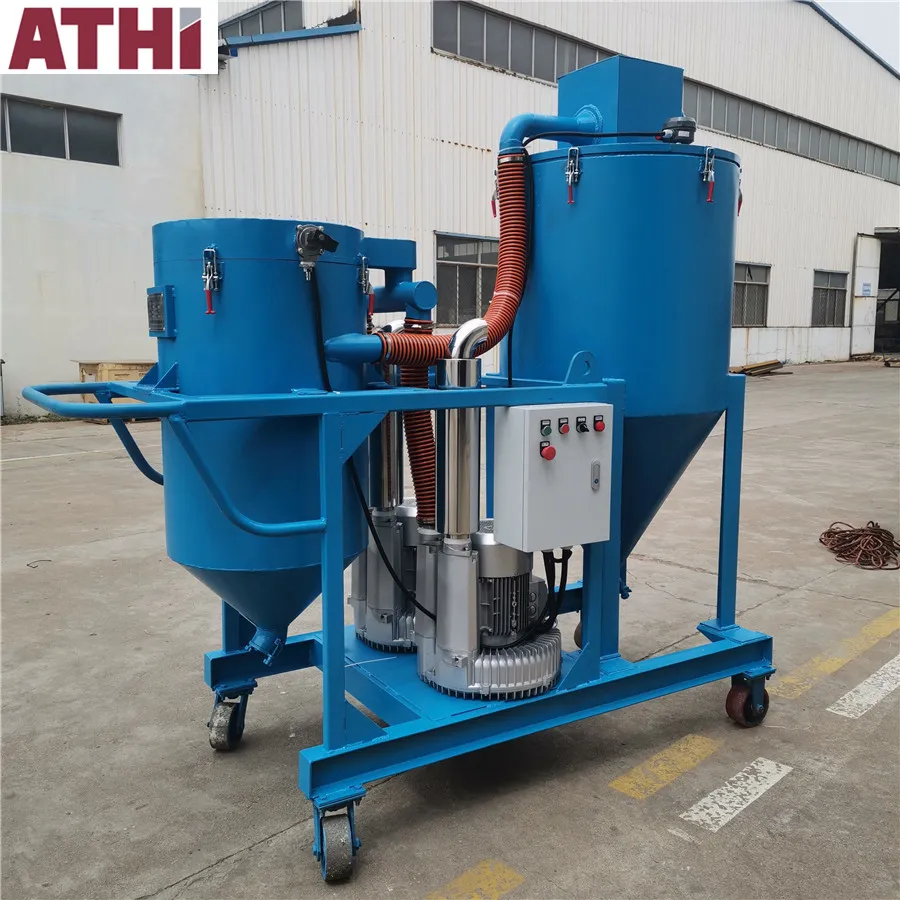

Recovery System 7
Recovery System 8
Detail 1
Detail 2
Detail 3
Detail 4
Frequently Asked Questions
Q1: How does the vacuum recovery system benefit the blasting process?
The system allows for simultaneous blasting and recovery, which eliminates dust clouds and ensures high visibility. It also recycles the abrasive media for continuous use, reducing waste and cleanup costs.
Q2: Can this machine be used for indoor applications?
Yes, because it is a "dust-free" system with an integrated vacuum recovery and dust collection unit, it is ideal for indoor blasting, building restoration, and environments where dust containment is critical.
Q3: What types of abrasive media are recommended for this sandblaster?
The machine is designed to work efficiently with steel shot and various types of sand, depending on the surface requirements and the specific model used.
Q4: Is the mobile sandblaster easy to move between job sites?
Absolutely. The unit is designed with wheels and casters, making it highly portable for applications such as bridge maintenance, road work, and large-scale tank cleaning.
Q5: What are the requirements for power and air pressure?
The operating pressure typically ranges between 0.3 to 0.7 MPa. Depending on the model, it may require either compressed air only (pneumatic) or a combination of compressed air and electricity.
Q6: How does the automatic pulse jet system work?
The automatic pulse jet system periodically cleans the dust filters by releasing a burst of air, which prevents clogging and ensures consistent suction and performance throughout the operation.
