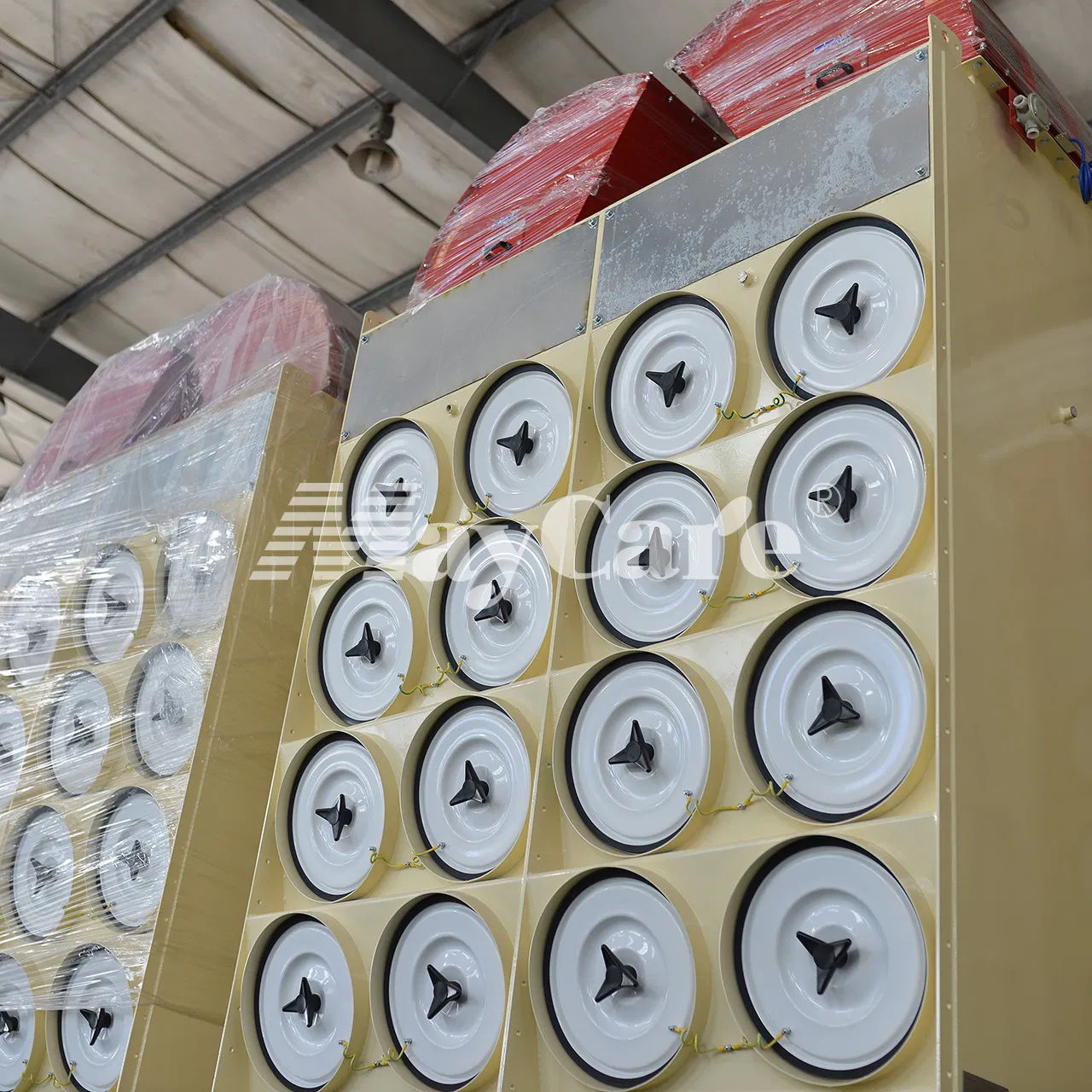

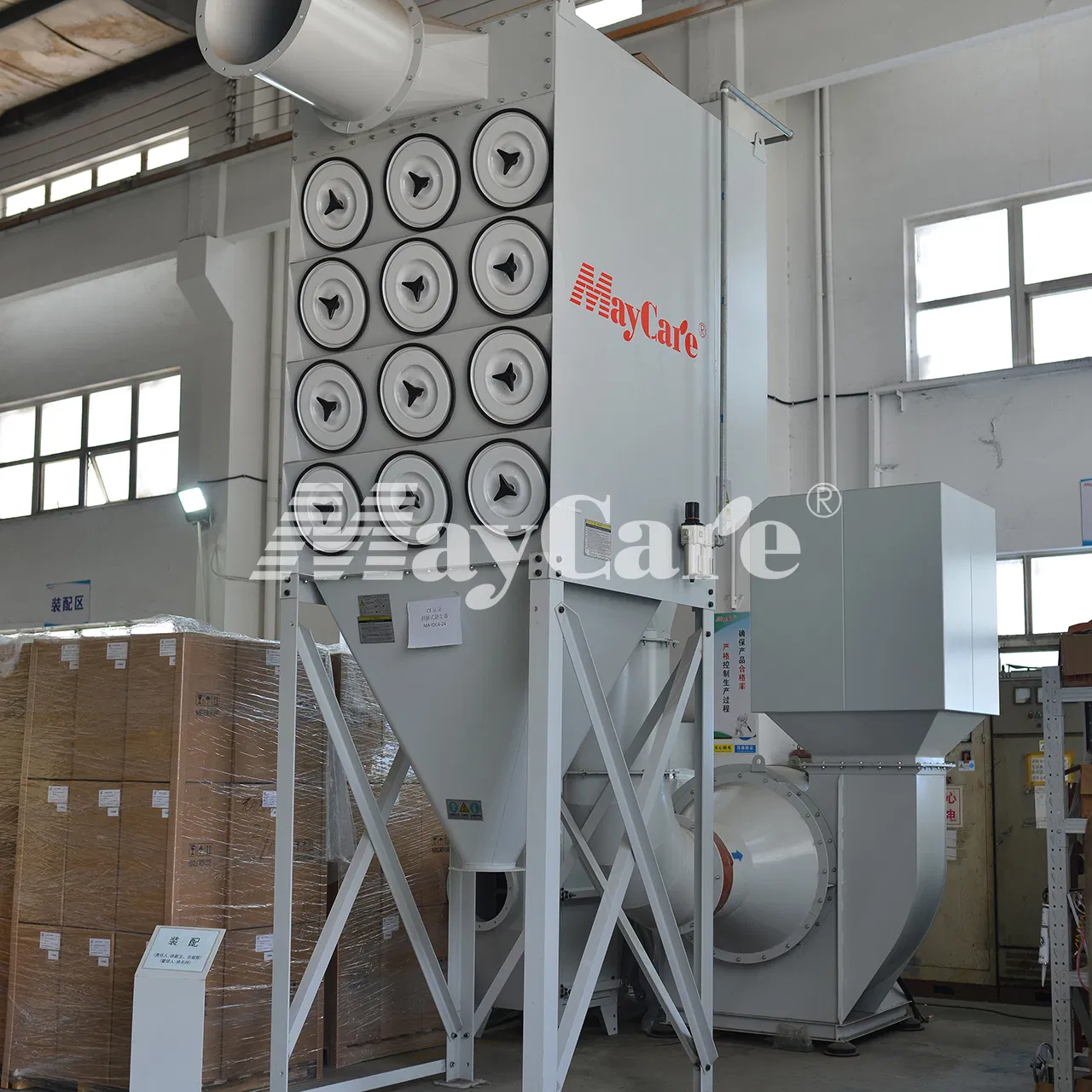

Maycare Advanced Dust Filtration System for Shot Blasting Operations

Customization: Available
Certification: CE, ISO
Installation
Method:
Horizontal

Product Description

i

Basic Information

Model NO.
IDC4-32
Operation Type
Automatic
Medium Material
Metal Fiber
Collecting Method
Dry
Type
Filter Cartridge Dust Collector
Airflow
2,400~80,000CMH
Cleaning Way
Pulse Jet
Filter Efficiency
F7~H13
Design
Modular Design
Certificate
CE
Noise Level
85dB
Voltage
380V, 50Hz, 3pH
!

Product Description

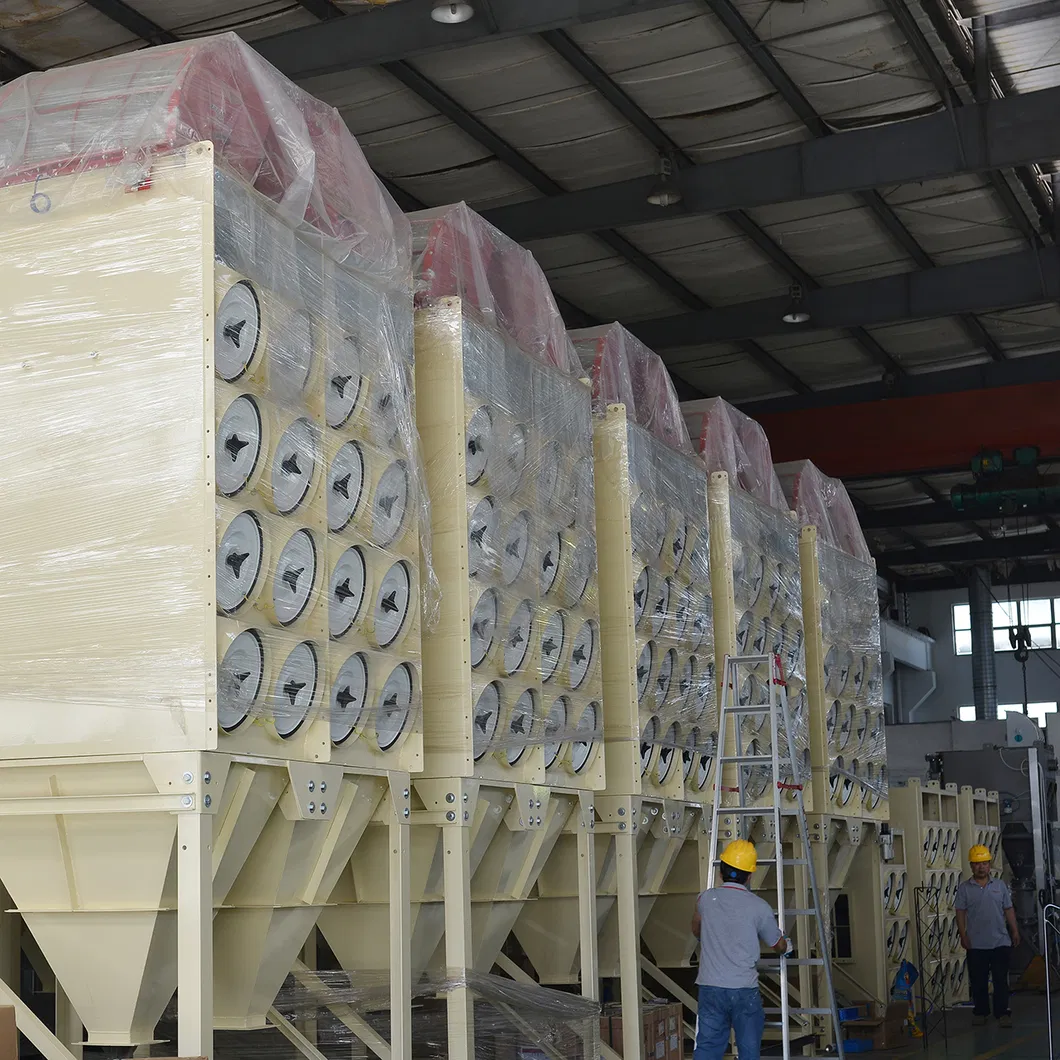

Industrial Cartridge Filter Dust Collector

Advanced dust collection solutions utilize expertise in filtration technology, delivering high-performance program design and state-of-the-art equipment configuration.

The innovative IDC series employs gravity and downward airflow principles for superior self-cleaning efficiency. By channeling dust-laden air through an "inertial settling" process, it directs dust flow downward with precision, preventing re-entrainment into the filter cartridges.

Clean air emerges through the cartridge center into the clean air chamber before exiting. The system features a robust solid control timer to manage high-pressure compressed air cleaning for peak performance.

Key Features

Filtration Technology: High-pressure pulse automated cleaning maximizes the longevity and efficacy of filter components.

Modular Design: Compact structure reduces floor space requirements and optimizes industrial environments.

Easy Maintenance: Simple installation and rapid filter element replacement minimize operational downtime.

Advanced Software: Utilizes labyrinth spark capture devices verified by FLUENT fluid analysis to mitigate friction damage.

Customized Fan: Custom-engineered dust removal fans guarantee safe and efficient equipment operation.

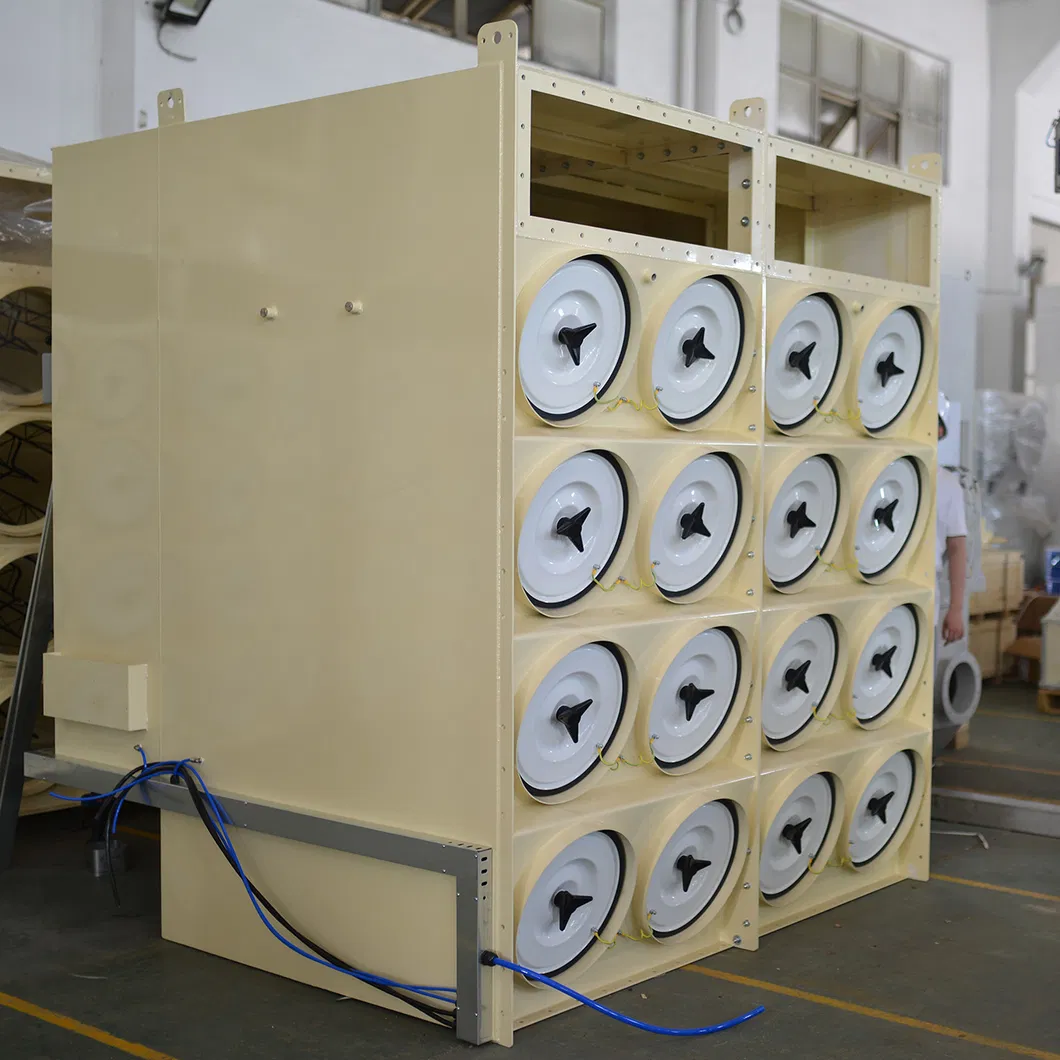

Dust Collector Features

Technical Parameters

Model Size (W x L x H mm) No. of Filters Filter Area (m²) Airflow (CMH)
IDC2-41023x1618x22954802400~3200
IDC2-81023x2140x282081604800~6400
IDC2-121532x2140x2820122407200~9600
IDC3-61023x1618x276861203600~4800
IDC3-181532x2140x32941836010800~14400
IDC4-161023x2140x3767163209600~12800
IDC4-322040x2410x37673264019200~25600
IDC4-483060x2140x37674896028800~38400
IDC4-644080x2140x376764128038400~51200
IDC4-1288160x2140x3767128256076800~102400

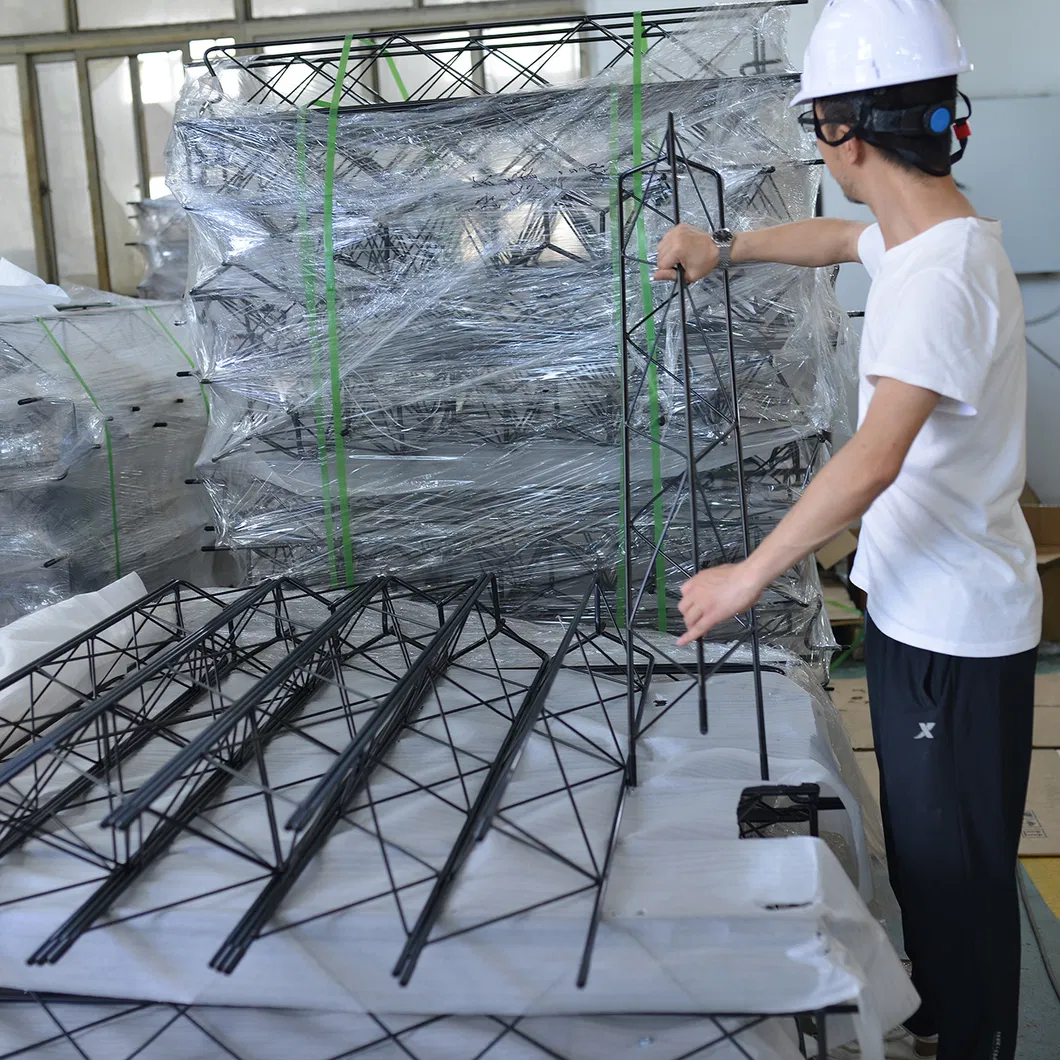

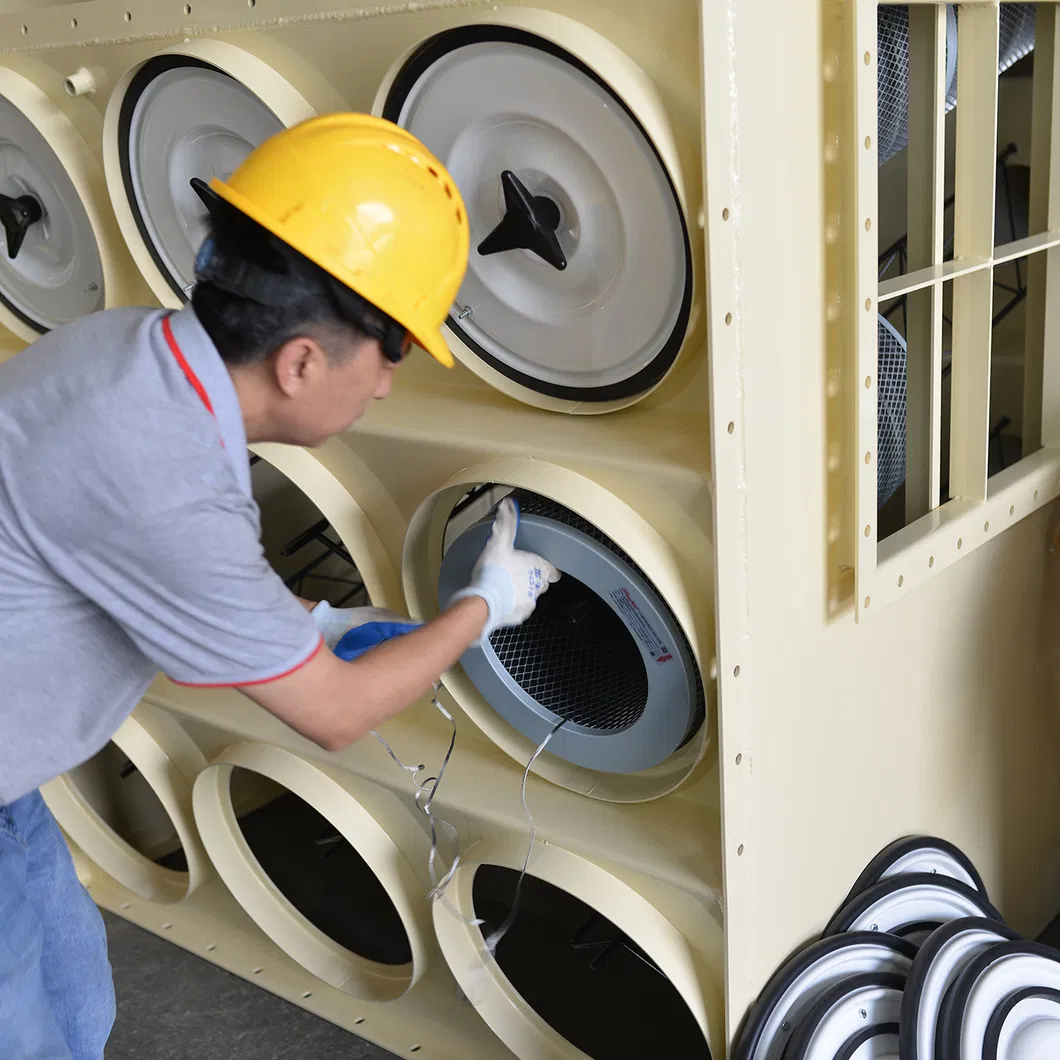

Equipment Structure

Industrial Applications

Our state-of-the-art dust control solutions are masterfully crafted for a wide range of industries:

• Electronics & Lithium Batteries
• Shipbuilding & Smelting
• Chemical Manufacturing & Pharmaceuticals
• Grain & Food Processing
• Textiles & Fiberglass Processing

These products are designed to master dust management, providing a secure work environment and enhancing productivity for your workforce.

Successful Cases

Packaging & Delivery

Package Size
300x250x500 cm
Gross Weight
1800.00 kg
Package Type
Export Pallet
Packaging Process
?

Frequently Asked Questions

Q1: What is the primary cleaning method for this dust collector? The system utilizes an automatic Pulse Jet cleaning method with a high-pressure automated timer to ensure continuous performance.
Q2: What level of filtration efficiency does the equipment achieve? The filtration efficiency ranges from F7 to H13, making it suitable for capturing a wide variety of industrial dust particles.
Q3: How does the modular design benefit my industrial space? The modular and compact structure significantly reduces the required floor space while allowing for flexible configuration based on your needs.
Q4: What data is required to receive a formal quotation? Please provide the dust type/size, required airflow, operating temperature, emission requirements, and the intended installation area.
Q5: Is the filter element replacement complicated? No, the equipment is engineered for easy maintenance, allowing for rapid filter element replacement and minimal operational downtime.
Q6: Does the equipment meet international safety standards? Yes, the dust collector equipment is CE certified, ensuring it meets rigorous safety and quality standards for industrial operation.
