Dustless Blasting Cabinet for Sale

Customization: Available
Warranty: 12 Months
Drive: Electric

Product Description

📊

Basic Specifications

Model NO.
CL-1010W
Principle
Inhaled
Control
Electric
Layout
Horizontal
Automation
Manual
Kind
Wet Sandblaster
Condition
New
Certification
CE
Customized
Customized
Item
Water Sandblasting Equipment
Outer Size
1100*1500*2000 mm
Working Size
1000*1000*800 mm
Loading Capacity
50-80 Kg
Motor
2.2 Kw
Voltage
380V/220V 3 Phase
Air Requirement
0.5-1.1m^3/Min
Blast Gun
1 PC
Production Capacity
50000PCS/Year
💡

Product Description

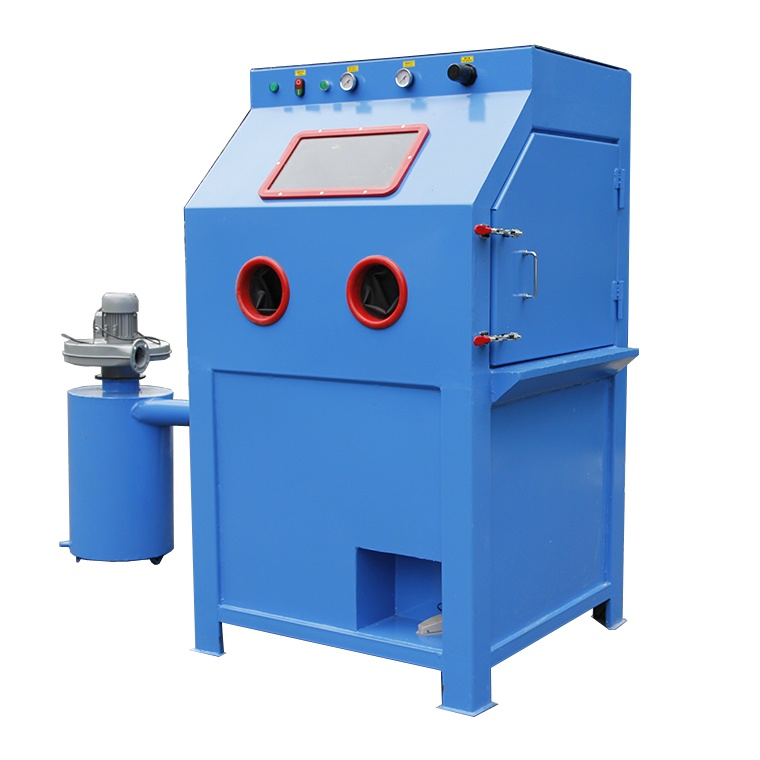

Dustless Blasting Cabinet for Sale

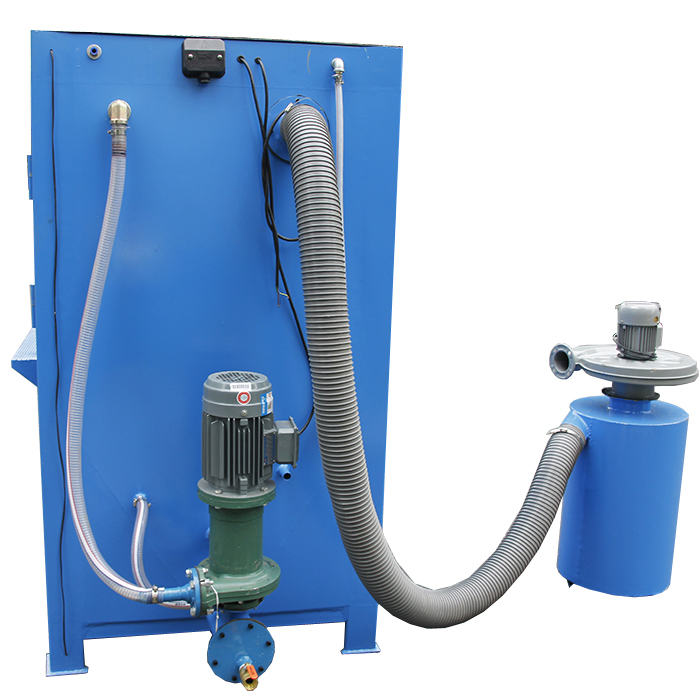

CL-1010W Dustless Blasting Cabinet is built with a high-performance slurry pump agitating water and abrasive into slurry mixture, then blast the mixture onto targets, using hydroblasting to attain the purpose of removing rust, oxide layer, imperfections and other contaminants.

In wet blasting, water-abrasive mixture is used resulting in smoother finish and less dust inside cabinet. Water washes away contaminants like grease and oil. In dry blasting these contaminants could cause coagulation of the abrasive and lead to machine failure.

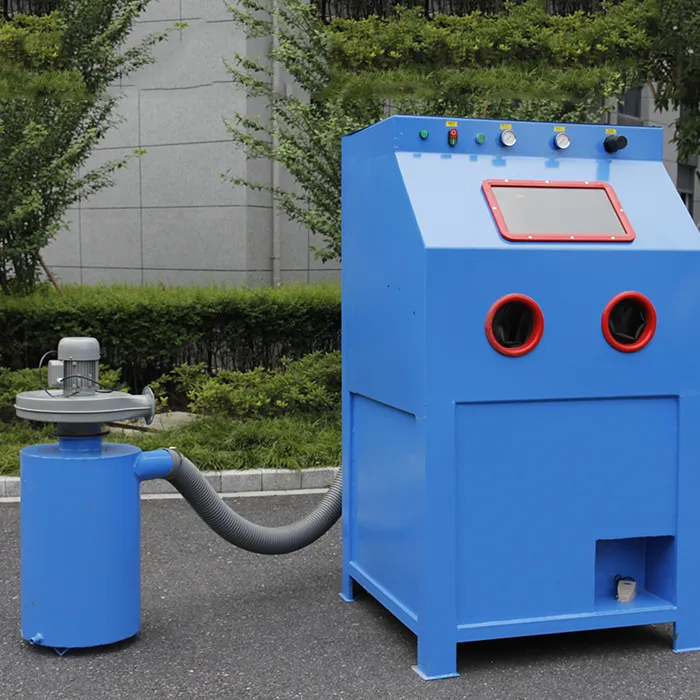

Dustless Blasting Cabinet

Key Advantages

The wet sandblasting is a dustfree process, it works by flow of water not by impact. The water acts as a lubricant between media and workparts, which could avoid media damage on some soft workparts, and to produce a smoother and finer finish. Wet sandblasting supports to degrease and blast clean simultaneously, increases working efficiency greatly.

⚙️

Technical Specifications

Parameter Details
ModelCL-1010W
Outside Size (L*W*H mm)1100 * 1500 * 2000
Working Size (L*W*H mm)1000 * 1000 * 800
Loading Capacity50-80kg
Motor2.2kw
Air Requirement Flow0.5-1.1m³/min
Light2*18w energy saving lamps
Blast Gun1 pc of wet blast gun with 1 boron cabide nozzle (8mm)
Air Consumption for 1 Gun0.4-0.8Mbar
Volume of Abrasive & Water25L
Abrasive : Water Ratio1:3

Main Benefits

  • Cabinet body made of 100% corrosion free stainless steel construction ensures a long-lasting use.
  • Compact and simple structure makes it easy to operate and maintain.

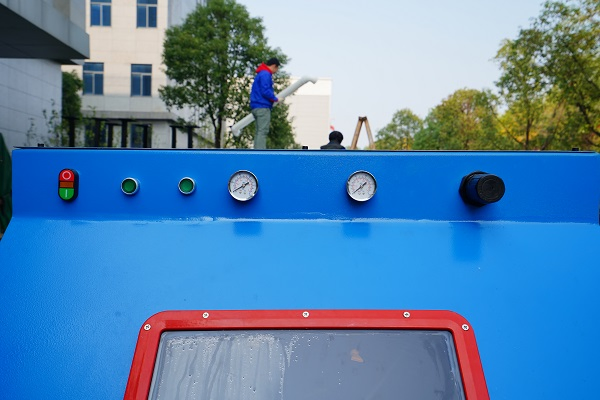

  • The full-width window for the operator's view, with a low-voltage screen wiper and washing facility.

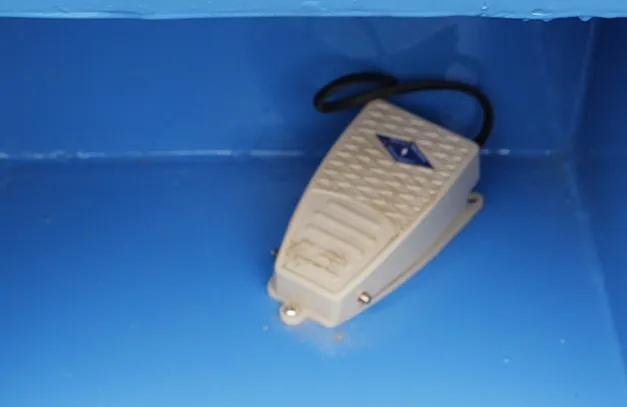

  • Built with footswitch to control the working process features much safer.

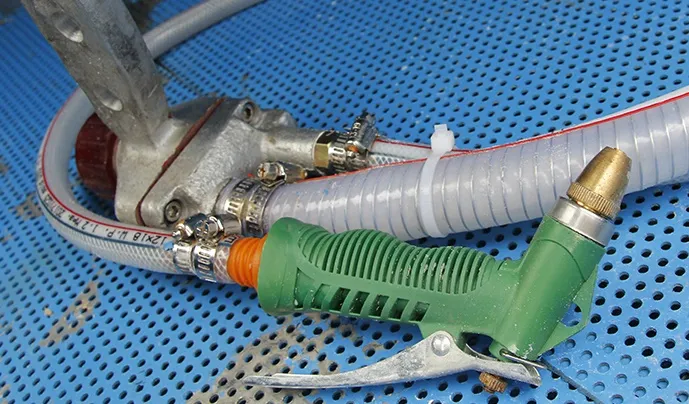

  • Special and high-performance wet blasting gun and boron carbide nozzles.
Feature 1
Feature 2
Feature 3

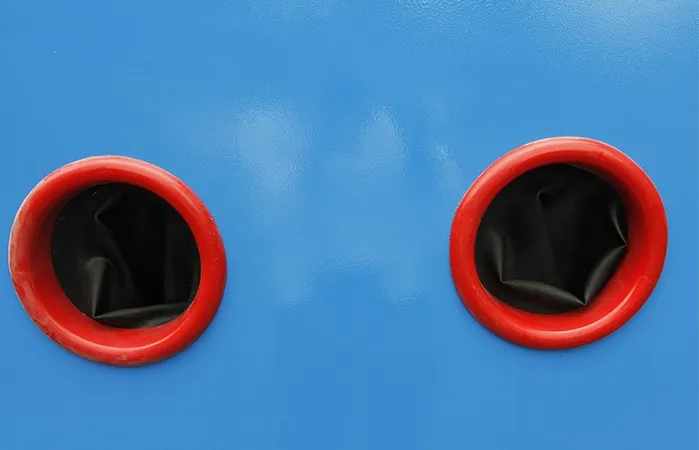

Feature 4
🛠️

Applications

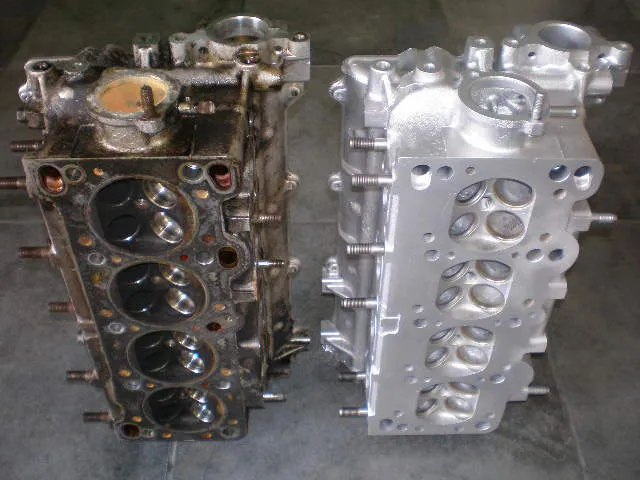

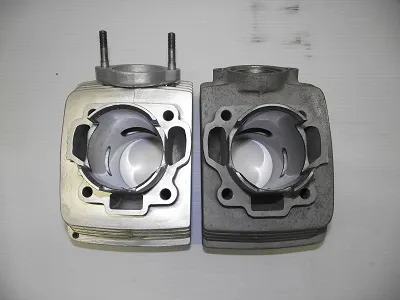

Wet sandblasting equipment is applied for products needing surface cleaning or renovating, such as forgings, castings, welded parts, electrical parts, stainless steel products, aluminum products, plastic products, crystal glass, or metal products.

Application 1
Application 2
📋

Other Available Models

Model Outer Dimension (L*W*H mm) Working Dimension (L*W*H mm)
CL-7070W800*1100*1900700*700*800
CL-9080W1000*1200*2000900*800*800
CL-1010W1100*1500*20001000*1000*800
CL-1212W1300*1700*20001200*1200*800
CL-1610W1700*1500*20001600*1000*800

Frequently Asked Questions

1. What is the main difference between wet and dry blasting?
Wet blasting uses a water-abrasive slurry which creates a dust-free environment and a smoother finish, while dry blasting uses pressurized air and can create significant dust.
2. Is the CL-1010W cabinet resistant to corrosion?
Yes, the cabinet body is constructed from 100% stainless steel, ensuring it remains corrosion-free even with constant water exposure.
3. Can I customize the voltage for my local power grid?
Absolutely. We offer customized voltage options including 380V or 220V 3-phase configurations to meet your specific requirements.
4. What kind of maintenance does the wet blasting cabinet require?
The simple structure makes maintenance easy. Regular checks of the slurry pump, cleaning the viewing window wiper, and replacing the boron carbide nozzle when worn are the primary tasks.
5. What is the recommended abrasive to water ratio?
For optimal performance in the CL-1010W model, we recommend a ratio of 1 part abrasive to 3 parts water.
6. How does the footswitch improve the operation?
The footswitch allows the operator to control the blasting process hands-free, which increases safety and allows for better manipulation of the workparts inside the cabinet.
