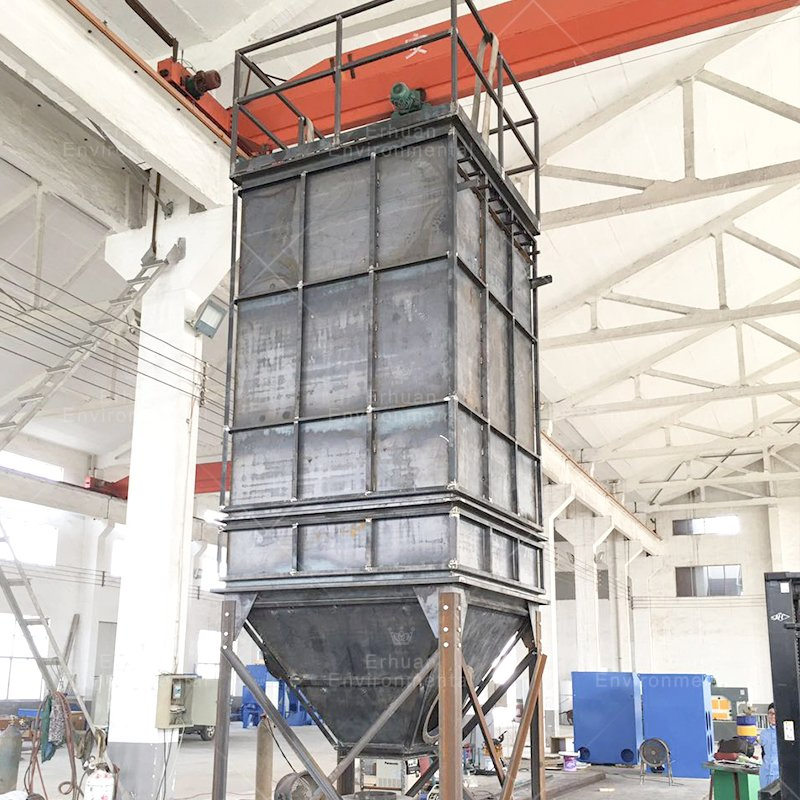

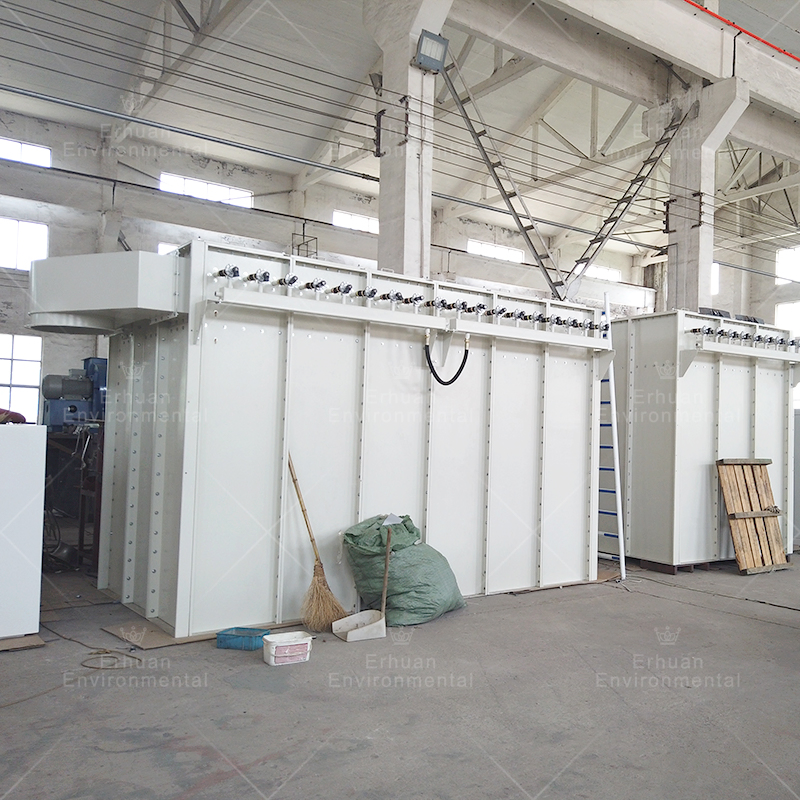

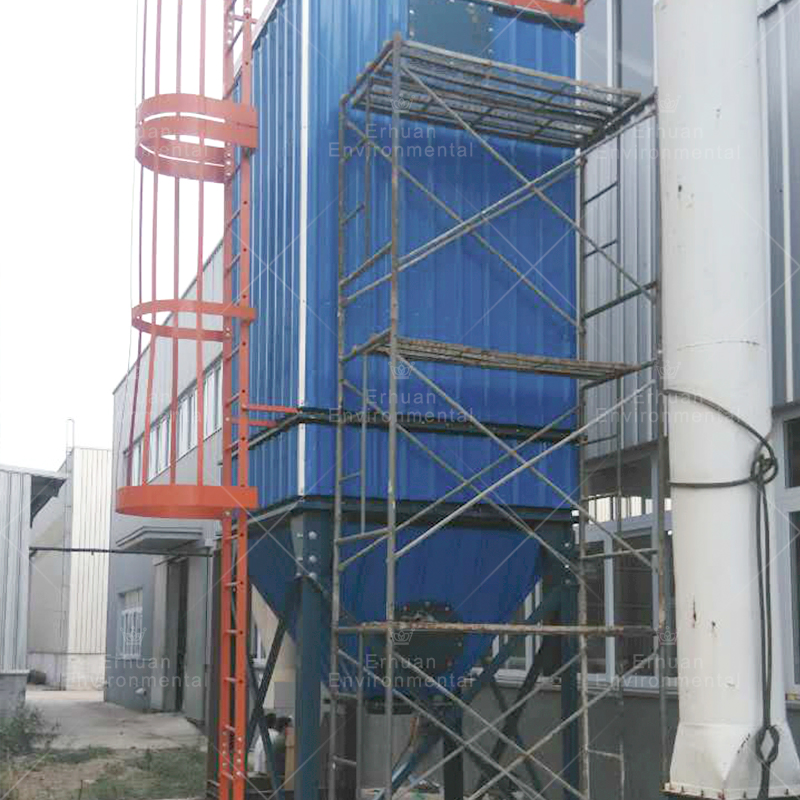

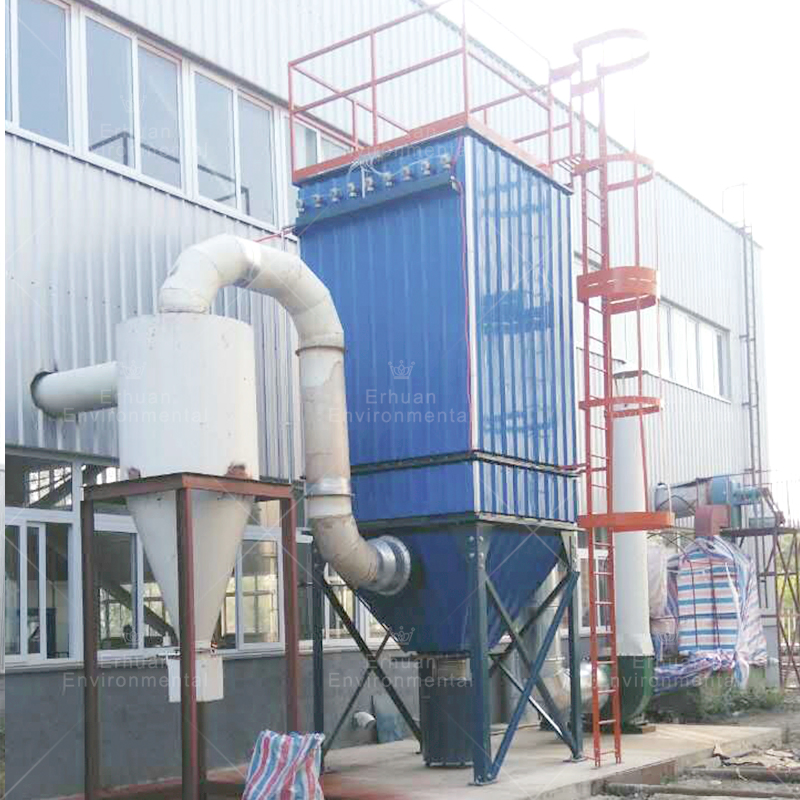

Baghouse Filter Dust Collector System for Sand Blasting

1 / 5

Baghouse Filter Dust Collector System for Sand Blasting

Customization:	Available
Certification:	CE, ISO
Installation Method:	Horizontal

Send Inquiry

Product Description

Basic Information

Model NO.

EHMBT

Operation Type

Automatic

Medium Material

Metal Fiber

Dust Collecting

Half Dry

Type

Magnetic Dust Collector

Filter Bag

Polyester/PTFE/Antistatic

Air Volume

8000m3/H to 20000m3/H

Motor Brand

Simens/Dongyuan/Wanan

Power

11kw/18.5kw/22kw

Safety Platform

Yes

Inspection

Yes

Valve Brand

Goyen/Waverton/Df

Origin

China

Capacity

5000 Units

Packaging & Delivery

Package Size

1303.00cm * 1200.00cm * 1950.00cm

Gross Weight

950.000kg

Product Description

Baghouse Filter, Dust Extractor, Fume Dust Collector, Vacuum Cleaner, Air Filter

Item No.	Model No.	Bag diameter	Bag length	Bag qty	Filter area	Filter speed	Air volume	Size (mm)	Pulse valve	G.W
Item No.	Model No.	MM	MM	pcs	M²	M/MIN	M³/H	LWH	pcs	T
1	EH-MBT54/130*2.2	2200	130	54	48	0.8-2	2304-5760	150321656519	6@DN*25	1.91
2	EH-MBT81/130*2.2	2200	130	81	73	0.8-2	3504-8760	216521656519	9@DN*25	2.65
3	EH-MBT108/130*2.2	2200	130	108	97	0.8-2	4656-11640	278721656819	12@DN*25	2.78
4	EH-MBT162/130*2.2	2200	130	162	145	0.8-2	6960-17400	415021656519	18@DN*25	4.34
5	EH-MBT243/130*2.2	2200	130	243	218	0.8-2	10464-26160	613521656519	27@DN*25	5.67
6	EH-MBT324/130*2.2	2200	130	324	291	0.8-2	13968-34920	812021656519	36@DN*25	7.04
7	EH-MBT405/130*2.2	2200	130	405	364	0.8-2	17472-43680	1010521656519	45@DN*25	8.59

Frequently Asked Questions

What is the price of the dust collector?

The price is based on your requested technical data, such as air volume, application, and configuration. Different models have different prices. Please provide detailed technical data or photos for a specific quote.

What payment methods are accepted?

We accept most payment methods, primarily including T/T, L/C, and Western Union.

How long is the warranty period for your products?

Our officially promised warranty time is one full year after delivery.

What is the estimated delivery time?

Delivery depends on the quantity and complexity of the order. Typically, shipment takes 4 weeks after deposit for standard 380v/50hz/3phase fans. For special electric requirements, delivery is within 6-8 weeks.

Is it possible to have a customized logo on the machine?

Yes, we support customized logo services. Please note that this is an additional service and may involve a small extra fee.

Can you design products according to my specific needs?

Absolutely. We have a dedicated product design team to meet your personal customization and engineering requirements.
